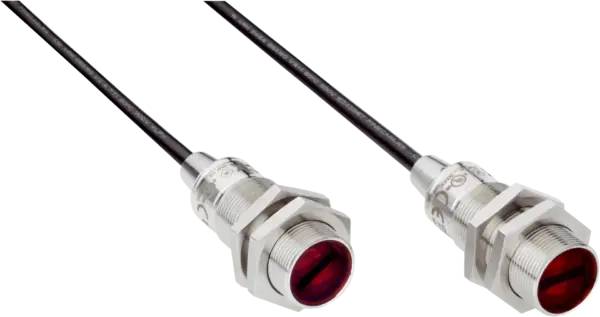

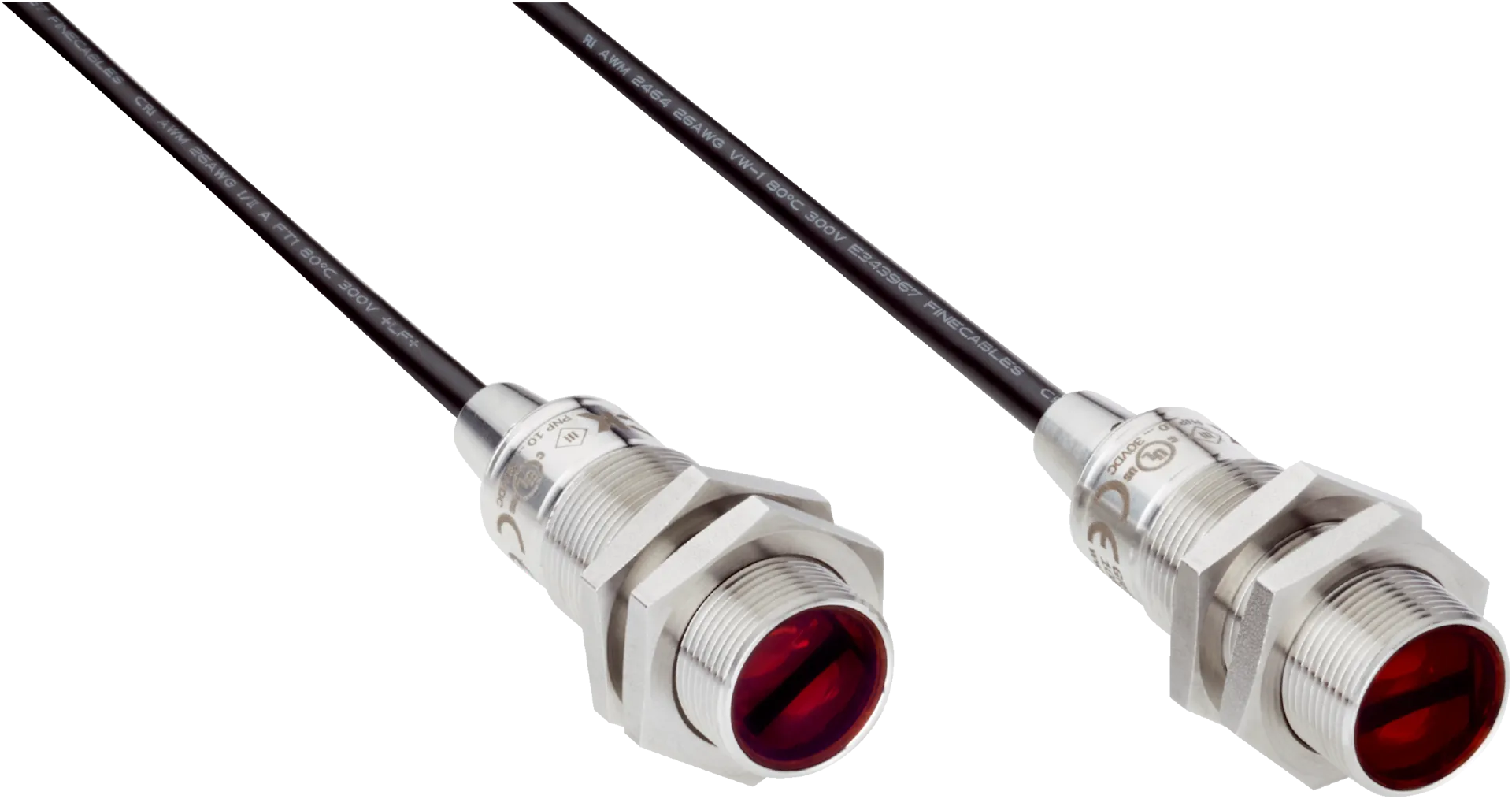

Sick GRSE18S-P1121V
Photoelectric sensors | GR18 | GRSE18S-P1121V | Functional principle: Through-beam photoelectric sensor | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable, 4-wire,…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Photoelectric sensors | GR18 | GRSE18S-P1121V | Functional principle: Through-beam photoelectric sensor | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable, 4-wire, 2 m | Light source: LED | Adjustment: None | Communication interface: – | Included with delivery: Fastening nuts (4Â x)
Specification
Features
| Functional principle | Through-beam photoelectric sensor |
|---|---|
| Dimensions (W x H x D) | 18 mm x 18 mm x 55.9 mm |
| Housing design (light emission) | Cylindrical |
| Housing length | 55.9Â mm |
| Thread length | 31.7Â mm |
| Thread diameter (housing) | M18 x 1 |
| Optical axis | Axial |
| Sensing range max. | 0 m ... 15 m |
| Sensing range | 0 m ... 10 m |
| Type of light | Infrared light |
| Light source | LEDÂ 1) |
| Light spot size (distance) | Ø 420 mm (10 m) |
| Wave length | 850Â nm |
| Adjustment | None |
| LED green | Operating indicatorStatic on: power on |
| LED yellow | Status of received light beamStatic on: object not presentStatic off: object present |
| Special applications | Hygienic and washdown zones |
Mechanics/electronics
| Supply voltage UB | 10Â VÂ DCÂ ... 30Â VÂ DCÂ 1) |
|---|---|
| Ripple | < 5 Vpp 2) |
| Current consumption | 30Â mA |
| Switching output | PNP |
| Output function | Complementary |
| Switching mode | Light/dark switching 3) |
| Signal voltage PNP HIGH/LOW | VS - (≤ 3 V) / approx. 0 V |
| Output current Imax. | ≤ 100 mA 4) |
| Response time | < 500 µs 5) |
| Switching frequency | 1,000 Hz 6) |
| Connection type | Cable, 4-wire, 2 m 7) |
| Cable material | Plastic, PVC |
| Conductor cross section | 0.14 mm² |
| Cable diameter | Ø 4.8 mm |
| Circuit protection | AÂ 8)BÂ 9)DÂ 10) |
| Protection class | III |
| Weight | 190Â g |
| Housing material | Metal, Stainless steel V4A (1.4404, 316L) |
| Optics material | Plastic, PMMA |
| Tightening torque, max. | 90Â Nm |
| Enclosure rating | IP67IP68Â 11)IP69KÂ 12) |
| Items supplied | Fastening nuts (4Â x) |
| Electromagnetic compatibility (EMC) | ENÂ 60947-5-2 |
| Test input | Sender OFF at "Test" 0Â V |
| Ambient operating temperature | –25 °C ... +55 °C 13) |
| Ambient temperature, storage | –30 °C ... +75 °C |
| UL File No. | NRKH.E348498 & NRKH7.E348498 |
| Part number of individual components | 2091201Â GRS18S-D1121V 2091357Â GRE18S-P1111V |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| ECOLAB certificate | ✔ |
| cULus certificate | ✔ |
| Photobiological safety (DIN EN 62471) certificate | ✔ |
Classifications
| ECLASS 5.0 | 27270901 |
|---|---|
| ECLASS 5.1.4 | 27270901 |
| ECLASS 6.0 | 27270901 |
| ECLASS 6.2 | 27270901 |
| ECLASS 7.0 | 27270901 |
| ECLASS 8.0 | 27270901 |
| ECLASS 8.1 | 27270901 |
| ECLASS 9.0 | 27270901 |
| ECLASS 10.0 | 27270901 |
| ECLASS 11.0 | 27270901 |
| ECLASS 12.0 | 27270901 |
| ETIM 5.0 | EC002716 |
| ETIM 6.0 | EC002716 |
| ETIM 7.0 | EC002716 |
| ETIM 8.0 | EC002716 |
| UNSPSC 16.0901 | 39121528 |
