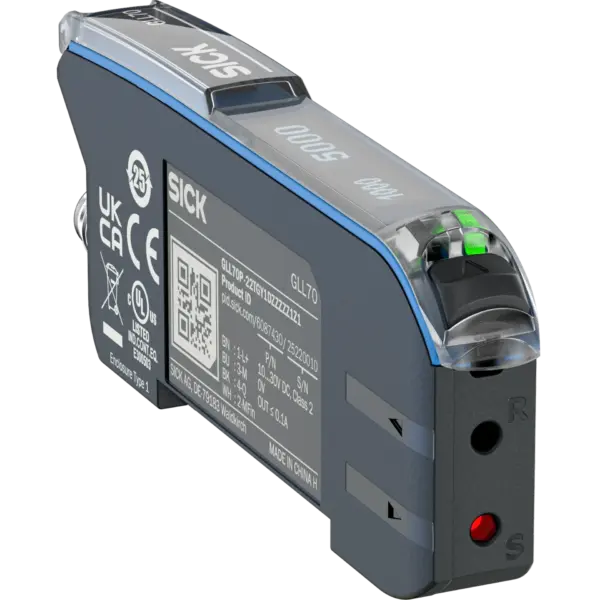

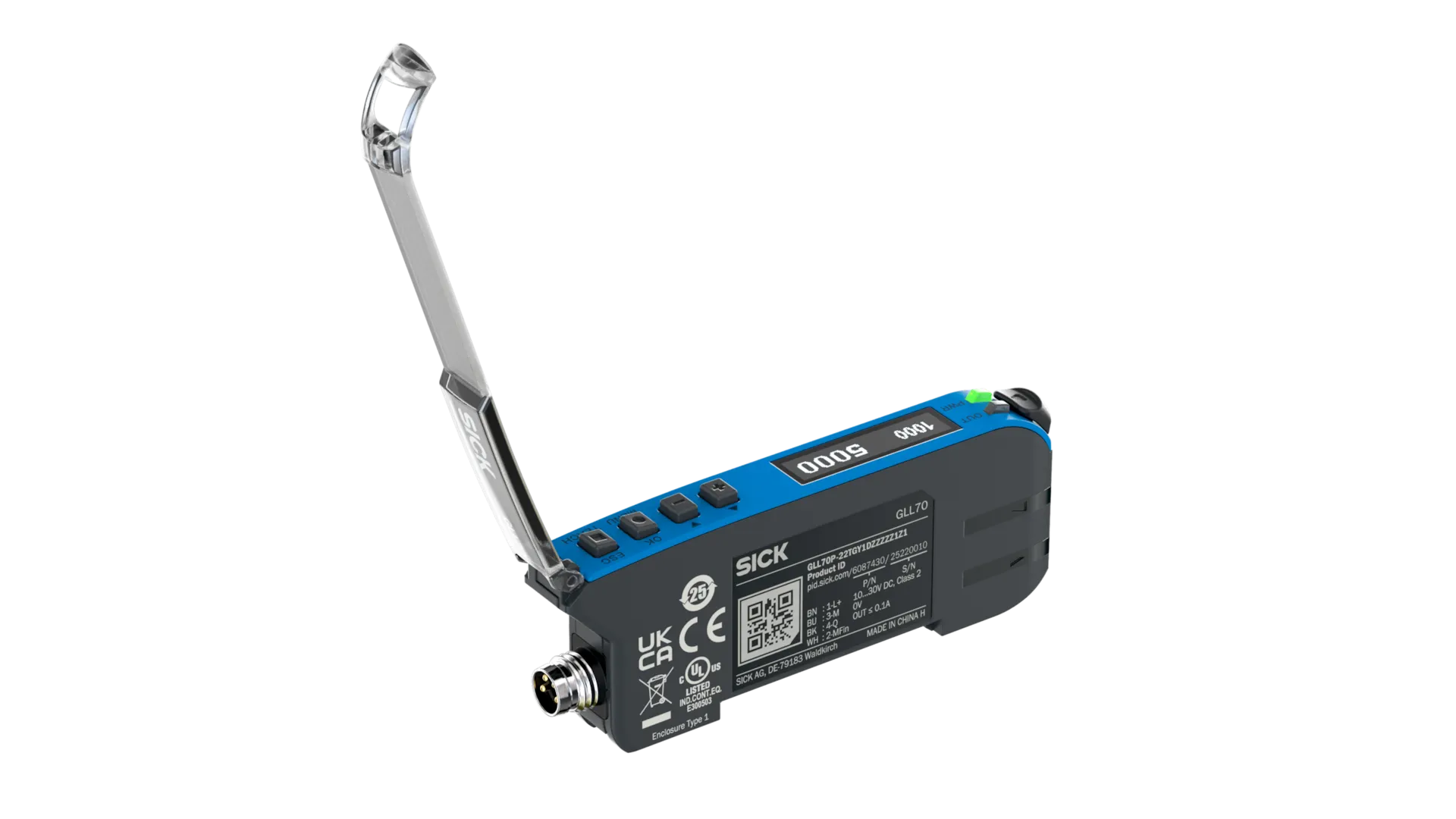

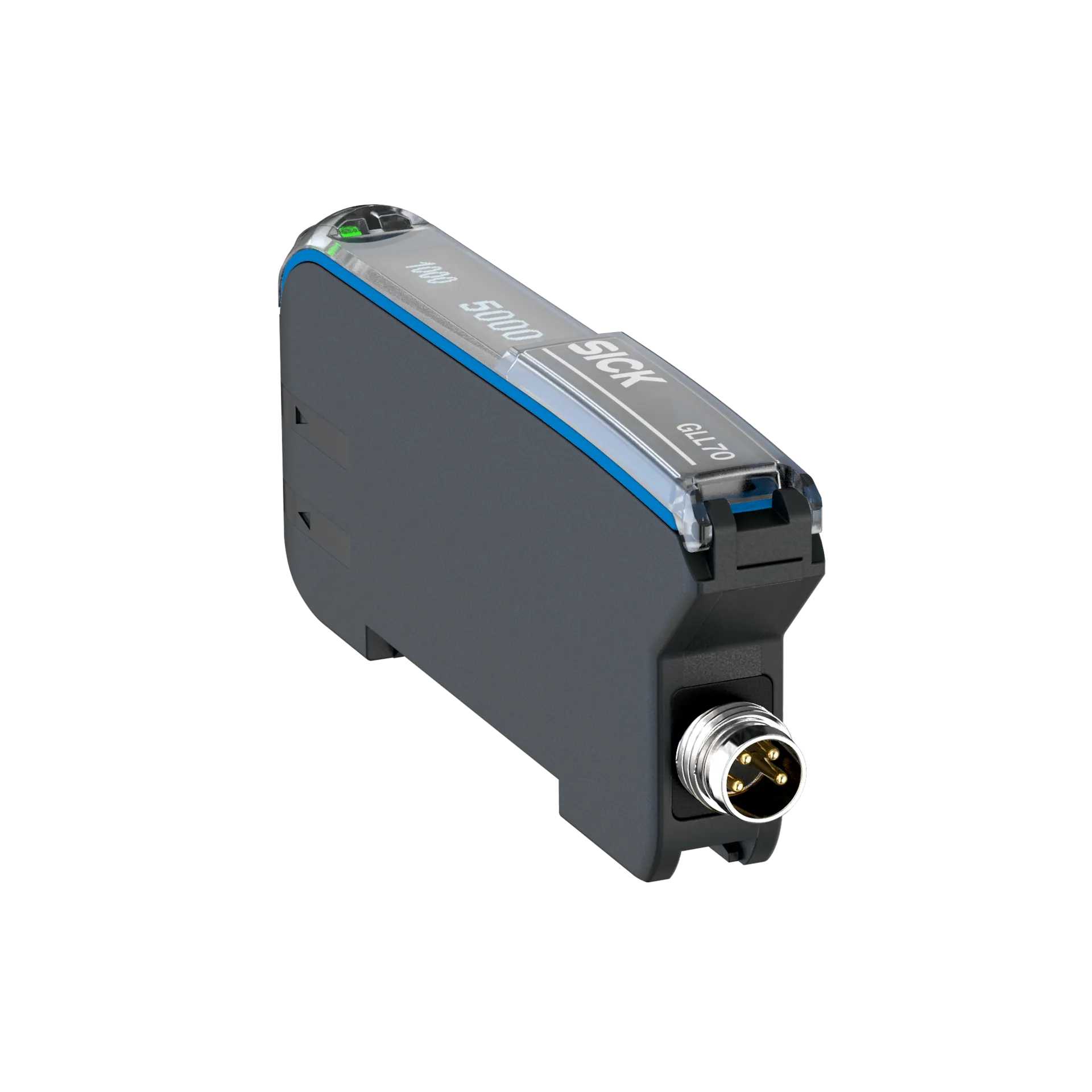

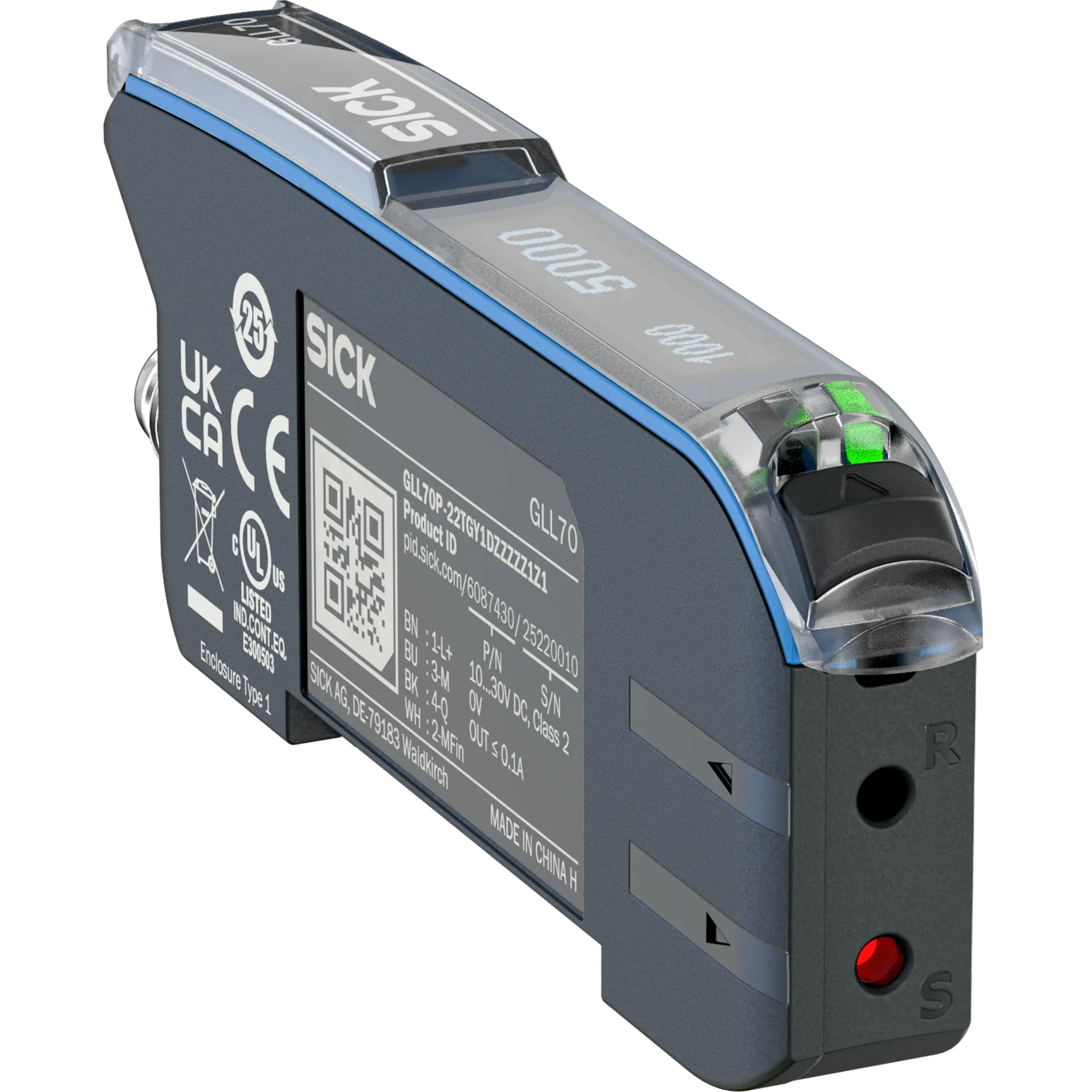

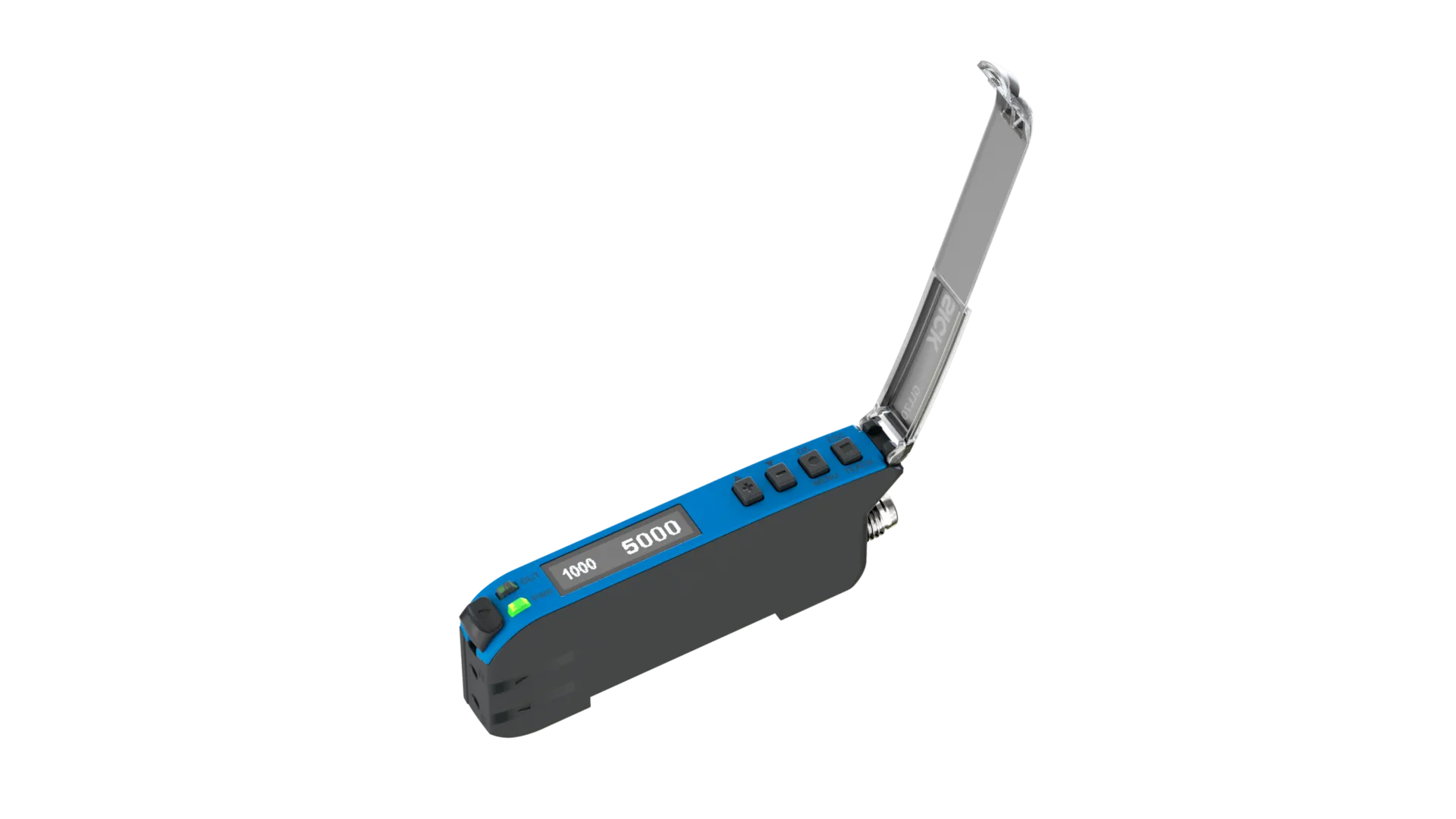

Sick GLL70P-22TGY1DZZZZZ1Z1
Fiber-optic sensors | GLL70 | GLL70P-22TGY1DZZZZZ1Z1 | Device type: Fiber-optic amplifier | Device type detail: Stand-alone | Switching output: PNP, NPN: open collector | Connection type: Male connect…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Fiber-optic sensors | GLL70 | GLL70P-22TGY1DZZZZZ1Z1 | Device type: Fiber-optic amplifier | Device type detail: Stand-alone | Switching output: PNP, NPN: open collector | Connection type: Male connector M8, 4-pin | Type of light: Visible red light | Adjustment: Teach-in button, cable, Menu-controlled | Display: OLED display | Smart Sensor: Enhanced Sensing, efficient communication, Smart Task
Specification
Features
| Device type | Fiber-optic amplifier |
|---|---|
| Device type detail | Stand-alone |
| Functional principle detail | Depending on the optical fiber cable used |
| Sensing range max. | Depending on the optical fiber cable used |
| Light source | LED |
| Type of light | Visible red light |
| Normative reference | ENÂ 62471:2008-09 | IECÂ 62471:2006, modified |
| LED risk group marking | Free group |
| Wave length | 660Â nm |
| Average service life | 100,000 h at Ta = +25 °C |
| Wire/pin | For deactivation of the sender and execution of test logicFor setting the sensing rangeFor synchronizing the output signal with the trigger signal |
| Display + operating buttons | For configuring the sensor parameters |
| LED green | Operating indicatorStatic on: power on |
| LED yellow | Status of digital outputPermanently on: Switching output activePermanently off: Digital output not activeFlashing: Executing teach-in/teach-in error |
| Display | Display of sensor functionsMenu languages. German, English, Chinese, Korean |
Safety-related parameters
| MTTFD | 581.5Â years |
|---|---|
| DCavg | 0% |
| TM (mission time) | 20Â years |
Electronics
| Supply voltage UB | 10Â VÂ DCÂ ... 30Â VÂ DCÂ 1) |
|---|---|
| Ripple | ± 10 % |
| Current consumption | ≤ 50 mA |
| Protection class | III |
| Number | 1 |
| Type | PNPÂ 2) |
| Signal voltage PNP HIGH/LOW | Approx. UB-2.5Â V / 0Â V |
| Signal voltage NPN HIGH/LOW | Approx. UBÂ /Â <Â 2.5Â V |
| Output current Imax. | ≤ 100 mA |
| Circuit protection outputs | Reverse polarity protected |
| Response time | ≤ 50 µs |
| Switching frequency | 10 kHz 3) |
| Time functions | Switch-on delay |
| Delay time | Adjustment via operating buttons, 0 ms ... 30,000 ms |
| Number | 1 |
| Function of pin 4/black (BK) | Digital output, object present → Output Q HIGH |
| Function of pin 4/black (BK) – detail | The pin 4 function of the sensor can be configured |
| Function of pin 2/white (WH) | Teach-in input |
| Function of pin 2/white (WH) – detail | The pin 2 function of the sensor can be configured |
Mechanics
| Housing | Rectangular |
|---|---|
| Dimensions (W x H x D) | 10.7 mm x 33.3 mm x 82.1 mm |
| Connection | Male connector M8, 4-pin |
| Housing | Plastic, PC |
| Protection hood | Plastic, PC |
| Display | Plastic, PET |
| Operating buttons | Plastic, POM |
| Male connector | Metal, nickel-plated brass |
| Weight | Approx. 28 g |
Ambient data
| Enclosure rating | IP50 (ENÂ 60529) |
|---|---|
| Ambient operating temperature | –25 °C ... +55 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
| Typ. Ambient light immunity | Artificial light: ≤ 16,000 lxSunlight: ≤ 67,000 lx |
| Shock resistance | 50Â g, 11Â ms (3Â positive and 3Â negative shocks along X, Y, Z axes, 18Â total shocks (EN60068-2-27)) |
| Vibration resistance | 10 Hz ... 55 Hz (Amplitude 1.5 mm, 3 x 120 min (EN60068-2-6)) |
| Air humidity | 35Â %Â ... 85Â %, relative humidity (no condensation) |
| Electromagnetic compatibility (EMC) | ENÂ 60947-5-2 |
| UL File No. | NRKH.E300503 & NRKH7.E300503 |
Smart Task
| Timer function | DeactivatedSwitch-on delayOff delayON and OFF delayImpulse (one shot)Switch-on delay and pulse |
|---|---|
| Inverter | Yes |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| Photobiological safety (IEC EN 62471) | ✔ |
Classifications
| ECLASS 5.0 | 27270905 |
|---|---|
| ECLASS 5.1.4 | 27270905 |
| ECLASS 6.0 | 27270905 |
| ECLASS 6.2 | 27270905 |
| ECLASS 7.0 | 27270905 |
| ECLASS 8.0 | 27270905 |
| ECLASS 8.1 | 27270905 |
| ECLASS 9.0 | 27270905 |
| ECLASS 10.0 | 27270905 |
| ECLASS 11.0 | 27270905 |
| ECLASS 12.0 | 27270905 |
| ETIM 5.0 | EC002651 |
| ETIM 6.0 | EC002651 |
| ETIM 7.0 | EC002651 |
| ETIM 8.0 | EC002651 |
| UNSPSC 16.0901 | 39121528 |
