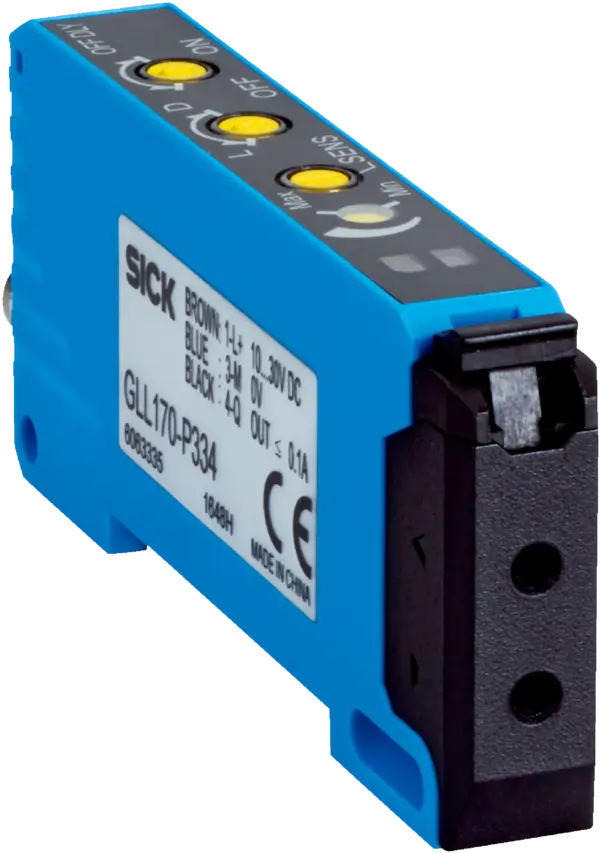

Fiber-optic sensors | GLL170 | GLL170-P334 | Device type: Fiber-optic amplifier | Device type detail: Stand-alone | Switching output: PNP | Connection type: Male connector M8, 4-pin | Type of light: Visible red light | Adjustment: Potentiometer | Display: LED
Specification
Features
| Device type | Fiber-optic amplifier |
|---|---|
| Device type detail | Stand-alone |
| Functional principle detail | Depending on the optical fiber cable used |
| Sensing range max. | Depending on the optical fiber cable used |
| Light source | LEDÂ 1) |
| Type of light | Visible red light |
| Normative reference | ENÂ 62471:2008-09 | IECÂ 62471:2006, modified |
| LED risk group marking | Free group |
| Wave length | 632Â nm |
| Average service life | 100,000 h at Ta = +25 °C |
| Potentiometer | For setting the sensing range/for setting the switching mode/for adjusting the switch-off delay |
| LED green | Operating indicatorStatic on: power onDimmed in the range +/- 10Â % of the switching threshold |
| LED yellow | Status of digital outputPermanently on: Switching output activePermanently off: Digital output not active |
Safety-related parameters
| MTTFD | 760Â years |
|---|---|
| DCavg | 0Â % |
| TM (mission time) | 20Â years |
Electronics
| Supply voltage UB | 10Â VÂ DCÂ ... 30Â VÂ DCÂ 1) |
|---|---|
| Ripple | ≤ 10 % 2) |
| Current consumption | ≤ 30 mA 3) |
| Protection class | III |
| Number | 1 |
| Type | PNPÂ 4) |
| Switching mode | Light/dark switching |
| Signal voltage PNP HIGH/LOW | Approx. UB-1.5Â V / 0Â V |
| Signal voltage NPN HIGH/LOW | Approx. UB / <Â 1.5Â V |
| Output current Imax. | ≤ 100 mA |
| Circuit protection outputs | Reverse polarity protected |
| Response time | ≤ 250 µs |
| Switching frequency | 2Â kHz |
| Time functions | Without time delay, off delay |
| Delay time | Selectable via rotary switch, 0 ms ... 40 ms |
| Function of pin 4/black (BK) | Digital output, received light → Output Q1 HIGH |
| Function of pin 4/black (BK) – detail | The pin 4 function of the sensor can be configured |
Mechanics
| Housing | Rectangular |
|---|---|
| Dimensions (W x H x D) | 10 mm x 31.7 mm x 72.5 mm |
| Connection | Male connector M8, 4-pin |
| Conductor size | 0.2 mm² |
| Cable diameter | Ø 3.8 mm |
| Housing | Plastic, PC/POM |
| Cable | Plastic, PVC |
| Weight | 19Â g |
| Maximum tightening torque of the fixing screws | 0.5Â Nm |
Ambient data
| Enclosure rating | IP66 (ENÂ 60529) |
|---|---|
| Ambient operating temperature | –25 °C ... +55 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
| Typ. Ambient light immunity | Artificial light: ≤ 5,000 lxSunlight: ≤ 60,000 lx |
| Shock resistance | 50Â g, 11Â ms (3Â positive and 3Â negative shocks along X, Y, Z axes, 18Â total shocks (EN60068-2-27)) |
| Vibration resistance | 10 Hz ... 55 Hz (Amplitude 1 mm, 3 x 30 min (EN60068-2-6)) |
| Air humidity | 35Â %Â ... 95Â %, relative humidity (no condensation) |
| Electromagnetic compatibility (EMC) | ENÂ 60947-5-2 |
| UL File No. | NRKH2.E300503 & NRKH8.E300503 |
| RoHS certificate | ✔ |
Smart Task
| Timer function | DeactivatedSwitch-on delayOff delayImpulse (one shot) |
|---|
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cRUus certificate | ✔ |
Classifications
| ECLASS 5.0 | 27270905 |
|---|---|
| ECLASS 5.1.4 | 27270905 |
| ECLASS 6.0 | 27270905 |
| ECLASS 6.2 | 27270905 |
| ECLASS 7.0 | 27270905 |
| ECLASS 8.0 | 27270905 |
| ECLASS 8.1 | 27270905 |
| ECLASS 9.0 | 27270905 |
| ECLASS 10.0 | 27270905 |
| ECLASS 11.0 | 27270905 |
| ECLASS 12.0 | 27270905 |
| ETIM 5.0 | EC002651 |
| ETIM 6.0 | EC002651 |
| ETIM 7.0 | EC002651 |
| ETIM 8.0 | EC002651 |
| UNSPSC 16.0901 | 39121528 |
