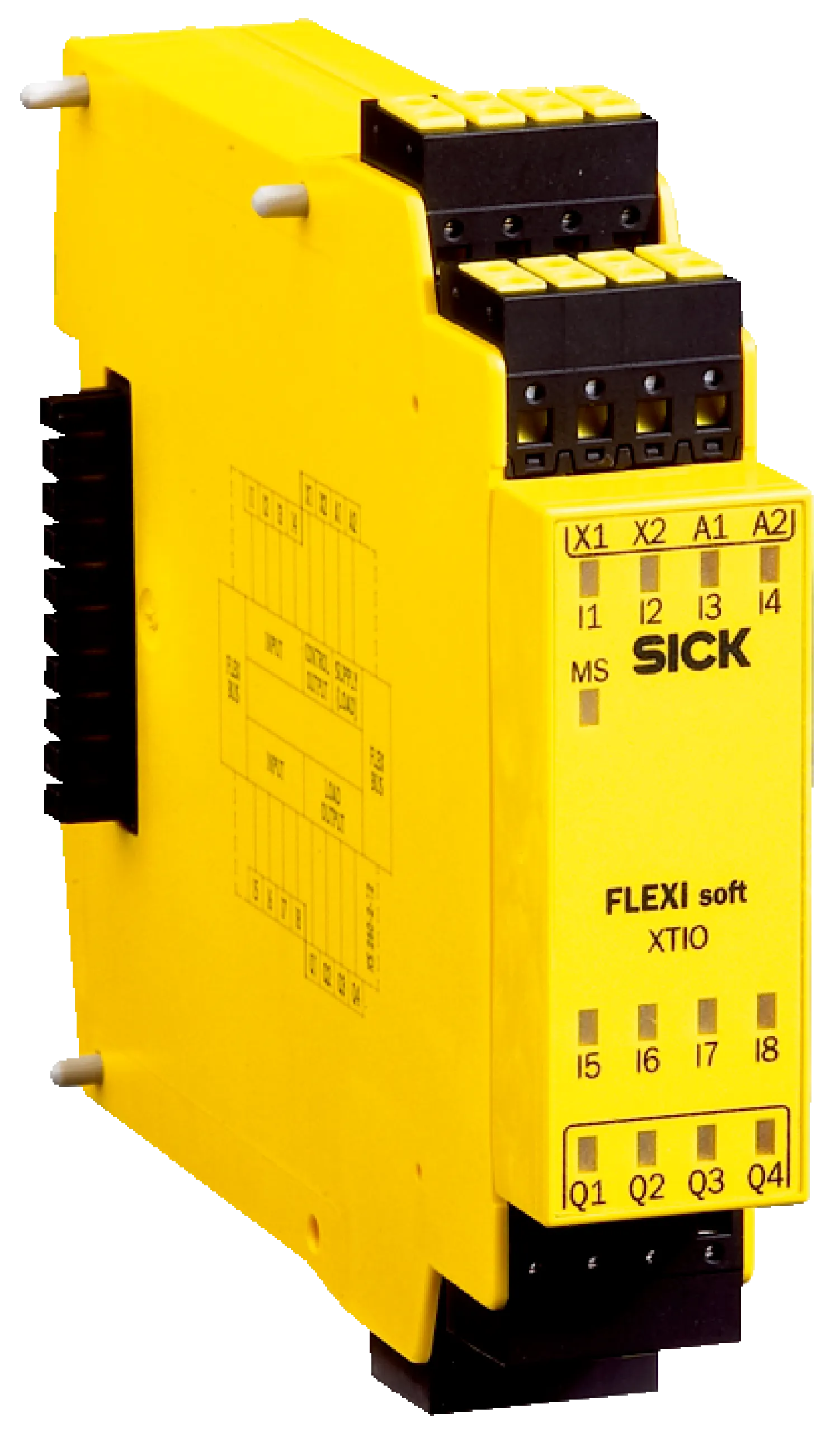

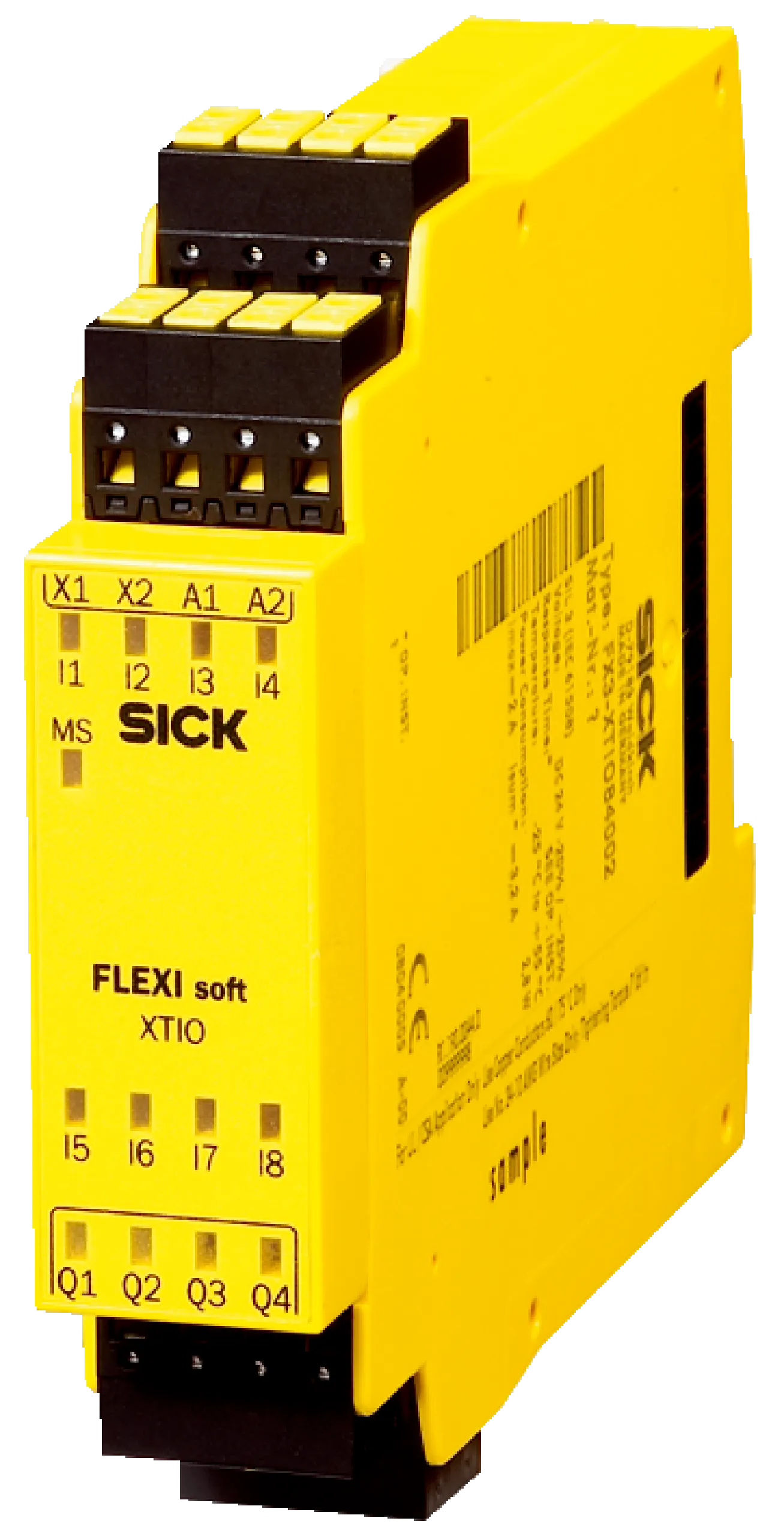

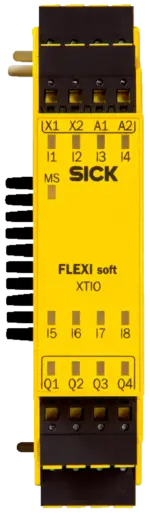

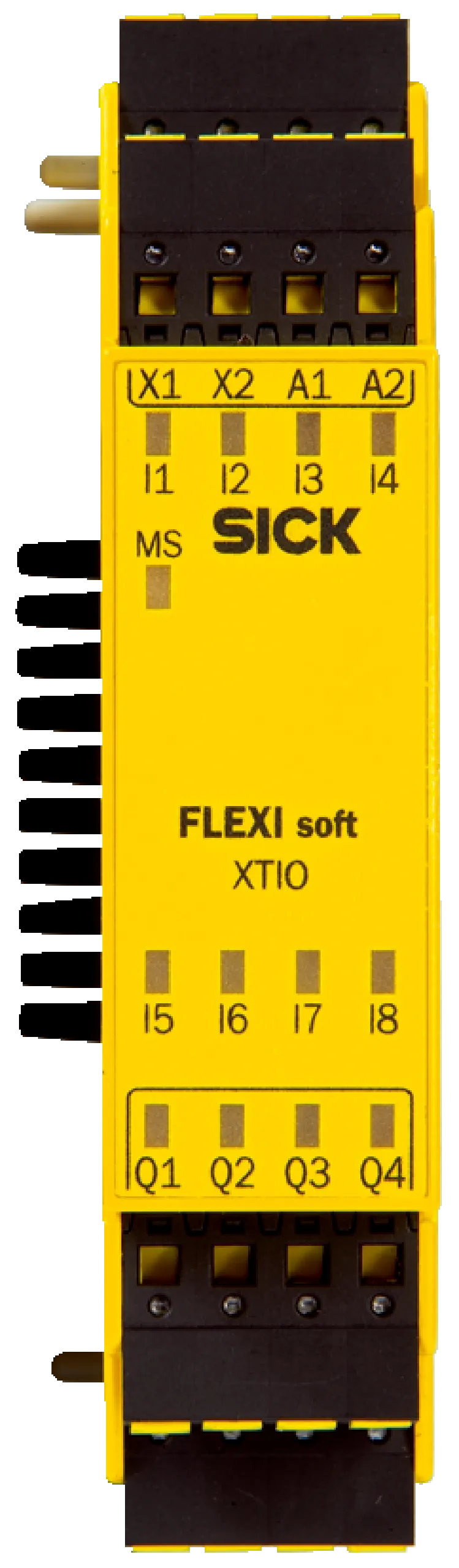

Sick FX3-XTIO84002
Safety controllers | Flexi Soft | FX3-XTIO84002 | Module: I/O module | Safe inputs: 8 | Safe outputs: 4 | Flexi Loop-compatible: yes | Connection type: Plug-in spring terminals | Protective coating fo…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safety controllers | Flexi Soft | FX3-XTIO84002 | Module: I/O module | Safe inputs: 8 | Safe outputs: 4 | Flexi Loop-compatible: yes | Connection type: Plug-in spring terminals | Protective coating for more challenging ambient conditions: no
Specification
Features
| Module | I/O module |
|---|---|
| Configuration method | Via software (Flexi Soft Designer, Safe EFI-pro System: Safety Designer) |
Safety-related parameters
| Safety integrity level | SIL 3Â (IECÂ 61508) |
|---|---|
| Category | Category 4Â (ENÂ ISOÂ 13849) |
| Performance level | PL e (EN ISO 13849) |
| PFHD (mean probability of a dangerous failure per hour) | 4.8 x 10-9 (EN ISO 13849) 1)0.9 x 10-9 (EN ISO 13849) 2) |
| TM (mission time) | 20Â years (ENÂ ISOÂ 13849) |
Functions
| Flexi Loop-compatible | ✔ |
|---|---|
| Fast shut-off | ✔ |
| Fast shut-off time | 8Â ms |
Interfaces
| Number of safety inputs | 8 |
|---|---|
| Number of test outputs | 2 |
| Number of safe outputs | 4 |
| Connection type | Plug-in spring terminals |
Electronics
| Protection class | III (ENÂ 61140) |
|---|---|
| Voltage supply | Via FLEXBUS+ |
| Internal power consumption | ≤ 2.2 W 1) |
| Input voltage HIGH | 13Â VÂ DCÂ ... 30Â VÂ DC |
| Input voltage LOW | –5 V DC ... 5 V DC |
| Input current HIGH | 2.4Â mAÂ ... 3.8Â mA |
| Input current LOW | –2.5 mA ... 2.1 mA |
| Voltage supply | Via FLEXBUS+ |
| Type of output | PNP semiconductors, short-circuit protected |
| Test pulse generator | 2 |
| Output voltage HIGH | 15Â VÂ DCÂ ... 30Â VÂ DC |
| Output current | ≤ 120 mA 2) |
| Voltage supply | Via A1, A2 |
| Supply voltage | 24Â VÂ DC (16.8Â VÂ DCÂ ... 30Â VÂ DC) |
| Type of supply voltage | PELV or SELVÂ 3) |
| Type of output | PNP semiconductors, short-circuit protected |
| Output voltage HIGH | 16Â VÂ DCÂ ... 30Â VÂ DC |
| Output current | ≤ 2 A |
Mechanics
| Dimensions (W x H x D) | 22.5 mm x 96.5 mm x 120.6 mm |
|---|---|
| Weight | 164 g (± 5 %) |
Ambient data
| Enclosure rating | IP20 (ENÂ 60529) |
|---|---|
| Ambient operating temperature | –25 °C ... +55 °C |
| Storage temperature | –25 °C ... +70 °C |
| Air humidity | ≤ 95 %, Non-condensing |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| China RoHS | ✔ |
| CCC certificate | ✔ |
| UK-Type-Examination approval | ✔ |
| cULus certificate | ✔ |
| KC Mark certificate | ✔ |
| cTUVus certificate | ✔ |
| S Mark certificate | ✔ |
| EC-Type-Examination approval | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ |
Classifications
| ECLASS 5.0 | 27243001 |
|---|---|
| ECLASS 5.1.4 | 27243101 |
| ECLASS 6.0 | 27243101 |
| ECLASS 6.2 | 27243101 |
| ECLASS 7.0 | 27243101 |
| ECLASS 8.0 | 27243101 |
| ECLASS 8.1 | 27243101 |
| ECLASS 9.0 | 27243101 |
| ECLASS 10.0 | 27243101 |
| ECLASS 11.0 | 27243101 |
| ECLASS 12.0 | 27243101 |
| ETIM 5.0 | EC001449 |
| ETIM 6.0 | EC001449 |
| ETIM 7.0 | EC001449 |
| ETIM 8.0 | EC001449 |
| UNSPSC 16.0901 | 32151705 |
