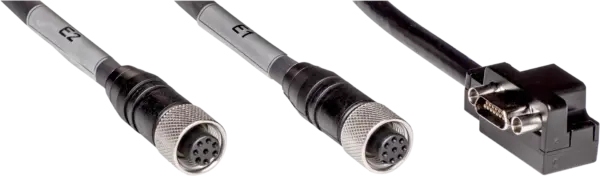

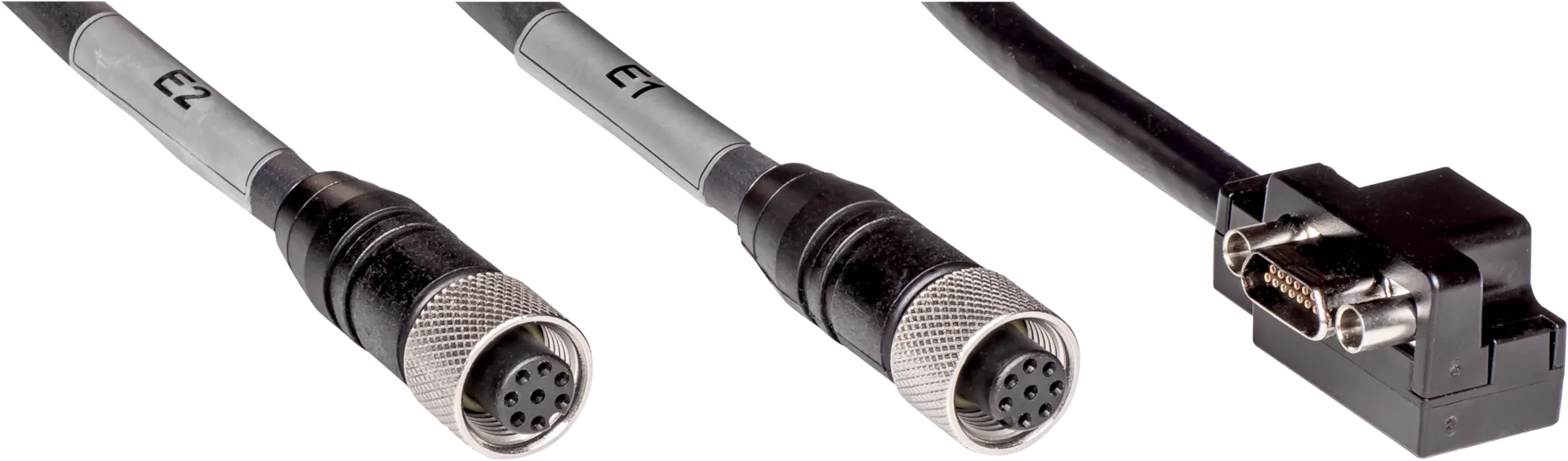

Sick FX3-MOC Y-CABLE
Connectors and cables | Y- and T-splitters | FX3-MOC Y-CABLE | Connection type head A: Male connector, D-Sub, 15-pin, Form A | Connection type head B: Female connector, M12, 8-pin, A-coded | Connectio…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Connectors and cables | Y- and T-splitters | FX3-MOC Y-CABLE | Connection type head A: Male connector, D-Sub, 15-pin, Form A | Connection type head B: Female connector, M12, 8-pin, A-coded | Connection type head C: Female connector, M12, 8-pin, A-coded | Cable: 2.4 m, for details see dimensional drawings, PVC | Description: Shielded
Specification
Technical specifications
| Accessory family | Other adapters |
|---|---|
| Connection type head A | Male connector, D-Sub, 15-pin, Form A |
| Connection type head B | Female connector, M12, 8-pin, A-coded |
| Connection type head C | Female connector, M12, 8-pin, A-coded |
| Locking plug connector | Screw connection |
| Connecting cable | 2.4Â m, for details see dimensional drawings, PVC |
| Cable material | PVC |
| Cable color | Black |
| Conductor cross section | AWG28, AWG26 |
| Cable diameter | 6.6Â mm, 6.2Â mm |
| Housing material | Plastic/metal |
| Housing color | Black |
| Locking nut material | Steel |
| Width across flats | Slot |
| Shielding | Shielded |
| Flexible use | > 12Â x cable diameter |
| Stationary position | > 5Â x cable diameter |
| Operating temperature | –25 °C ... +80 °C, stationary position–10 °C ... +80 °C, flexible use |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
Classifications
| ECLASS 5.0 | 19030312 |
|---|---|
| ECLASS 5.1.4 | 19030312 |
| ECLASS 6.0 | 27060304 |
| ECLASS 6.2 | 27060304 |
| ECLASS 7.0 | 27060304 |
| ECLASS 8.0 | 27060304 |
| ECLASS 8.1 | 27060304 |
| ECLASS 9.0 | 27060304 |
| ECLASS 10.0 | 27060304 |
| ECLASS 11.0 | 27060304 |
| ECLASS 12.0 | 27060304 |
| ETIM 5.0 | EC000830 |
| ETIM 6.0 | EC000830 |
| ETIM 7.0 | EC003249 |
| ETIM 8.0 | EC003249 |
| UNSPSC 16.0901 | 26121604 |
