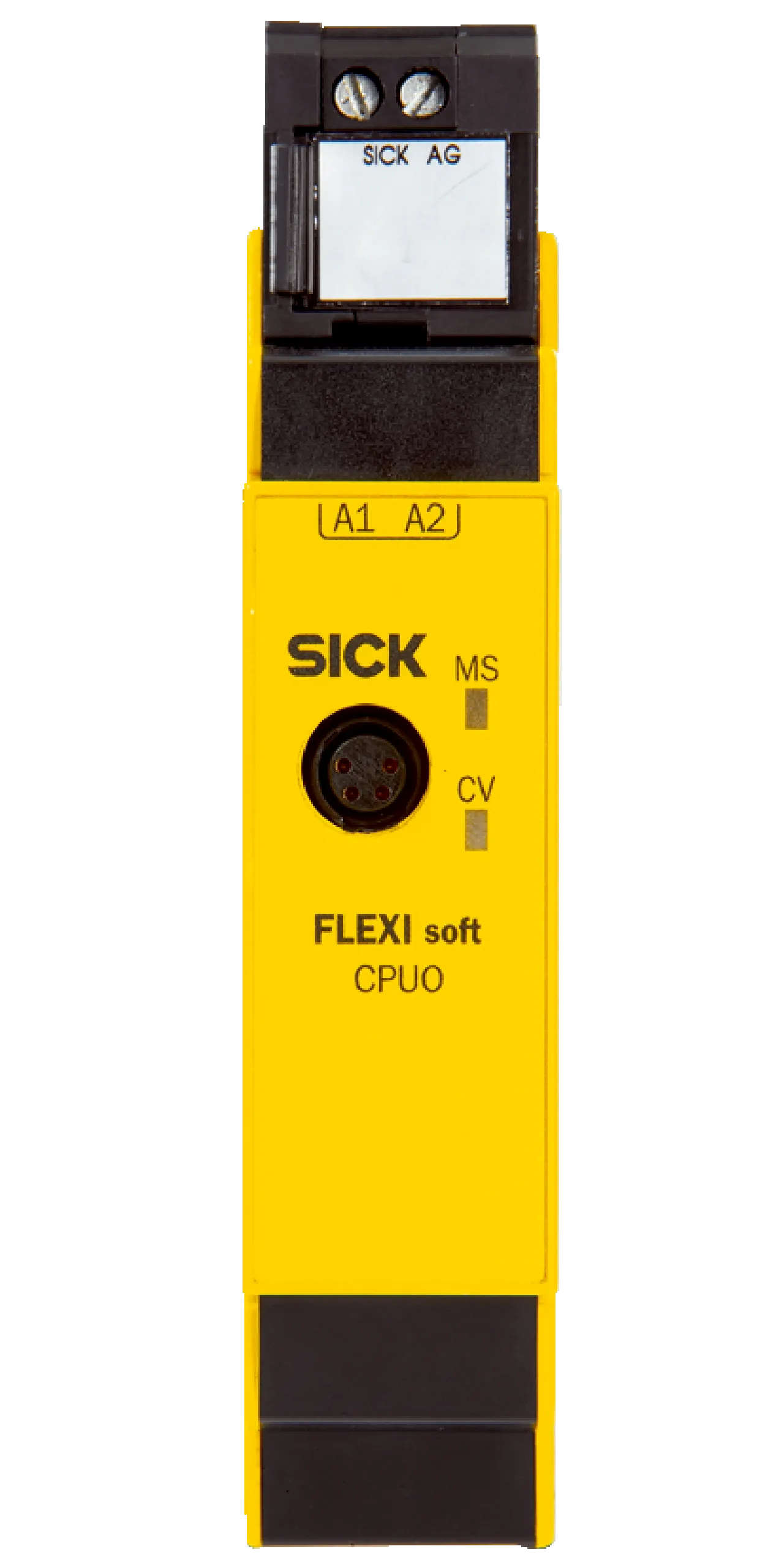

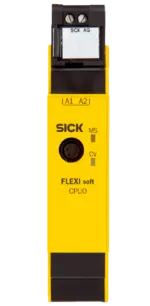

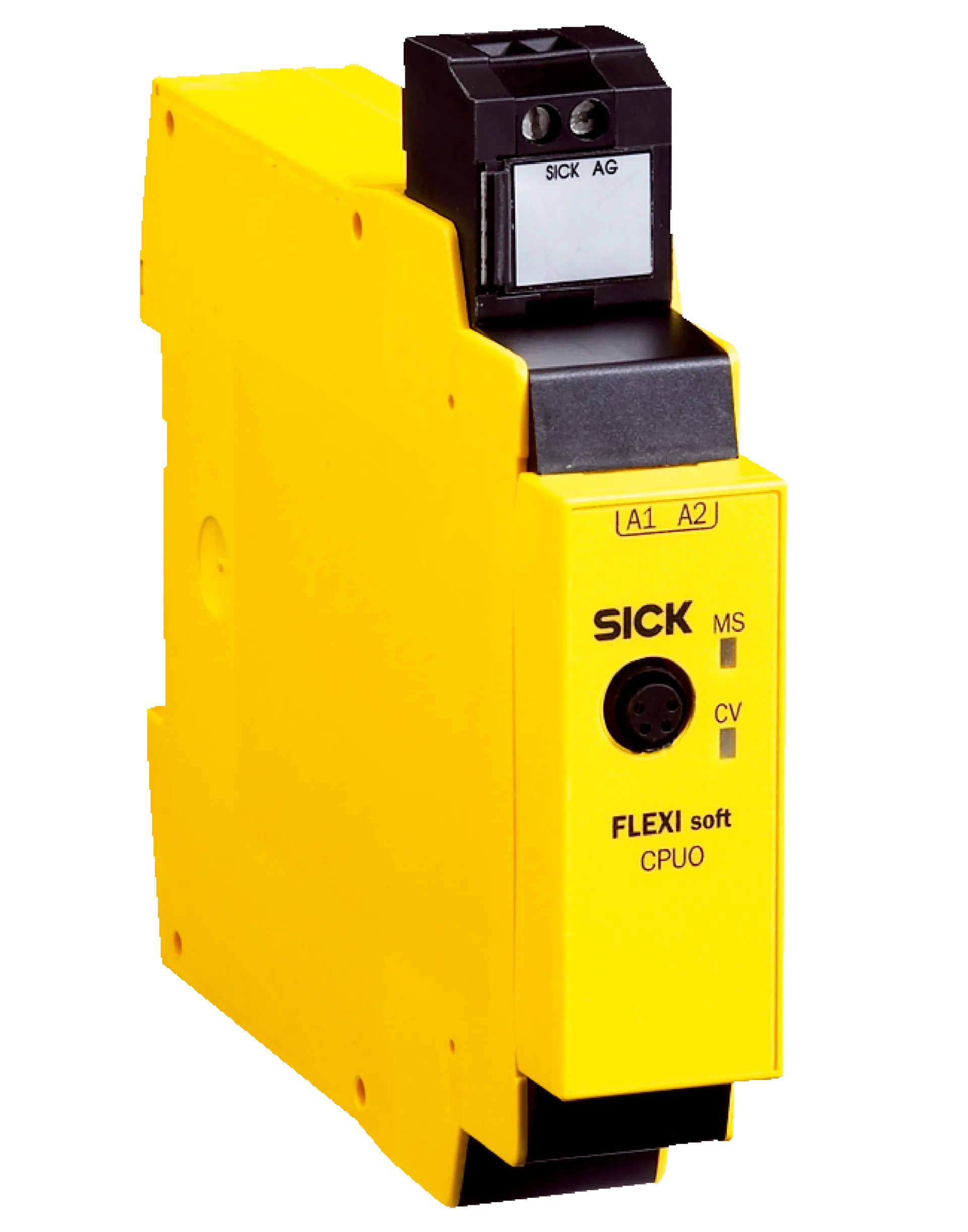

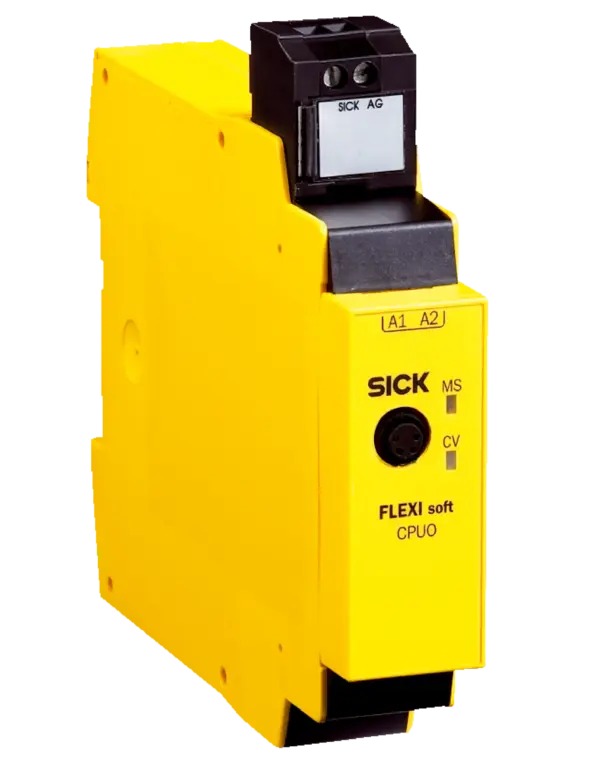

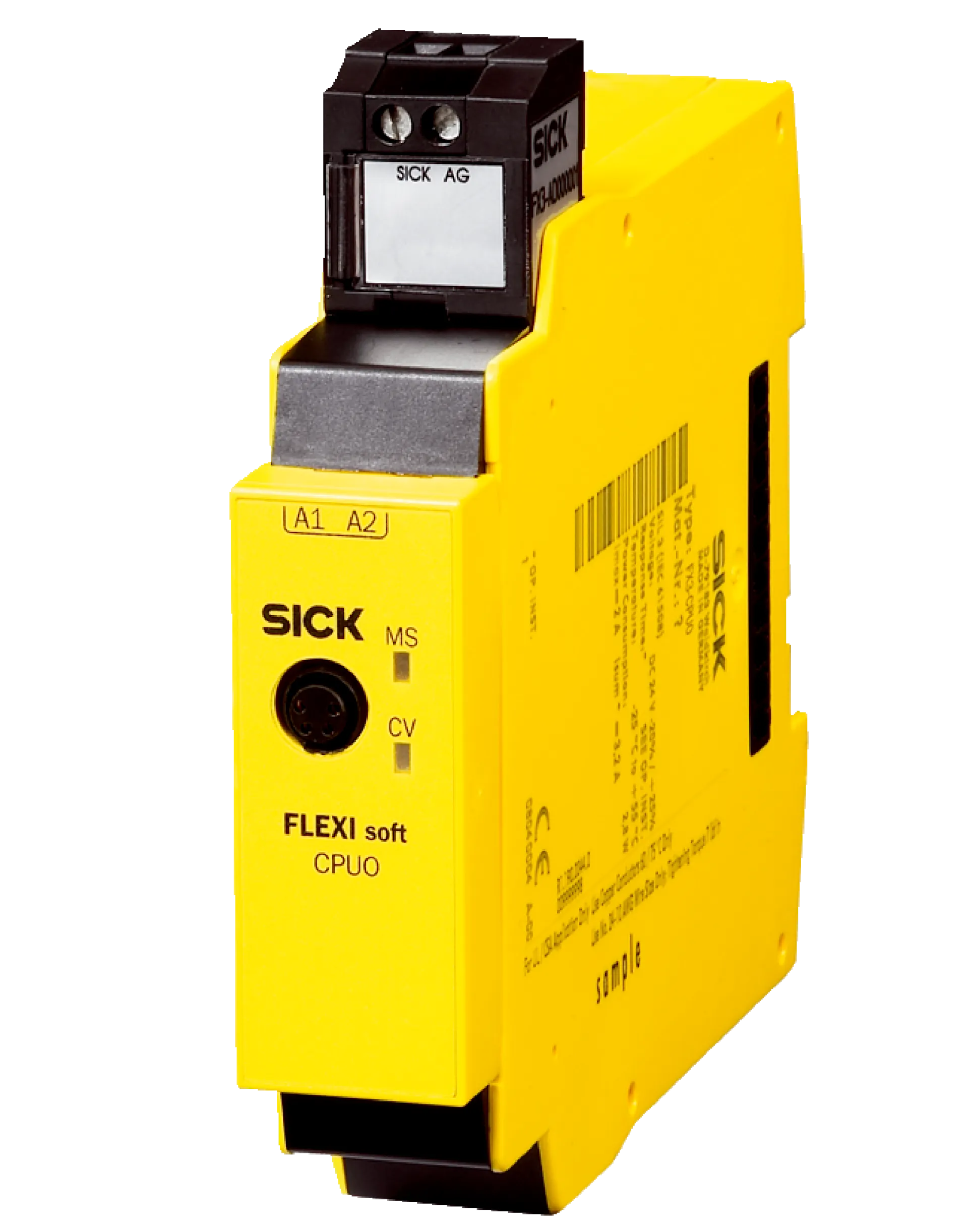

Sick FX3-CPU000000
Safety controllers | Flexi Soft | FX3-CPU000000 | Module: Main module | Configuration and diagnostics interface: RS-232 (M8 female connector, 4-pin) | Enhanced sensor functions: – | Controller network…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safety controllers | Flexi Soft | FX3-CPU000000 | Module: Main module | Configuration and diagnostics interface: RS-232 (M8 female connector, 4-pin) | Enhanced sensor functions: – | Controller networking: – | Connection type: Plug-in spring terminals | Protective coating for more challenging ambient conditions: no | Items supplied: Main module without system plug, safety instruction, Operating instructions for download
Specification
Features
| Module | Main module |
|---|---|
| Configuration method | Via software (Flexi Soft Designer, Safe EFI-pro System: Safety Designer) |
| Note | The system plug has to be ordered separately. For details, see âAccessoriesâ. |
| Items supplied | Main module without system plugSafety instructionOperating instructions for download |
Safety-related parameters
| Safety integrity level | SIL 3Â (IECÂ 61508) |
|---|---|
| Category | Category 4Â (ENÂ ISOÂ 13849) |
| Performance level | PL e (EN ISO 13849) |
| PFHD (mean probability of a dangerous failure per hour) | 1.07 x 10-9 (EN ISO 13849) |
| TM (mission time) | 20Â years (ENÂ ISOÂ 13849) |
Interfaces
| System connection | System plug 1) |
|---|---|
| Number of EFI interfaces | 0 |
| Connection type | Plug-in spring terminals |
| Configuration and diagnostics interface | RS-232 (M8 female connector, 4-pin) |
Electronics
| Protection class | III (ENÂ 61140) |
|---|---|
| Type of voltage supply | PELV or SELVÂ 1) |
| Supply voltage VS | 24Â VÂ DC (16.8Â VÂ DCÂ ... 30Â VÂ DC) |
| Internal power consumption | ⤠2.5 W |
| Overvoltage category | II (ENÂ 61131-2) |
| Switch-on time | ⤠18 s |
Mechanics
| Dimensions (W x H x D) | 22.5 mm x 96.5 mm x 120.6 mm |
|---|---|
| Weight | 111 g (± 5 %) |
Ambient data
| Enclosure rating | IP20 (ENÂ 60529) |
|---|---|
| Ambient operating temperature | â25 °C ... +55 °C |
| Storage temperature | â25 °C ... +70 °C |
| Air humidity | ⤠95 %, Non-condensing |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| China RoHS | â |
| CCC certificate | â |
| UK-Type-Examination approval | â |
| cULus certificate | â |
| KC Mark certificate | â |
| cTUVus certificate | â |
| S Mark certificate | â |
| EC-Type-Examination approval | â |
Classifications
| ECLASS 5.0 | 27243001 |
|---|---|
| ECLASS 5.1.4 | 27243101 |
| ECLASS 6.0 | 27243101 |
| ECLASS 6.2 | 27243101 |
| ECLASS 7.0 | 27243101 |
| ECLASS 8.0 | 27243101 |
| ECLASS 8.1 | 27243101 |
| ECLASS 9.0 | 27243101 |
| ECLASS 10.0 | 27243101 |
| ECLASS 11.0 | 27243101 |
| ECLASS 12.0 | 27243101 |
| ETIM 5.0 | EC001449 |
| ETIM 6.0 | EC001449 |
| ETIM 7.0 | EC001449 |
| ETIM 8.0 | EC001449 |
| UNSPSC 16.0901 | 32151705 |
