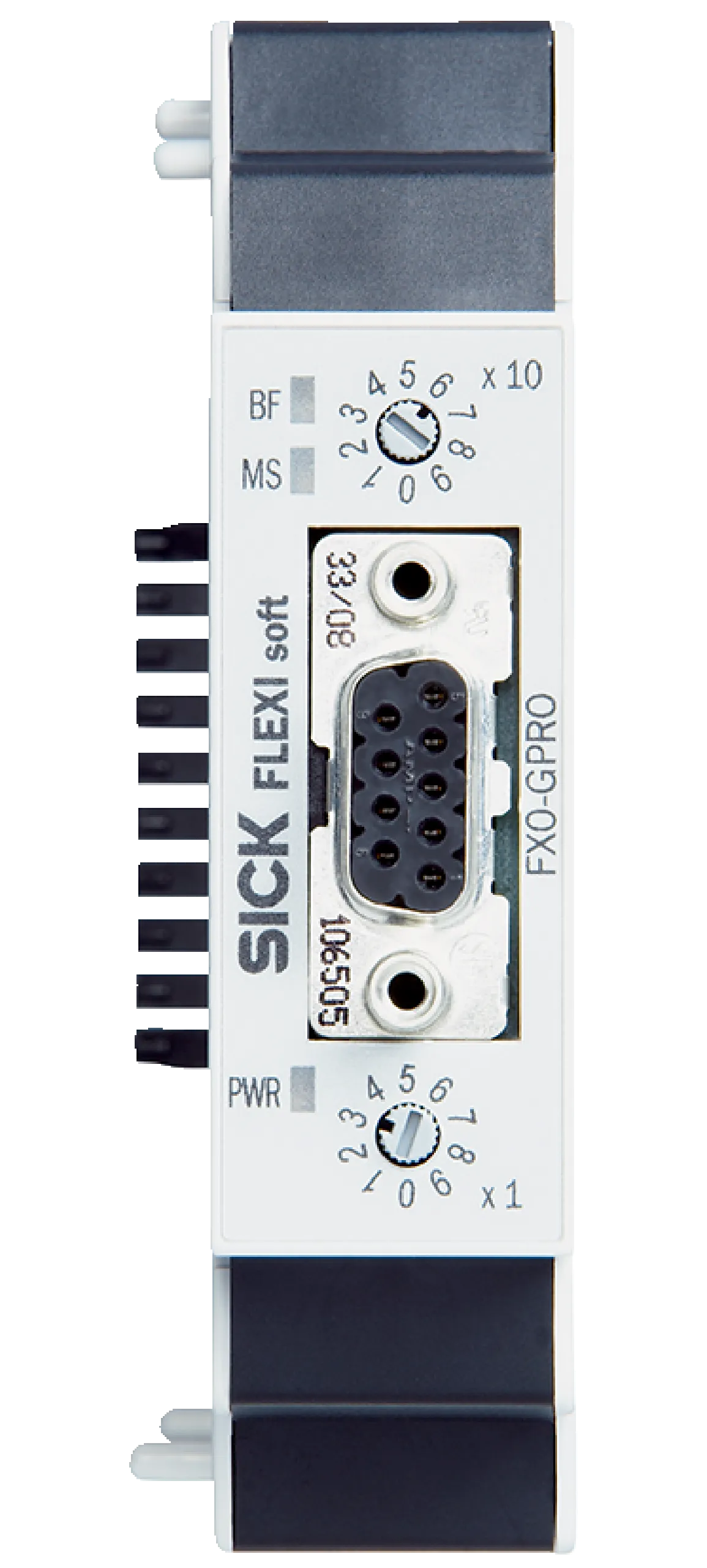

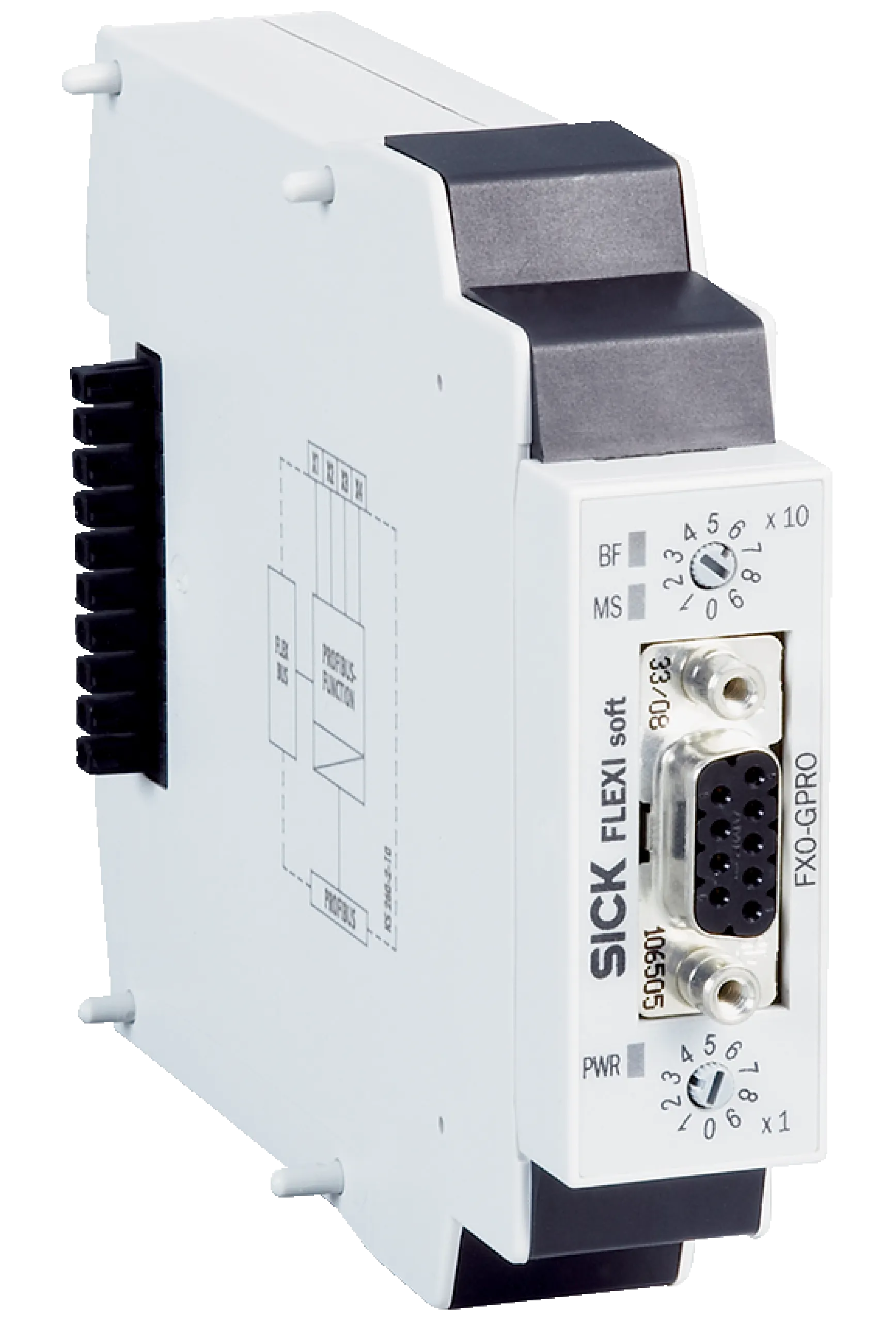

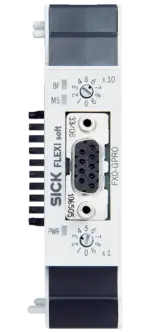

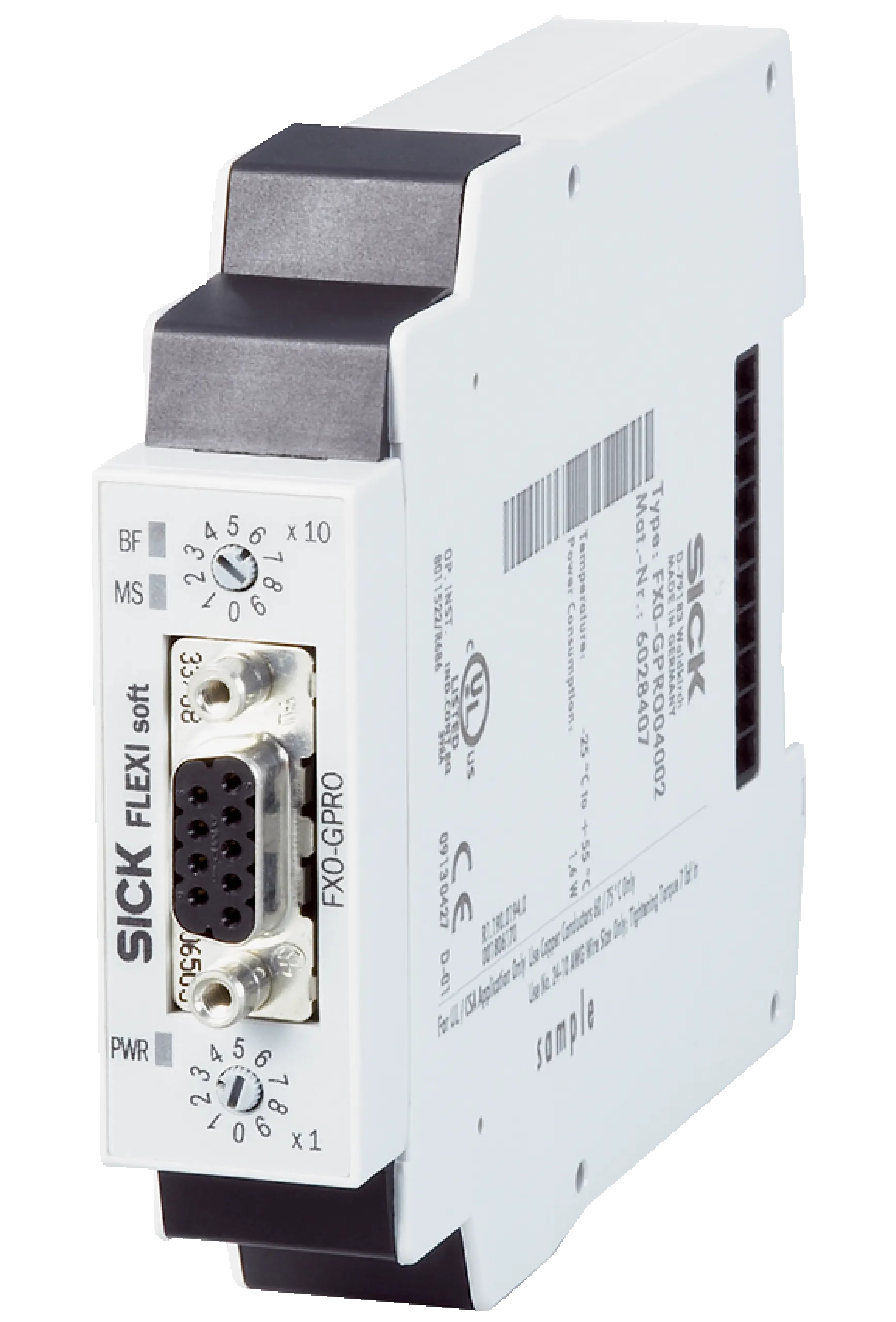

Sick FX0-GPRO00010
Safety controllers | Flexi Soft | FX0-GPRO00010 | Module: Gateway | Fieldbus, industrial network: PROFIBUS DP | Connection type: 1 x female connector, D-Sub, 9-pin | Protective coating for more challe…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safety controllers | Flexi Soft | FX0-GPRO00010 | Module: Gateway | Fieldbus, industrial network: PROFIBUS DP | Connection type: 1 x female connector, D-Sub, 9-pin | Protective coating for more challenging ambient conditions: yes
Specification
Features
| Module | Gateway |
|---|---|
| Fieldbus, industrial network | PROFIBUS DP |
| Configuration method | Via software (Flexi Soft Designer) |
| Specialty | Protective coating for more challenging ambient conditions (e.g., resistance to sulfur). |
Interfaces
| Fieldbus, industrial network | PROFIBUS DP |
|---|---|
| Data transmission rate | 12,000 kbit/s 1) |
| Connection type | 1Â x female connector, D-Sub, 9-pin |
Electronics
| Protection class | III (ENÂ 61140) |
|---|---|
| Voltage supply | Via FLEXBUS+ |
| Internal power consumption | ⤠1.6 W 1) |
Mechanics
| Dimensions (W x H x D) | 22.5 mm x 96.5 mm x 126 mm |
|---|---|
| Weight | 150 g (± 10 %) |
Ambient data
| Enclosure rating | IP20 (ENÂ 60529) |
|---|---|
| Ambient operating temperature | â25 °C ... +55 °C |
| Storage temperature | â25 °C ... +70 °C |
| Air humidity | ⤠95 %, Non-condensing |
| Single gas resistance (sulfur dioxide) | 25 ppm, 21 days, 25 °C (IEC 60068-2-42 - Kc) |
| Mixed gas resistance | 100 ppb - H2S2000 ppb - NO2100 ppb - CI22,000 ppb - SO2, 21 days, 30 °C (IEC 60068-2-60 Ke) |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| China RoHS | â |
| CCC certificate | â |
| cULus certificate | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27243001 |
|---|---|
| ECLASS 5.1.4 | 27243101 |
| ECLASS 6.0 | 27243101 |
| ECLASS 6.2 | 27243101 |
| ECLASS 7.0 | 27243101 |
| ECLASS 8.0 | 27243101 |
| ECLASS 8.1 | 27243101 |
| ECLASS 9.0 | 27243101 |
| ECLASS 10.0 | 27243101 |
| ECLASS 11.0 | 27243101 |
| ECLASS 12.0 | 27243101 |
| ETIM 5.0 | EC001449 |
| ETIM 6.0 | EC001449 |
| ETIM 7.0 | EC001449 |
| ETIM 8.0 | EC001449 |
| UNSPSC 16.0901 | 32151705 |
