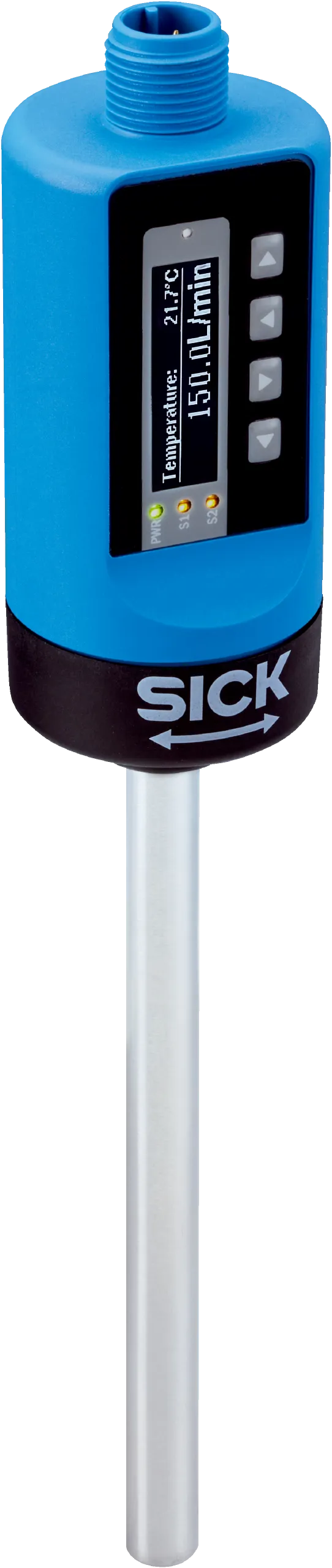

Sick FTS-I200F14A
Flow sensors | T-Easic FTS | FTS-I200F14A | Wetted parts: Stainless steel 1.4404 (Ra ≤ 0,8 µm) | Process connection: Without process connection (adapter needed for installation) | Output signal: 2 pus…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Flow sensors | T-Easic FTS | FTS-I200F14A | Wetted parts: Stainless steel 1.4404 (Ra ≤ 0,8 µm) | Process connection: Without process connection (adapter needed for installation) | Output signal: 2 push-pull digital outputs (Q2 configurable for IO-Link; Q2 configurable as pulse output / digital input) for flow and temperature | Process temperature: –40 °C … +150 °C | Process pressure: –1 bar … 100 bar, 40 bar (with SICK T-connector DN15, DN25), 25 bar (with SICK T-connector DN40), 20 bar (with SICK T-connector DN50) | Probe length: 200 mm
Specification
Features
| Measurement principle | Calorimetric measurement process |
|---|---|
| Medium | Water and oil-based liquids |
| Pipe diameters | â¥Â 25 mm 1) |
| Process temperature | â40 °C ... +150 °C 3) |
| Process pressure | â1 bar ... 100 bar, 40 bar (with SICK T-connector DN15, DN25), 25 bar (with SICK T-connector DN40), 20 bar (with SICK T-connector DN50) 4) |
| Communication interface | IO-Link, IO-Link V1.1, COM3 (230.4Â kbit/s) |
| Temperature measurement | â |
| Display | âOLED + 3Â status LEDs |
Performance
| Inlet zone | 5Â x DN |
|---|---|
| Output zone | 3Â x DN |
| Repeatability | < 1 cm/s 1) |
| Resolution | 0.01Â m/s Speed; 0.1Â L/min volume; 0.1% relative (via IO-Link) |
| Temperature drift | <Â 0.5Â cm / (s*K)Â 1) |
| Response time | < 2.5 s 2) |
| Measurement accuracy (temperature) | ± 1 °C |
| Resolution (Temperature) | < 0.1 °C |
| Response time (temperature) | < 5 s 3) |
| Operating mode | Relative speed (%), Volume flow and total volume, Relative teach (%) |
Electronics
| Supply voltage | 9Â VÂ DCÂ ... 30Â VÂ DCÂ 1) |
|---|---|
| Power consumption | <Â 2Â W at 24Â VÂ DC (without load on the outputs)<Â 8Â W At maximum load |
| Initialization time | â¤Â 5 sâ¤Â 10 s (IO-Link) |
| Protection class | III |
| Connection type | M12 round connector x 1, 4-pin |
| Output signal | 2Â push-pull digital outputs (Q2 configurable for IO-Link; Q2 configurable as pulse output / digital input) for flow and temperature |
| Output current | <Â 100Â mAÂ 2) |
| Inductive load | 1Â H |
| Capacitive load | 100Â nF (2.5Â nF, IO-Link mode) |
| EMC | ENÂ 61326-1, ENÂ 61326-2-3 |
| Digital input limit | HIGH voltage dependent on UvLOW voltage <Â 4.0Â V |
| MTTF | >Â 200Â years |
Mechanics
| Process connection | Without process connection (adapter needed for installation) |
|---|---|
| Wetted parts | Stainless steel 1.4404 (Ra ⤠0,8 µm) |
| Housing material | VISTAL® (PA66+PA6I GF50) |
| Enclosure rating | IP67Â 1) |
| Weight | 87Â g |
| Probe diameter | 8Â mm |
| Probe length | 200Â mm |
| Minimum immersion length | 12Â mm |
| Distance to pipe wall | 10Â mm |
Ambient data
| Ambient operating temperature | â40 °C ... +70 °C 1) |
|---|---|
| Ambient temperature, storage | â40 °C ... +80 °C |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
| IO-Link certificate | â |
| Food contact material manufacturer declaration | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27273101 |
|---|---|
| ECLASS 5.1.4 | 27273101 |
| ECLASS 6.0 | 27273101 |
| ECLASS 6.2 | 27273101 |
| ECLASS 7.0 | 27273101 |
| ECLASS 8.0 | 27273101 |
| ECLASS 8.1 | 27273101 |
| ECLASS 9.0 | 27273101 |
| ECLASS 10.0 | 27273101 |
| ECLASS 11.0 | 27273101 |
| ECLASS 12.0 | 27274801 |
| ETIM 5.0 | EC002580 |
| ETIM 6.0 | EC002580 |
| ETIM 7.0 | EC002580 |
| ETIM 8.0 | EC002580 |
| UNSPSC 16.0901 | 41112501 |
