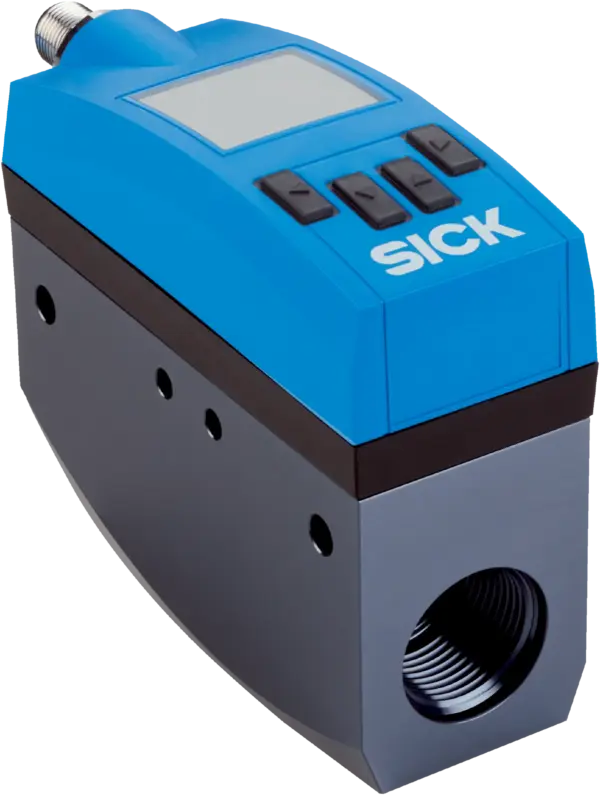

Sick FTMG-ESD20AXX

Flow sensors | FTMg | FTMG-ESD20AXX | Nominal width measuring tube: DN 20 | Process connection: G ¾ (according to DIN ISO 228-1) | Output signal: OPC UA, MQTT, integrated web server, REST API | Connec…

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Flow sensors | FTMg | FTMG-ESD20AXX | Nominal width measuring tube: DN 20 | Process connection: G ¾ (according to DIN ISO 228-1) | Output signal: OPC UA, MQTT, integrated web server, REST API | Connection type: 1 x M12 round connector, 8-pin, X-coded | Housing material: PC+ABS, PA66+PA6I GF50, PC, TPE, stainless steel 1.4301 | Communication interface: MQTT | Process temperature: –20 °C … +60 °C | Display: yes | Enclosure rating: IP65, IP67 | Calibration certificate: no

Specification

Features

Measurement principleCalorimetric (flow, temperature), piezoresistive (pressure)
MediumCompressed air (air quality ISOÂ 8573-1:2010 [3:4:4]), Argon, nitrogen, carbon dioxide
Measured valuesMass, volume, Mass flow rate, Volumetric flow rate, Energy, Flow velocity, pressure, Temperature
Nominal width measuring tubeDN 20
Standard9.4 l/min ... 1,884.9 l/min 1)
Enhanced1,884.9 l/min ... 2,827.4 l/min 1)
Process temperature–20 °C ... +60 °C
Process pressure0 bar ... 16 bar 2)
Communication interfaceMQTT
Temperature measurement✔
Pressure measurement✔
Display✔128 x 128 pixels, adjustable rotary OLED display (90° steps) and 4 pushbuttons

Performance

Standard± 3 % of the measured value + 0.3% of the measuring range limit value (extended measuring range) 1)
Enhanced± 8 % of the measured value + 1% of the measuring range limit value (extended measuring range) 1)
Repeatability± 1.5 % From measured value 1)
Response time<Â 0.3Â s
Measurement accuracy (temperature)± 2 °C 2)
Repeatability (temperature)± 0.5 °C 2)
Measurement accuracy (pressure)± 1.5 % of measuring range end value
Non-linearity (pressure)± 0.5 % from measuring range
Repeatability (pressure)± 0.2 % from measuring range

Electronics

Power consumption<Â 5Â W
Switch-on time≤ 10 s
Protection class✔
Connection type1 x M12 round connector, 8-pin, X-coded
Output signalOPC UA, MQTT, integrated web server, REST API
Enclosure ratingIP65 (IECÂ 60529)Â 1)IP67 (IECÂ 60529)Â 1)
MTTF>Â 100Â years
Standard communicationIEEE802.3Â Clause 25Â (100BaseTx); 100Â Mbit/sec
Standard supplyPower over Ethernet according to IEEE802.3af
Performance classClass 0; acc. IEEE802.3af Powered Device < 13Â W
Power supply modeMode A and Mode B

Mechanics

Process connectionG ¾ (according to DIN ISO 228-1)
Wetted partsProbe: stainless steel 1.4305, PA6; seal: FKM (Viton®); measurement channel: aluminum
Housing materialPC+ABS, PA66+PA6I GF50, PC, TPE, stainless steel 1.4301
WeightApprox. 755 g

Ambient data

Ambient operating temperature–20 °C ... +60 °C 1)
Ambient temperature, storage–40 °C ... +80 °C

Certificates

EU declaration of conformity✔
UK declaration of conformity✔
ACMA declaration of conformity✔
Moroccan declaration of conformity✔
China RoHS✔
Information according to Art. 3 of Data Act (Regulation EU 2023/2854)✔

Classifications

ECLASS 5.027200403
ECLASS 5.1.427200403
ECLASS 6.027200403
ECLASS 6.227200403
ECLASS 7.027200403
ECLASS 8.027200403
ECLASS 8.127200403
ECLASS 9.027200403
ECLASS 10.027200403
ECLASS 11.027200403
ECLASS 12.027200403
ETIM 5.0EC002580
ETIM 6.0EC002580
ETIM 7.0EC002580
ETIM 8.0EC002580
UNSPSC 16.090141112501
