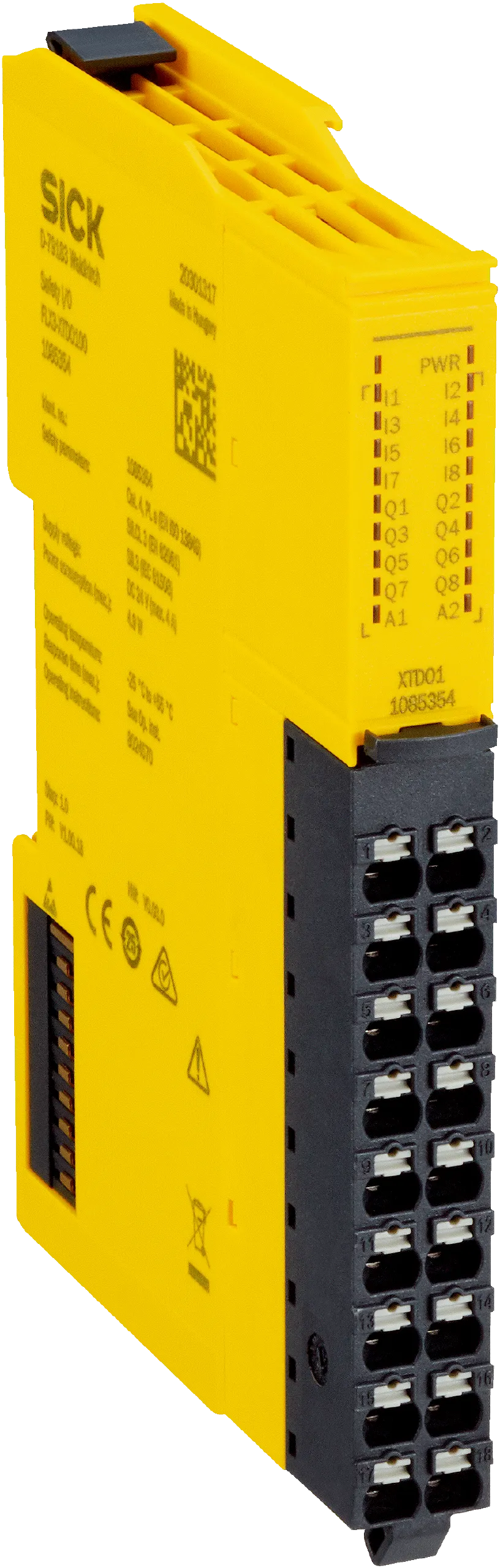

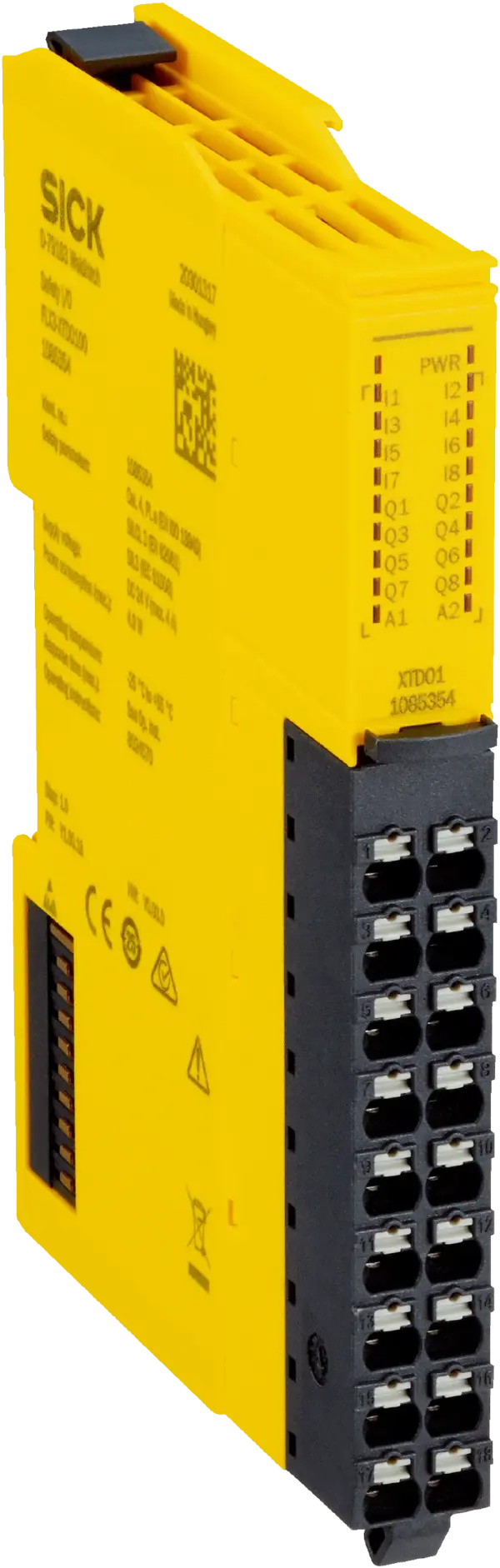

Sick FLX3-XTDO100
Safety controllers | Flexi Compact | FLX3-XTDO100 | Module: I/O module | Short designation: XTDO1 | Safety inputs: 8 | Safety outputs: 8 | Connection type: Front connector with spring terminals | Item…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safety controllers | Flexi Compact | FLX3-XTDO100 | Module: I/O module | Short designation: XTDO1 | Safety inputs: 8 | Safety outputs: 8 | Connection type: Front connector with spring terminals | Items supplied: I/O module, Front connector with 18Â terminals, safety instruction, Operating instructions for download
Specification
Features
| Module | I/O module |
|---|---|
| Description | The I/O module is a safe digital input/output expansion module. |
| Safety inputs | 8 |
| Safety outputs | 8 |
| Security Level | SL-C 1Â (IECÂ 62443-4-2) |
| Configuration method | Via software (Safety Designer) |
| Items supplied | I/O moduleFront connector with 18Â terminalsSafety instructionOperating instructions for download |
Safety-related parameters
| Safety integrity level | SIL 3Â (IECÂ 61508) |
|---|---|
| Category | Category 4Â (ISOÂ 13849-1) |
| Performance level | PL e (ISO 13849-1) |
| PFHD (mean probability of a dangerous failure per hour) | 4 × 10-9 1) |
| TM (mission time) | 20Â years (ISOÂ 13849-1) |
Functions
| Monitoring of the connected safety devices | ✔ |
|---|---|
| Switching of the connected safety devices | ✔ |
| Fast shut-off | ✔ |
Interfaces
| Connection type | Front connector with spring terminals |
|---|---|
| Front connector | 1Â front connector with 18Â terminals |
| Safety inputs | 8 |
| Safety outputs | 8 |
| Display elements | LEDs |
Electronics
| Protection class | III (ENÂ 61140) |
|---|---|
| Interference resistance | ENÂ 61000-6-2 |
| Interference emission | ENÂ 61000-6-4 |
| Voltage supply | The voltage supply of the extension modules is maintained via the backplane bus |
| Supply voltage VS | 24Â VÂ DC (16.8Â VÂ ... 30Â V)Â 1) |
| Type of voltage supply | PELV or SELVÂ 2) |
| Overvoltage category | II (ENÂ 61131-2) |
| Power consumption at nominal voltage (without outputs) | 2.4Â W (DC) |
| Power loss | ≤ 4.9 W |
Mechanics
| Dimensions (W x H x D) | 14 mm x 124.7 mm x 85.5 mm |
|---|---|
| Contamination rating | 2Â (IECÂ 61010-1) |
| Control device type | Open device (IECÂ 61010-2-201) |
| Weight | 111 g (± 5 %) |
| Mounting | Mounting on a 35 mm × 7.5 mm mounting rail in accordance with IEC 60715 |
Ambient data
| Enclosure rating | IP20 (ENÂ 60529) |
|---|---|
| Ambient operating temperature | –25 °C ... +55 °C 1) |
| Storage temperature | –25 °C ... +70 °C |
| Air humidity | ≤ 95 %, Non-condensing |
| Vibration resistance | 1 g, 5 Hz ... 200 Hz (EN 60068-2-6) |
| Shock resistance | 15Â g, 11Â ms (ENÂ 60068-2-27) |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| China RoHS | ✔ |
| UK-Type-Examination approval | ✔ |
| cULus certificate | ✔ |
| cTUVus certificate | ✔ |
| S Mark certificate | ✔ |
| EC-Type-Examination approval | ✔ |
| EC-Type-Examination approval (Machinery Directive) | ✔ |
| EC-Type-Examination approval (Machinery Regulation) | ✔ |
| Third party certificate | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ |
| Cybersecurity certificate | ✔ |
Classifications
| ECLASS 5.0 | 27243001 |
|---|---|
| ECLASS 5.1.4 | 27243101 |
| ECLASS 6.0 | 27243101 |
| ECLASS 6.2 | 27243101 |
| ECLASS 7.0 | 27243101 |
| ECLASS 8.0 | 27243101 |
| ECLASS 8.1 | 27243101 |
| ECLASS 9.0 | 27243101 |
| ECLASS 10.0 | 27243101 |
| ECLASS 11.0 | 27243101 |
| ECLASS 12.0 | 27243101 |
| ETIM 5.0 | EC001449 |
| ETIM 6.0 | EC001449 |
| ETIM 7.0 | EC001449 |
| ETIM 8.0 | EC001449 |
| UNSPSC 16.0901 | 32151705 |
