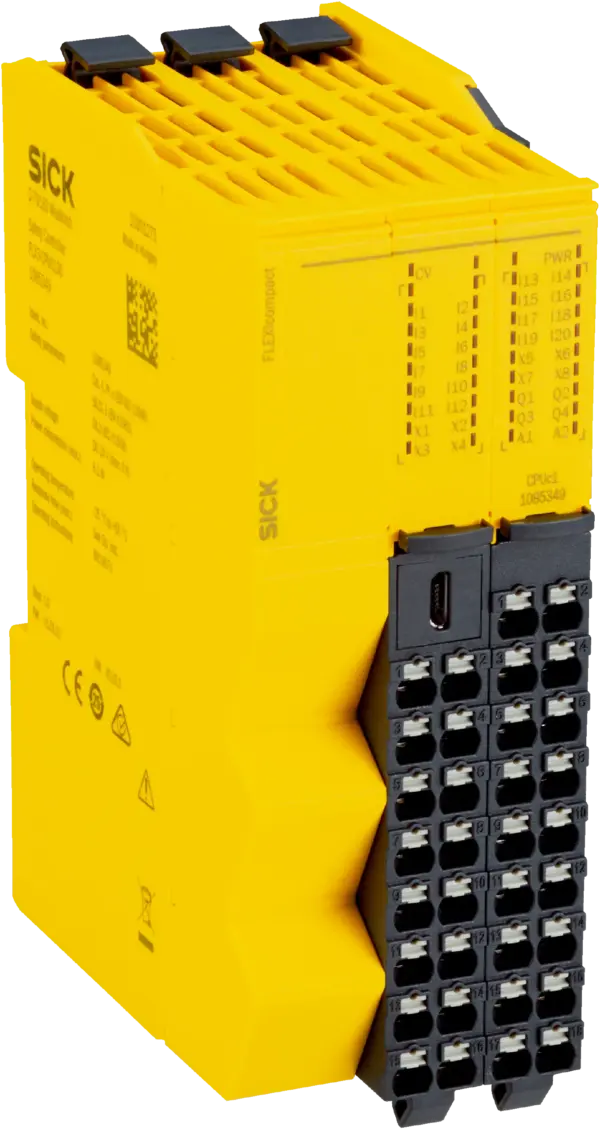

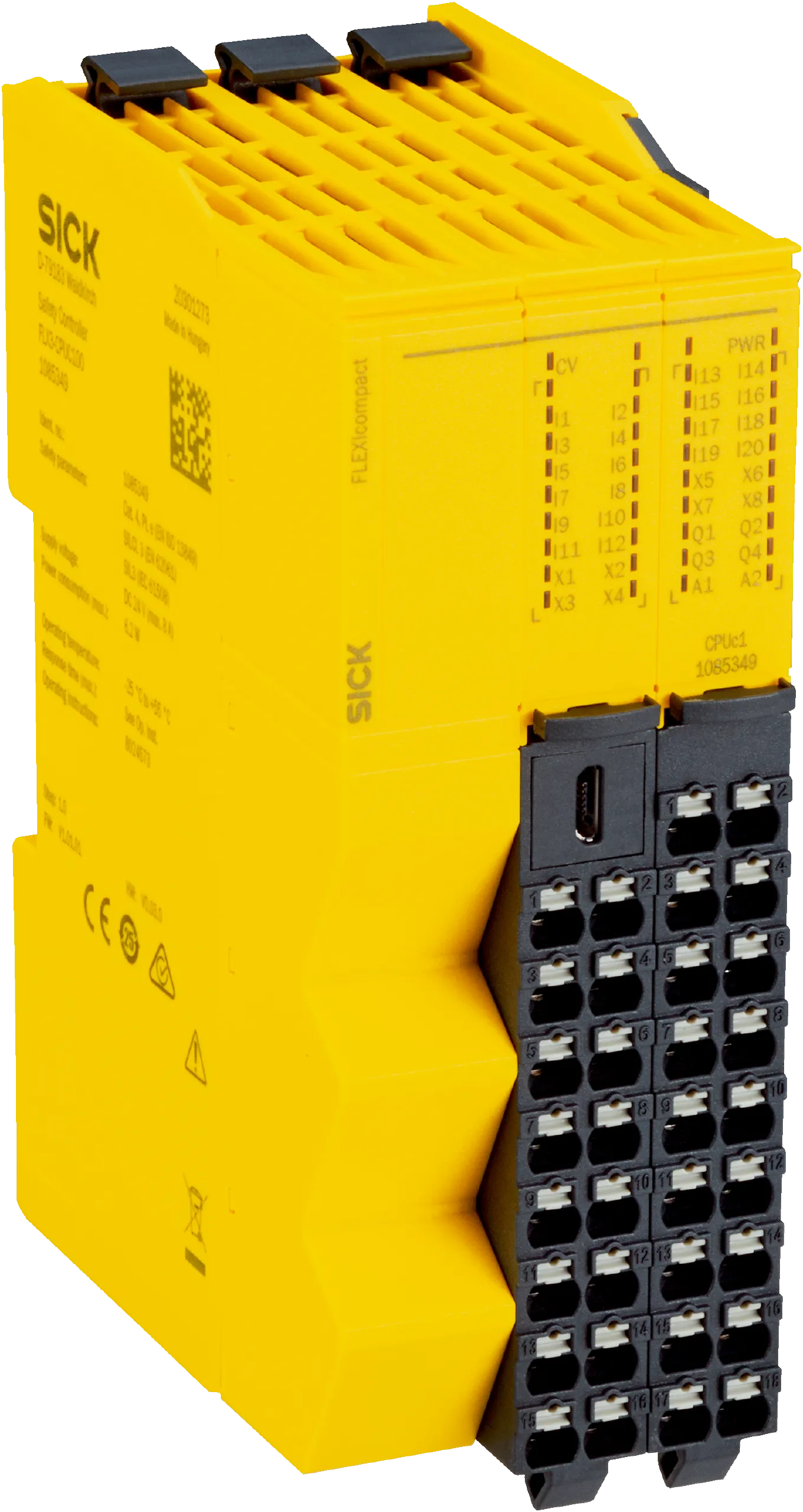

Sick FLX3-CPUC100
Safety controllers | Flexi Compact | FLX3-CPUC100 | Module: Main module | Short designation: CPUc1 | Safety inputs: 20 | Safety outputs: 4 | Test outputs: 8 | Connection type: Front connector with spr…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safety controllers | Flexi Compact | FLX3-CPUC100 | Module: Main module | Short designation: CPUc1 | Safety inputs: 20 | Safety outputs: 4 | Test outputs: 8 | Connection type: Front connector with spring terminals | Configuration and diagnostics interface: USB connection via SmartPlug | Safe series connection with Flexi Loop: Yes | Items supplied: Main module, SmartPlug, Front connector with 16Â terminals and opening for SmartPlug, Front connector with 18Â terminals, Housing end cap, safety instruction, Operating instructions for download
Specification
Features
| Module | Main module |
|---|---|
| Description | The main module is the central process unit of the modular safety controller. All incoming signals are monitored and logically processed in the main module. The outputs are switched based on this processing. |
| Safety inputs | 20 |
| Safety outputs | 4 |
| Test outputs | 8 |
| Security Level | SL-C 1Â (IECÂ 62443-4-2) |
| Configuration method | Via software (Safety Designer) |
| Items supplied | Main moduleSmartPlugFront connector with 16Â terminals and opening for SmartPlugFront connector with 18Â terminalsHousing end capSafety instructionOperating instructions for download |
Safety-related parameters
| Safety integrity level | SIL 3Â (IECÂ 61508) |
|---|---|
| Category | Category 4Â (ISOÂ 13849-1) |
| Performance level | PL e (ISO 13849-1) |
| PFHD (mean probability of a dangerous failure per hour) | 4 × 10-9 1) |
| TM (mission time) | 20Â years (ISOÂ 13849-1) |
Functions
| Programmable logic | ✔ |
|---|---|
| Monitoring of the connected safety devices | ✔ |
| Switching of the connected safety devices | ✔ |
| Fast shut-off | ✔ |
| Testing of the connected safety devices and the wiring (short-circuit detection) | ✔ |
| Use of the test outputs as non-safe outputs | ✔ |
| Safe series connection with Flexi Loop | ✔ |
Interfaces
| Connection type | Front connector with spring terminals |
|---|---|
| Front connector | 1Â front connector with 16Â terminals and opening for SmartPlug1Â front connector with 18Â terminals |
| Safety inputs | 20 |
| Safety outputs | 4 |
| Test outputs | 8 |
| USB connection via SmartPlug | ✔ |
| Display elements | LEDs |
Electronics
| Protection class | III (ENÂ 61140) |
|---|---|
| Interference resistance | ENÂ 61000-6-2 |
| Interference emission | ENÂ 61000-6-4 |
| Voltage supply | The voltage supply of the main module is maintained directly via the terminals on the front connector |
| Supply voltage VS | 24Â VÂ DC (16.8Â VÂ ... 30Â V)Â 1) |
| Type of voltage supply | PELV or SELVÂ 2) |
| Overvoltage category | II (ENÂ 61131-2) |
| Power consumption at nominal voltage (without outputs) | 3Â W (DC) |
| Power loss | ≤ 6.2 W |
Mechanics
| Dimensions (W x H x D) | 46.2 mm x 124.7 mm x 85.5 mm |
|---|---|
| Contamination rating | 2Â (IECÂ 61010-1) |
| Control device type | Open device (IECÂ 61010-2-201) |
| Weight | 277 g (± 5 %) |
| Mounting | Mounting on a 35 mm × 7.5 mm mounting rail in accordance with IEC 60715 |
Ambient data
| Enclosure rating | IP20 (ENÂ 60529) |
|---|---|
| Ambient operating temperature | –25 °C ... +55 °C 1) |
| Storage temperature | –25 °C ... +70 °C |
| Air humidity | ≤ 95 %, Non-condensing |
| Vibration resistance | 1 g, 5 Hz ... 200 Hz (EN 60068-2-6) |
| Shock resistance | 15Â g, 11Â ms (ENÂ 60068-2-27) |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| China RoHS | ✔ |
| UK-Type-Examination approval | ✔ |
| cULus certificate | ✔ |
| cTUVus certificate | ✔ |
| S Mark certificate | ✔ |
| EC-Type-Examination approval | ✔ |
| EC-Type-Examination approval (Machinery Directive) | ✔ |
| EC-Type-Examination approval (Machinery Regulation) | ✔ |
| Third party certificate | ✔ |
| Cybersecurity certificate | ✔ |
Classifications
| ECLASS 5.0 | 27243001 |
|---|---|
| ECLASS 5.1.4 | 27243101 |
| ECLASS 6.0 | 27243101 |
| ECLASS 6.2 | 27243101 |
| ECLASS 7.0 | 27243101 |
| ECLASS 8.0 | 27243101 |
| ECLASS 8.1 | 27243101 |
| ECLASS 9.0 | 27243101 |
| ECLASS 10.0 | 27243101 |
| ECLASS 11.0 | 27243101 |
| ECLASS 12.0 | 27243101 |
| ETIM 5.0 | EC001449 |
| ETIM 6.0 | EC001449 |
| ETIM 7.0 | EC001449 |
| ETIM 8.0 | EC001449 |
| UNSPSC 16.0901 | 32151705 |
