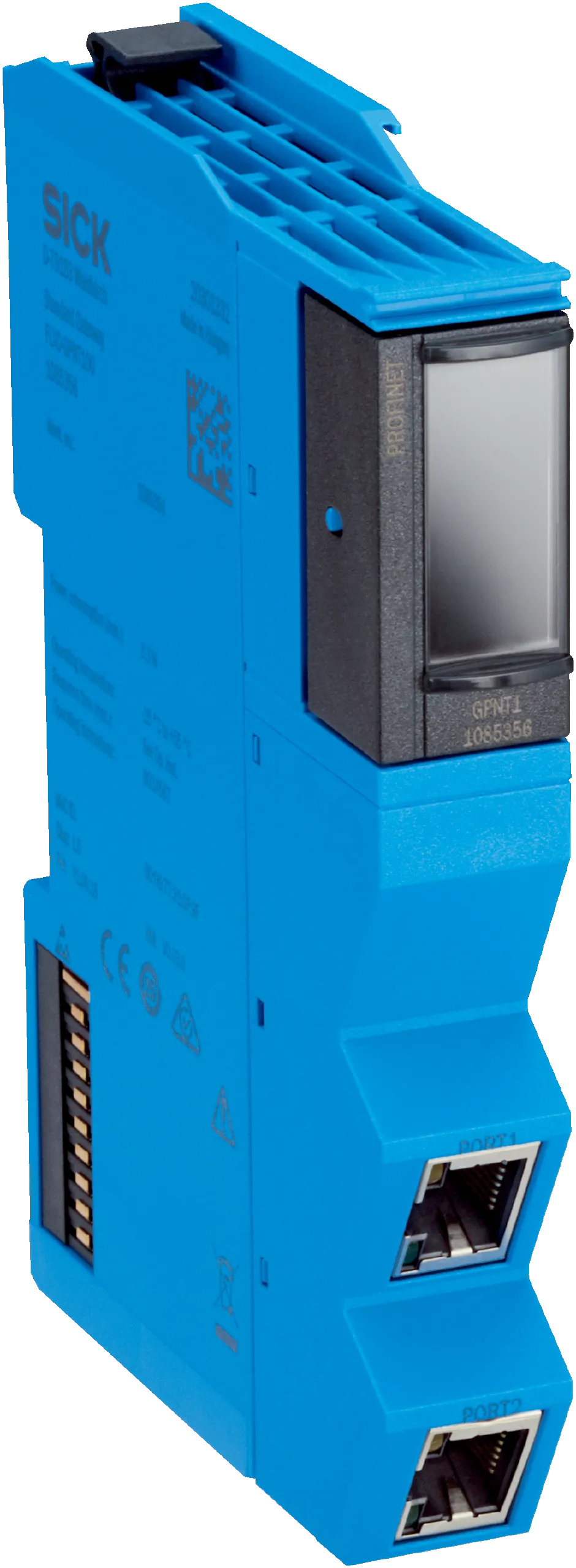

Sick FLX0-GPNT100
Safety controllers | Flexi Compact | FLX0-GPNT100 | Module: Gateway | Short designation: GPNT1 | Configuration and diagnostics interface: TCP/IPĀ configuration interface, Configuration via TFT display…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From ā¬20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From ā¬40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safety controllers | Flexi Compact | FLX0-GPNT100 | Module: Gateway | Short designation: GPNT1 | Configuration and diagnostics interface: TCP/IPĀ configuration interface, Configuration via TFT display | Fieldbus: PROFINET, TCP/IPĀ sockets | Fieldbus interface: 2Ā x female connector, RJ45 | Items supplied: Gateway, Operating instructions for download
Specification
Features
| Module | Gateway |
|---|---|
| Description | The gateway module enables a safety controller to send data to a network for control and diagnostic purposes, and to receive data from the network. |
| Security Level | SL-C 1Ć (IECĆ 62443-4-2) |
| Fieldbus | PROFINETTCP/IPĆ sockets |
| Configuration method | Via software (Safety Designer) |
| Items supplied | GatewayOperating instructions for download |
Functions
| Integration into a PROFINET network as a field device | Ć¢ĀĀ |
|---|---|
| Communication of multiple applications with the safety controller via TCP/IPĆ sockets | Ć¢ĀĀ |
| Configuration of the safety controller via TCP/IP | Ć¢ĀĀ |
Interfaces
| TCP/IPĆ configuration interface | Ć¢ĀĀ |
|---|---|
| Configuration via TFT display | Ć¢ĀĀ |
| Fieldbus | PROFINETTCP/IPĆ sockets |
| Fieldbus interface | 2Ć x female connector, RJ45 |
| Note | The module is equipped with an integrated switch. The switch enables the module to be connected to another Ethernet component (e.g., to a computer) without having to interrupt the connection of the fieldbus network. |
| Display elements | TFT display |
Electronics
| Protection class | III (ENĆ 61140) |
|---|---|
| Interference resistance | ENĆ 61000-6-2 |
| Interference emission | ENĆ 61000-6-4 |
| Voltage supply | The voltage supply of the extension modules is maintained via the backplane bus |
| Power loss | Ć¢ĀĀ¤Ć 3.3Ć W |
| Current consumption at nominal voltage | 135Ć mA |
Mechanics
| Dimensions (WĆ x HĆ x D) | 18Ć mmĆ x 124.7Ć mmĆ x 85.5Ć mm |
|---|---|
| Contamination rating | 2Ć (IECĆ 61010-1) |
| Control device type | Open device (IECĆ 61010-2-201) |
| Weight | 108Ć g (ĆĀ± 5Ć %) |
| Mounting | Mounting on a 35Ć mm ĆĀ 7.5Ć mm mounting rail in accordance with IECĆ 60715 |
Ambient data
| Enclosure rating | IP20 (ENĆ 60529) |
|---|---|
| Ambient operating temperature | Ć¢ĀĀ25Ć ĆĀ°CĆ ... +55Ć ĆĀ°CĆ 1) |
| Storage temperature | Ć¢ĀĀ25Ć ĆĀ°CĆ ... +70Ć ĆĀ°C |
| Air humidity | Ć¢ĀĀ¤ 95Ć %, Non-condensing |
| Vibration resistance | 1Ć g, 5Ć HzĆ ... 200Ć Hz (ENĆ 60068-2-6) |
| Shock resistance | 15Ć g, 11Ć ms (ENĆ 60068-2-27) |
Certificates
| EU declaration of conformity | Ć¢ĀĀ |
|---|---|
| UK declaration of conformity | Ć¢ĀĀ |
| ACMA declaration of conformity | Ć¢ĀĀ |
| China RoHS | Ć¢ĀĀ |
| cULus certificate | Ć¢ĀĀ |
| S Mark certificate | Ć¢ĀĀ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | Ć¢ĀĀ |
| Cybersecurity certificate | Ć¢ĀĀ |
Classifications
| ECLASS 5.0 | 27243001 |
|---|---|
| ECLASS 5.1.4 | 27243101 |
| ECLASS 6.0 | 27243101 |
| ECLASS 6.2 | 27243101 |
| ECLASS 7.0 | 27243101 |
| ECLASS 8.0 | 27243101 |
| ECLASS 8.1 | 27243101 |
| ECLASS 9.0 | 27243101 |
| ECLASS 10.0 | 27243101 |
| ECLASS 11.0 | 27243101 |
| ECLASS 12.0 | 27243101 |
| ETIM 5.0 | EC001449 |
| ETIM 6.0 | EC001449 |
| ETIM 7.0 | EC001449 |
| ETIM 8.0 | EC001449 |
| UNSPSC 16.0901 | 32151705 |
