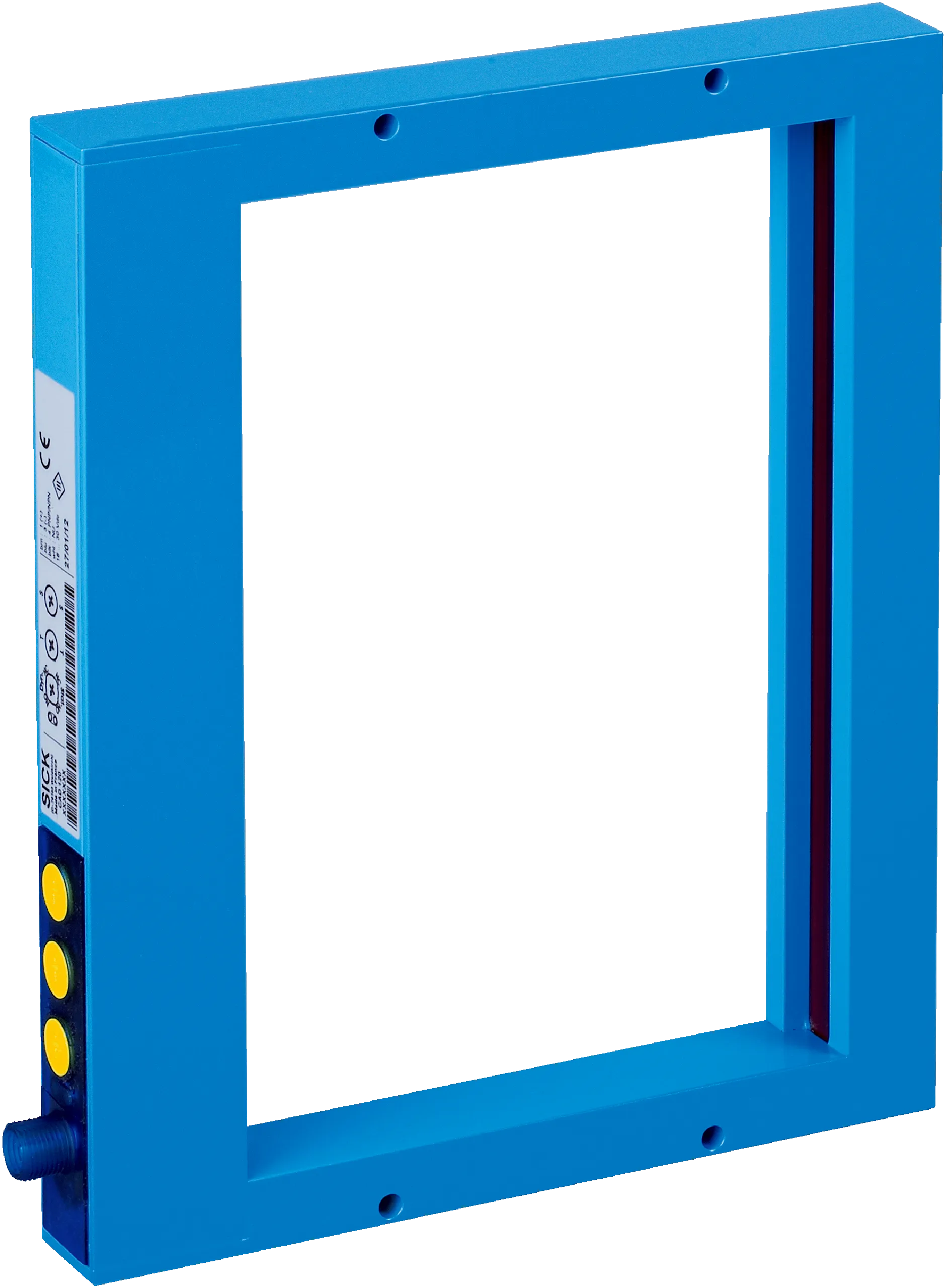

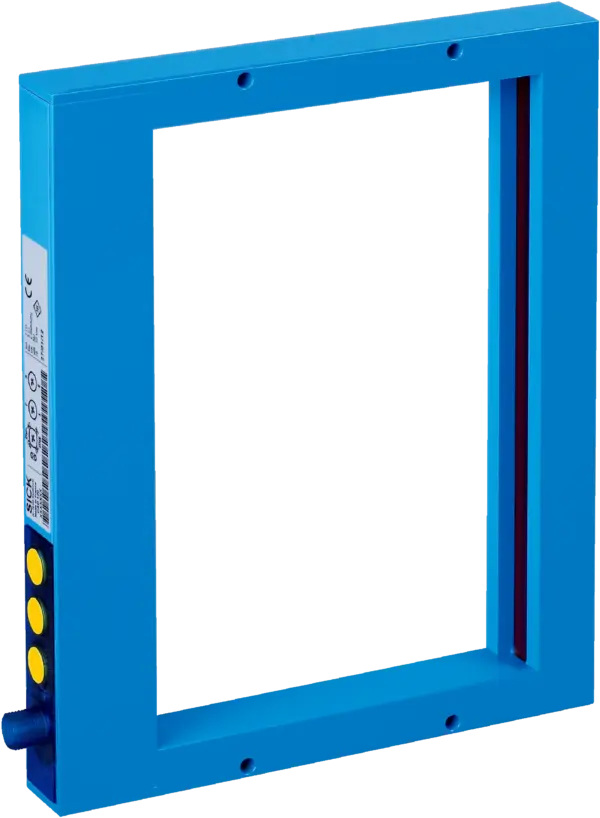

Sick FLG2-20012011
Automation light grids | FLG | FLG2-20012011 | Device version: Close | Beam separation: 2 mm | Detection height: 120 mm | Detection area (W x H): 120 mm 200 mm | Response time: < 0.1 ms
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Automation light grids | FLG | FLG2-20012011 | Device version: Close | Beam separation: 2 mm | Detection height: 120 mm | Detection area (W x H): 120 mm 200 mm | Response time: < 0.1 ms
Specification
Features
| Device version | Close |
|---|---|
| Sensor principle | Sender/receiver |
| Minimum detectable object (MDO) | 2 mm, dynamic: 2 mm 1)6 mm, static: 6 mm |
| Beam separation | 2Â mm |
| Detection height | 120Â mm |
| Output function | Light/dark switching adjustable by means of rotary switch |
Mechanics/electronics
| Wave length | 880Â nm |
|---|---|
| Supply voltage Vs | DC 18Â VÂ ... 30Â VÂ 1) |
| Ripple | <Â 10Â % |
| Output current Imax. | â¤Â 100 mA |
| Off delay | 0 s ... 5 s 2) |
| Initialization time | 0.3Â s |
| Switching output | PNP, NPNÂ 3) |
| Dimensions (W x H x D) | 182 mm x 230 mm x 25 mm |
| Connection type | Male connector M12, 4-pin |
| Housing material | Aluminum, painted |
| Indication | LED |
| Enclosure rating | IP65 |
| Circuit protection | UV connections, reverse polarity protectedOutput Q short-circuit protectedInterference pulse suppression |
| Protection class | III |
| Weight | 1.12Â kg |
| Switching frequency | 5,000Â Hz |
Performance
| Detection area (W x H) | 120 mm x 200 mm 1) |
|---|---|
| Response time | <Â 0.1Â ms |
Ambient data
| Shock resistance | ENÂ 60068-2-27 |
|---|---|
| Vibration resistance | ENÂ 60068-2-6 |
| EMC | ENÂ 60947-5-2 |
| Ambient light immunity | Sunlight: 10,000Â lx |
| Ambient operating temperature | 0 °C ... +60 °C 1) |
| Ambient temperature, storage | â20 °C ... +80 °C |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
Classifications
| ECLASS 5.0 | 27270910 |
|---|---|
| ECLASS 5.1.4 | 27270910 |
| ECLASS 6.0 | 27270910 |
| ECLASS 6.2 | 27270910 |
| ECLASS 7.0 | 27270910 |
| ECLASS 8.0 | 27270910 |
| ECLASS 8.1 | 27270910 |
| ECLASS 9.0 | 27270910 |
| ECLASS 10.0 | 27270910 |
| ECLASS 11.0 | 27270910 |
| ECLASS 12.0 | 27270910 |
| ETIM 5.0 | EC002549 |
| ETIM 6.0 | EC002549 |
| ETIM 7.0 | EC002549 |
| ETIM 8.0 | EC002549 |
| UNSPSC 16.0901 | 39121528 |
