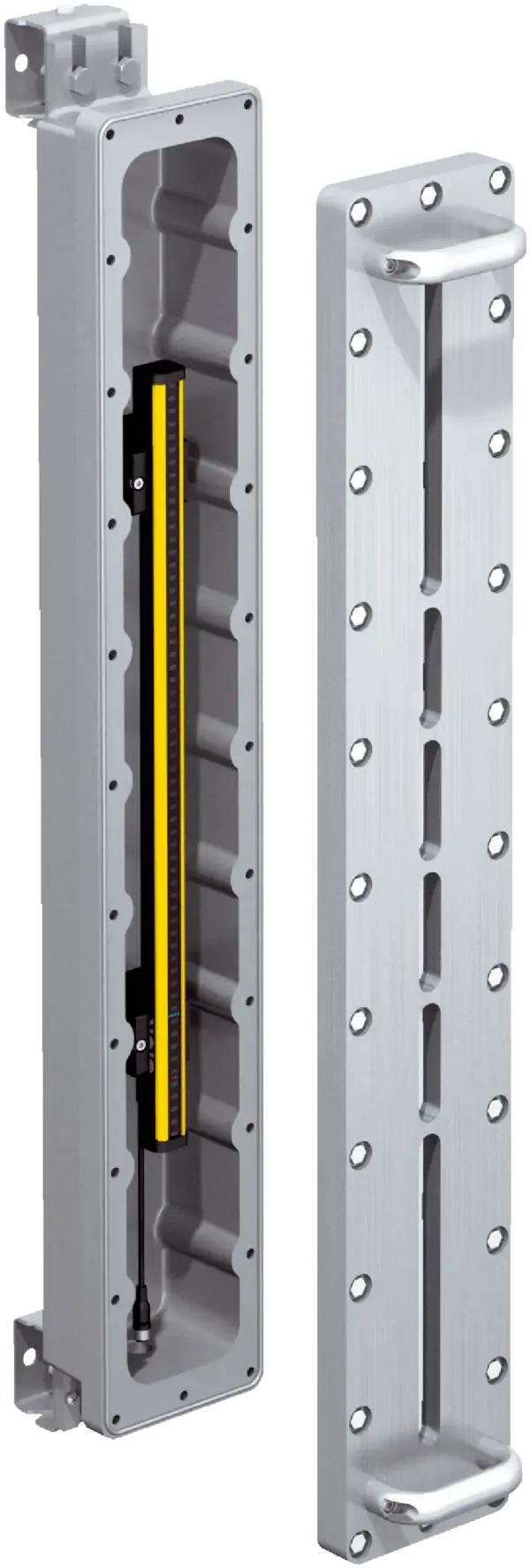

Sick EXE-09D0340A020
Safety light-beam sensors | deTem | EXE-09D0340A020 | Product version: deTem4 Core Ex | Functional principle: Sender/receiver | System part: Receiver | Application: Explosive areas | Ex-approvals: ATE…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safety light-beam sensors | deTem | EXE-09D0340A020 | Product version: deTem4 Core Ex | Functional principle: Sender/receiver | System part: Receiver | Application: Explosive areas | Ex-approvals: ATEX for gas: II 2 G Ex db IIB T6 Gb, ATEX for dust: II 2 D Ex tb IIIC T56°C Db IP6X, NFPA 70/NEC 500 Class I, Div. 1, Groups C and D, NFPA 70/NEC 500 Class II, Div. 1, Groups E, F and G, NFPA 70/NEC 500 Class III, Div. 1 | Safety level: PL e, SIL 3, Type 4 | Functions: Protective operation | Number of beams: 3 | Beam separation: 400 mm | Connection type: Connecting cable, 5-wire | Integrated laser alignment aid: no | Enclosure rating: IP65, IP66 | Items supplied: Receiver, “Notes for explosion protection” label(s), safety instruction, Mounting instructions, Operating instructions for download
Specification
Features
| Product version | deTem4 Core Ex |
|---|---|
| Application | Explosive areas |
| Ex-approvals | ATEX for gas: II 2 G Ex db IIB T6 GbATEX for dust: II 2 D Ex tb IIIC T56°C Db IP6XNFPA 70/NEC 500 Class I, Div. 1, Groups C and DNFPA 70/NEC 500 Class II, Div. 1, Groups E, F and GNFPA 70/NEC 500 Class III, Div. 1 |
| Functional principle | Sender/receiver |
| System part | Receiver |
| Number of beams | 3 |
| Beam separation | 400Â mm |
| Response time | 20Â ms |
| Synchronization | Optical synchronization |
| Items supplied | ReceiverâNotes for explosion protectionâ label(s)Safety instructionMounting instructionsOperating instructions for download |
Safety-related parameters
| Type | Type 4Â (IECÂ 61496-1) |
|---|---|
| Safety integrity level | SIL 3Â (IECÂ 61508) |
| Category | Category 4Â (ISOÂ 13849-1) |
| Performance level | PL e (ISO 13849-1) |
| PFHD (mean probability of a dangerous failure per hour) | 3Â x 10-9 |
| TM (mission time) | 20Â years (ISOÂ 13849-1) |
| Safe state in the event of a fault | At least one OSSD is in the OFF state. |
Interfaces
| System connection | Connecting cable, 5-wire |
|---|---|
| Length of cable | 30Â m |
| Cable diameter | 5Â mm |
| Conductor cross section | 0.34 mm² |
| Display elements | LEDs |
Electronics
| Protection class | III (IECÂ 61140) |
|---|---|
| Supply voltage VS | 24Â VÂ DC (19.2Â VÂ DCÂ ... 28.8Â VÂ DC)Â 1) |
| Residual ripple | ⤠10 % 2) |
| Power consumption | â¤Â 150 mA |
| Power consumption | â¤Â 4.32 W (DC) |
| Output signal switching devices (OSSDs) | 2 PNP semiconductors, short-circuit protected, cross-circuit monitored 3) |
| ON state, switching voltage HIGH | 24Â VÂ DC (VS â 2.25Â VÂ DCÂ ... VS) |
| OFF state, switching voltage LOW | â¤Â 2 V DC |
| Current-carrying capacity per OSSD | â¤Â 300 mA |
Mechanics
| Dimensions | See dimensional drawing |
|---|---|
| Housing cross-section | 161.8 mm x 142.1 mm |
| Housing | Aluminum extruded profile |
| Weight | 37.72 kg (± 50 g) |
Ambient data
| Enclosure rating | IP65 (IECÂ 60529)IP66 (IECÂ 60529) |
|---|---|
| Ambient operating temperature | â20 °C ... +55 °C |
| Storage temperature | â30 °C ... +70 °C |
| Air humidity | 15Â %Â ... 95Â %, Non-condensing |
| Vibration resistance | 5 ⦠150 Hz, 3,5 mm / 1 g (EN 60068-2-6) |
| Shock resistance | 15Â g / 6Â ms (ENÂ 60068-2-27) |
| Class | 3M4 (IECÂ TR 60721-4-3) |
Other information
| Type of light | Near-infrared (NIR), invisible |
|---|
Classifications
| ECLASS 5.0 | 27272703 |
|---|---|
| ECLASS 5.1.4 | 27272703 |
| ECLASS 6.0 | 27272703 |
| ECLASS 6.2 | 27272703 |
| ECLASS 7.0 | 27272703 |
| ECLASS 8.0 | 27272703 |
| ECLASS 8.1 | 27272703 |
| ECLASS 9.0 | 27272703 |
| ECLASS 10.0 | 27272703 |
| ECLASS 11.0 | 27272703 |
| ECLASS 12.0 | 27272703 |
| ETIM 5.0 | EC001832 |
| ETIM 6.0 | EC001832 |
| ETIM 7.0 | EC001832 |
| ETIM 8.0 | EC001832 |
| UNSPSC 16.0901 | 46171620 |
Certificates
| EU declaration of conformity | â |
|---|---|
| China RoHS | â |
| ATEX certificate | â |
| IECEx certificate | â |
| cULus certificate | â |
