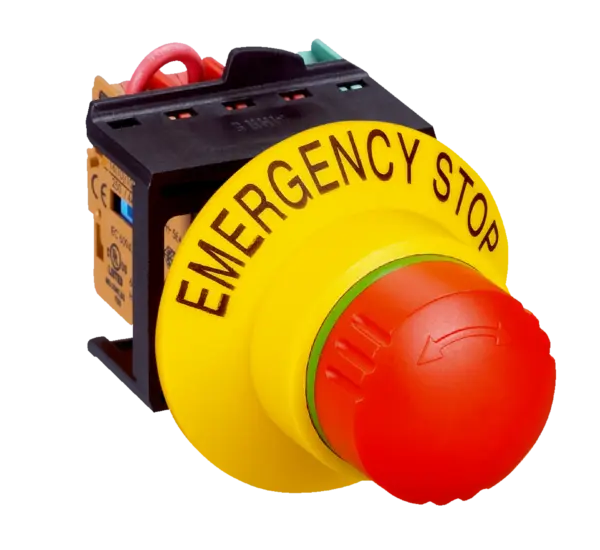

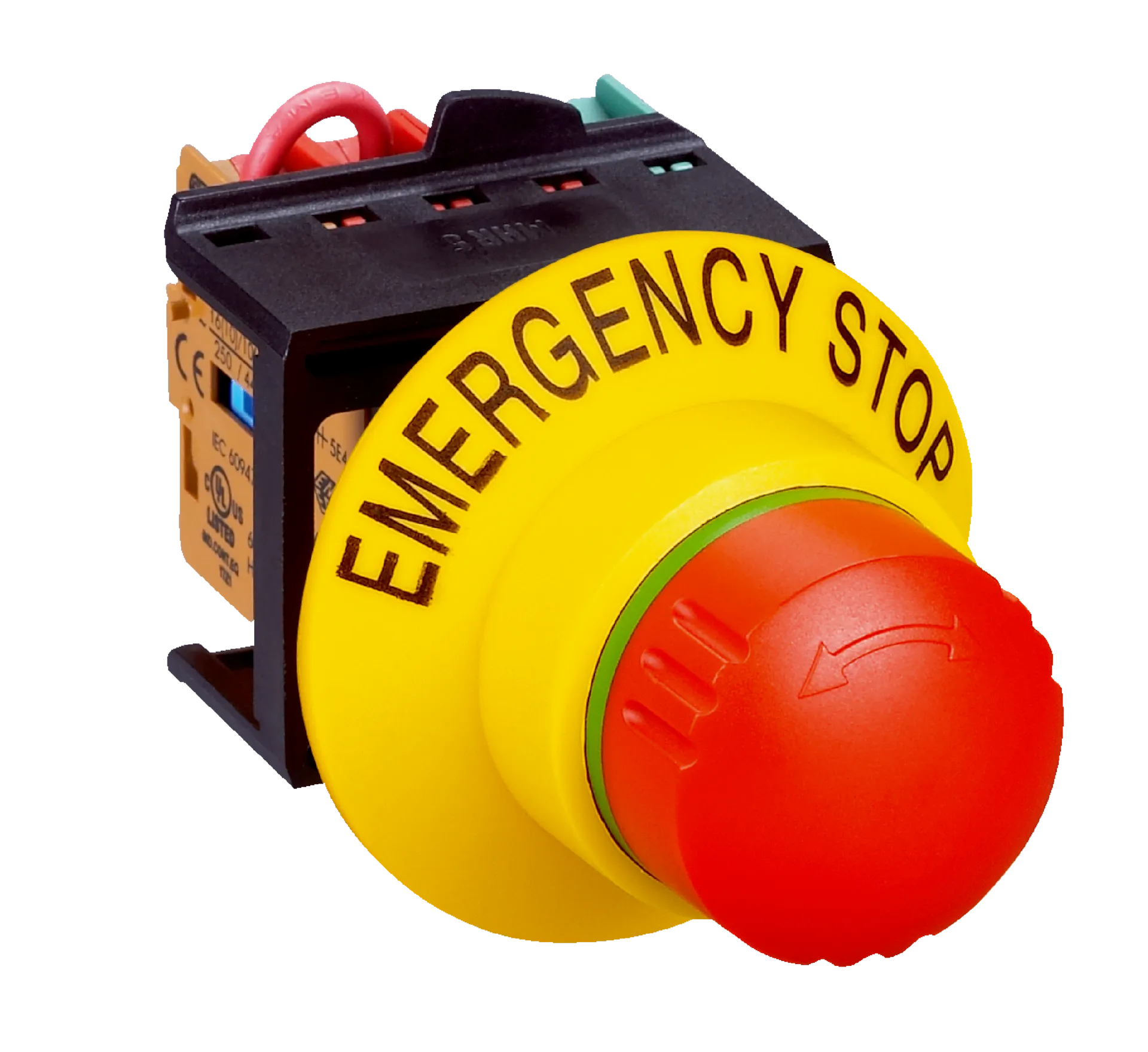

Sick ES21-SB13J1
Safety switches | ES21 | ES21-SB13J1 | System part: Complete device | Mounting version: Panel mount version | Positive action N/C contacts: 2 | N/O contacts: 1 | Connection type Detail: Terminal strip…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safety switches | ES21 | ES21-SB13J1 | System part: Complete device | Mounting version: Panel mount version | Positive action N/C contacts: 2 | N/O contacts: 1 | Connection type Detail: Terminal strip | Emergency stop pushbutton (illuminable): yes | Protective collar: no | Obstruction protection: yes | Labeling “EMERGENCY STOP”: yes
Specification
Features
| Positive action N/C contacts | 2 |
|---|---|
| N/O contacts | 1 |
| Actuation directions | 1 |
| Contact module for panel mount version | ✔ |
| Emergency stop pushbutton (illuminable) | ✔ |
| Obstruction protection | ✔ |
| Release type | Rotary release |
| Labeling "EMERGENCY STOP" | ✔ |
Safety-related parameters
| B10d parameter | 2.5 x 105 switching cycles |
|---|
Functions
| Safe series connection | None, only individual wiring (with diagnostics) |
|---|
Interfaces
| Connection type | Terminal strip |
|---|---|
| Conductor cross section | ≤ 2.5 mm² |
| Contact | Screw connection |
Electronics - Operating data
| Protection class | II (ENÂ 50178) |
|---|---|
| Switching principle | Slow action switching element |
| Positive action N/C contacts | 2 |
| N/O contacts | 1 |
| Usage category | AC-15/DC-13 (ENÂ 60947-5-1) |
| Rated operating current (voltage) | 3Â A (250Â VÂ AC)2Â A (24Â VÂ DC) |
| Rated insulation voltage Ui | 600Â V |
| Switching voltage | ≥ 5 V DC |
| Switching current | ≥ 1 mA |
Electronics - Illumination
| Supply voltage Vs | 24Â VÂ DC (12Â VÂ DCÂ ... 30Â VÂ DC) |
|---|---|
| Power consumption | 8Â mAÂ ... 44Â mA |
| Life time | 70.000 h 1)100.000 h  2) |
Mechanics
| Weight | 150Â g |
|---|---|
| Housing material | Plastic |
| Mounting version | Panel mount version |
Ambient data
| Enclosure rating | IP54 (IECÂ 60529) |
|---|---|
| Ambient operating temperature | –25 °C ... +55 °C |
| Storage temperature | –25 °C ... +85 °C |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| China RoHS | ✔ |
Classifications
| ECLASS 5.0 | 27371228 |
|---|---|
| ECLASS 5.1.4 | 27371228 |
| ECLASS 6.0 | 27371244 |
| ECLASS 6.2 | 27371244 |
| ECLASS 7.0 | 27371244 |
| ECLASS 8.0 | 27371244 |
| ECLASS 8.1 | 27371244 |
| ECLASS 9.0 | 27371244 |
| ECLASS 10.0 | 27371244 |
| ECLASS 11.0 | 27371244 |
| ECLASS 12.0 | 27371244 |
| ETIM 5.0 | EC002034 |
| ETIM 6.0 | EC002034 |
| ETIM 7.0 | EC002034 |
| ETIM 8.0 | EC002034 |
| UNSPSC 16.0901 | 39121545 |
