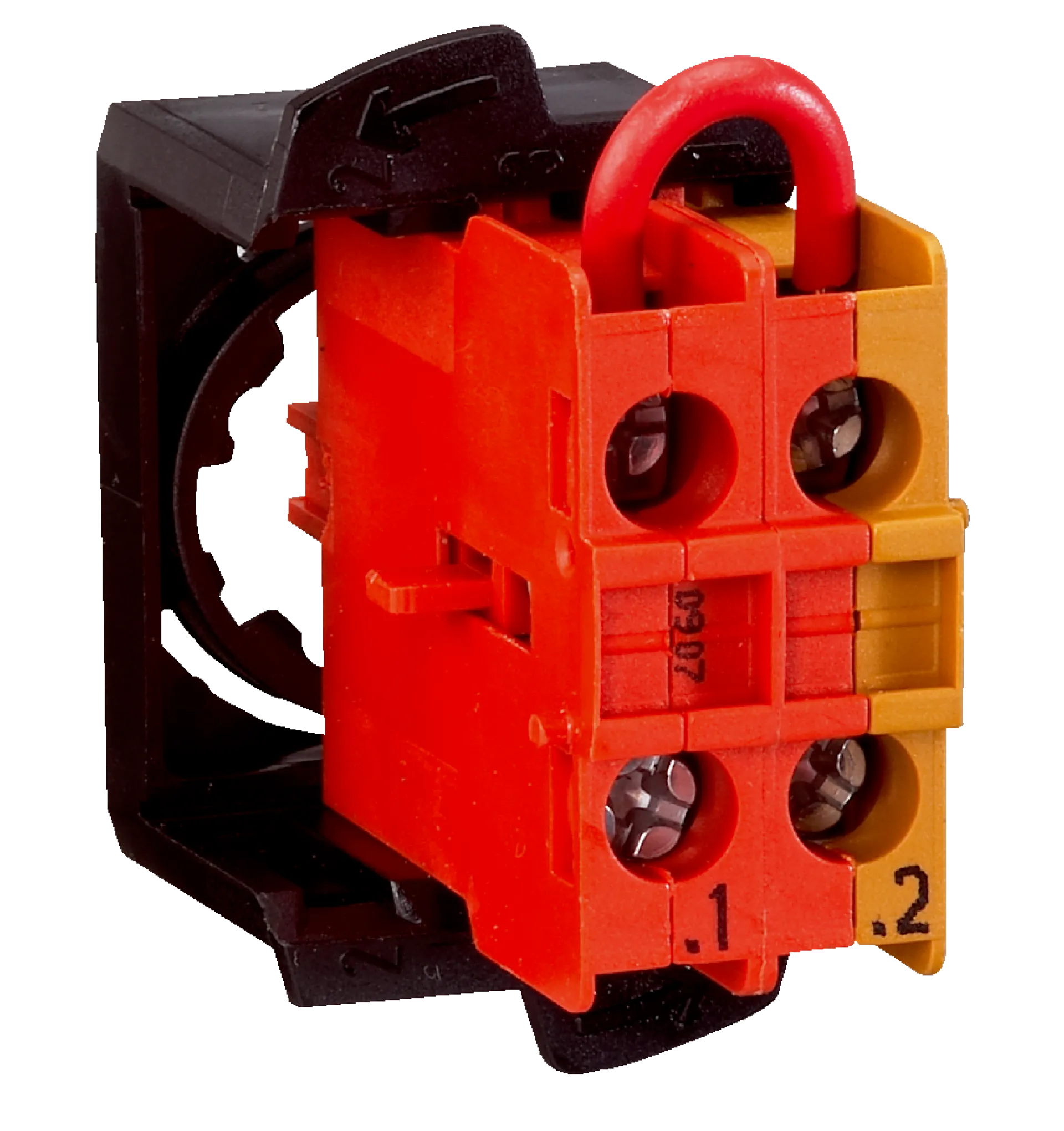

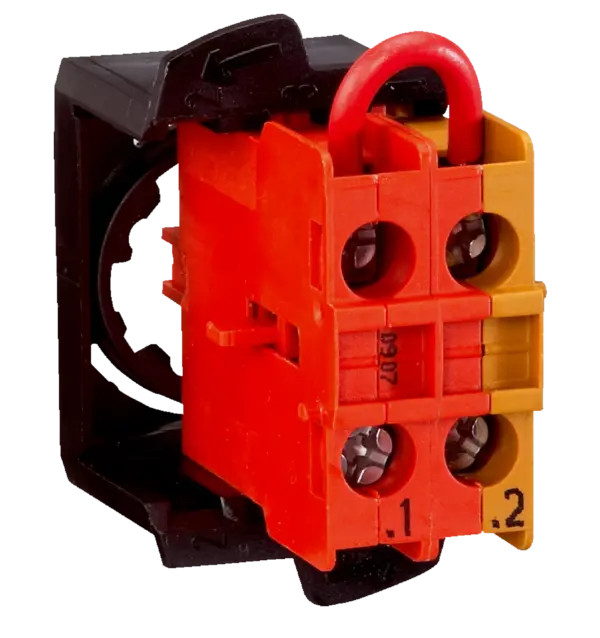

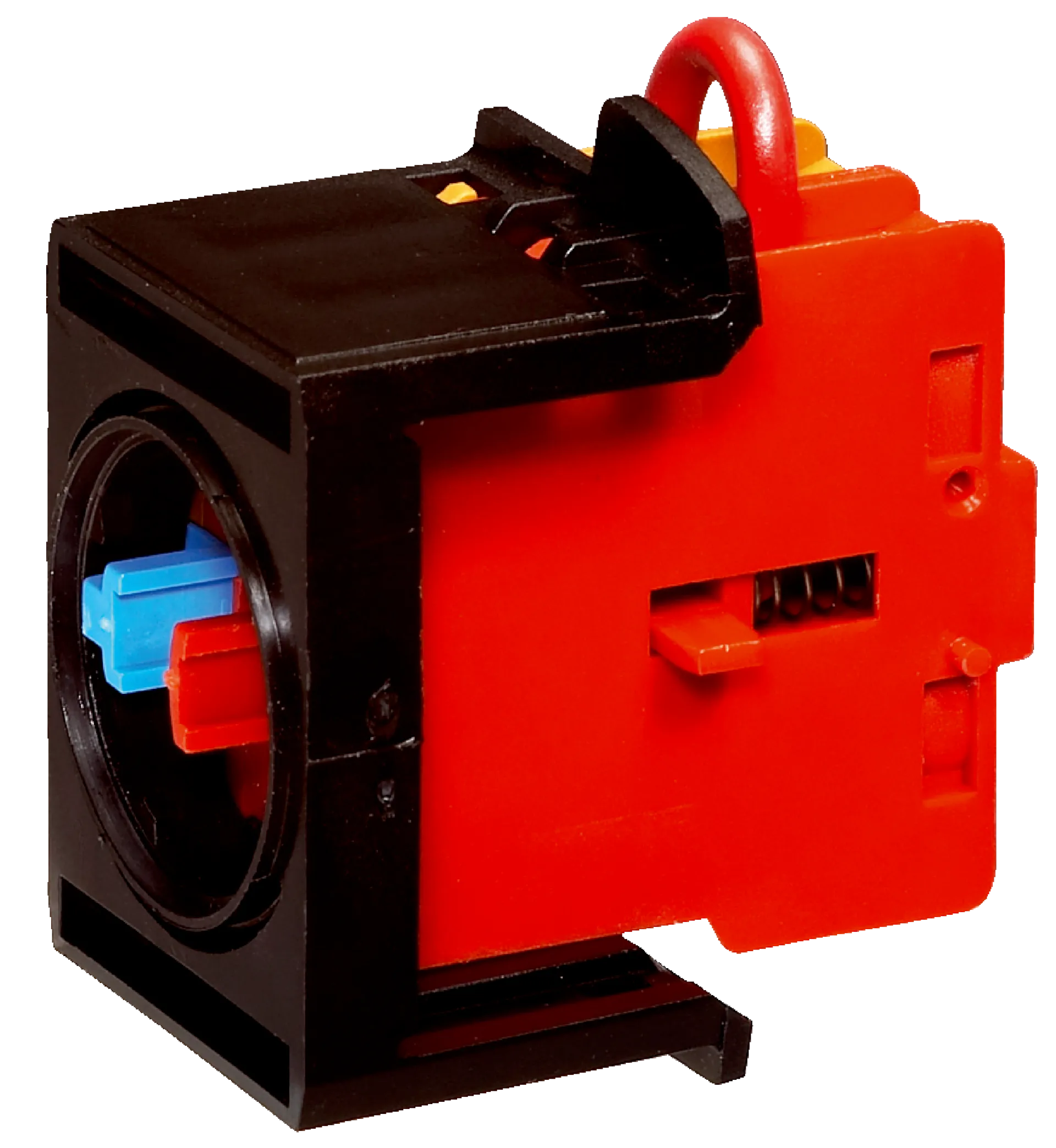

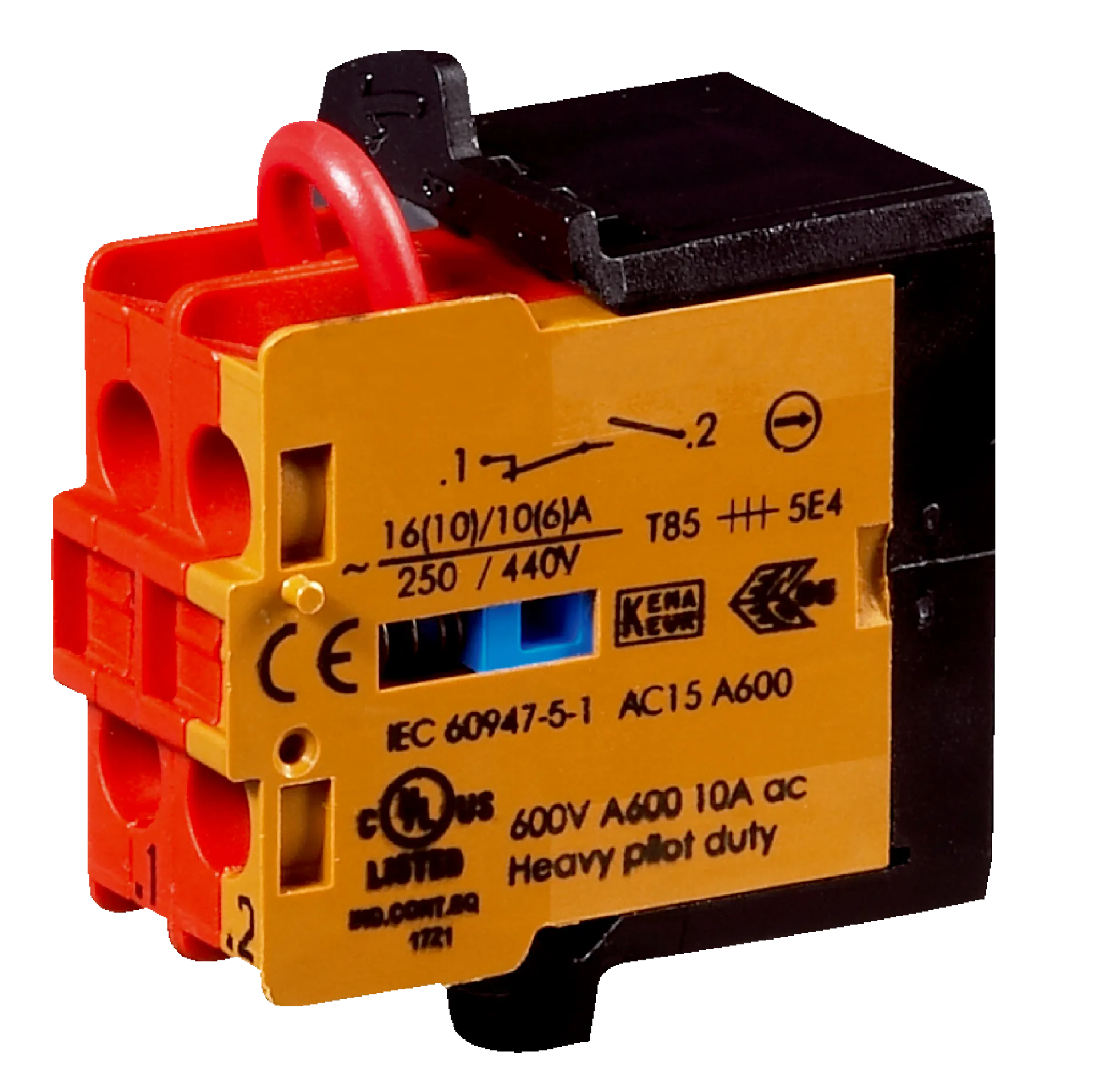

Sick ES21-CG1001
Safety switches | ES21 | ES21-CG1001 | System part: Switching element | Mounting version: Panel mount version | Positive action N/C contacts: 1 | N/O contacts: 0 | Emergency stop pushbutton (illuminab…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safety switches | ES21 | ES21-CG1001 | System part: Switching element | Mounting version: Panel mount version | Positive action N/C contacts: 1 | N/O contacts: 0 | Emergency stop pushbutton (illuminable): no | Protective collar: no
Specification
Features
| Positive action N/C contacts | 1 |
|---|---|
| N/O contacts | 0 |
| Contact module for panel mount version | ✔ |
Safety-related parameters
| B10d parameter | 250.000Â switching cycles |
|---|
Functions
| Safe series connection | None, only individual wiring (with diagnostics) |
|---|
Interfaces
| Conductor cross section | ≤ 2.5 mm² |
|---|---|
| Contact | Screw connection |
Electronics - Operating data
| Protection class | II (ENÂ 50178) |
|---|---|
| Switching principle | Slow action switching element |
| Positive action N/C contacts | 1 |
| N/O contacts | 0 |
| Usage category | AC-15/DC-13 (ENÂ 60947-5-1) |
| Rated operating current (voltage) | 3Â A (250Â VÂ AC)2Â A (24Â VÂ DC) |
| Rated insulation voltage Ui | 600Â V |
| Switching voltage | ≥ 5 V DC |
| Switching current | ≥ 1 mA |
| Electrical life | 1 x 106 switching cycles 1) |
Mechanics
| Weight | 60Â g |
|---|---|
| Mounting version | Panel mount version |
| Mechanical life | 1 x 106 switching cycles |
Ambient data
| Ambient operating temperature | –30 °C ... +85 °C |
|---|---|
| Storage temperature | –50 °C ... +85 °C |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| China RoHS | ✔ |
Classifications
| ECLASS 5.0 | 27371228 |
|---|---|
| ECLASS 5.1.4 | 27371228 |
| ECLASS 6.0 | 27371244 |
| ECLASS 6.2 | 27371244 |
| ECLASS 7.0 | 27371244 |
| ECLASS 8.0 | 27371244 |
| ECLASS 8.1 | 27371244 |
| ECLASS 9.0 | 27371244 |
| ECLASS 10.0 | 27371291 |
| ECLASS 11.0 | 27371291 |
| ECLASS 12.0 | 27371291 |
| ETIM 5.0 | EC002034 |
| ETIM 6.0 | EC002034 |
| ETIM 7.0 | EC002034 |
| ETIM 8.0 | EC002034 |
| UNSPSC 16.0901 | 39121545 |
