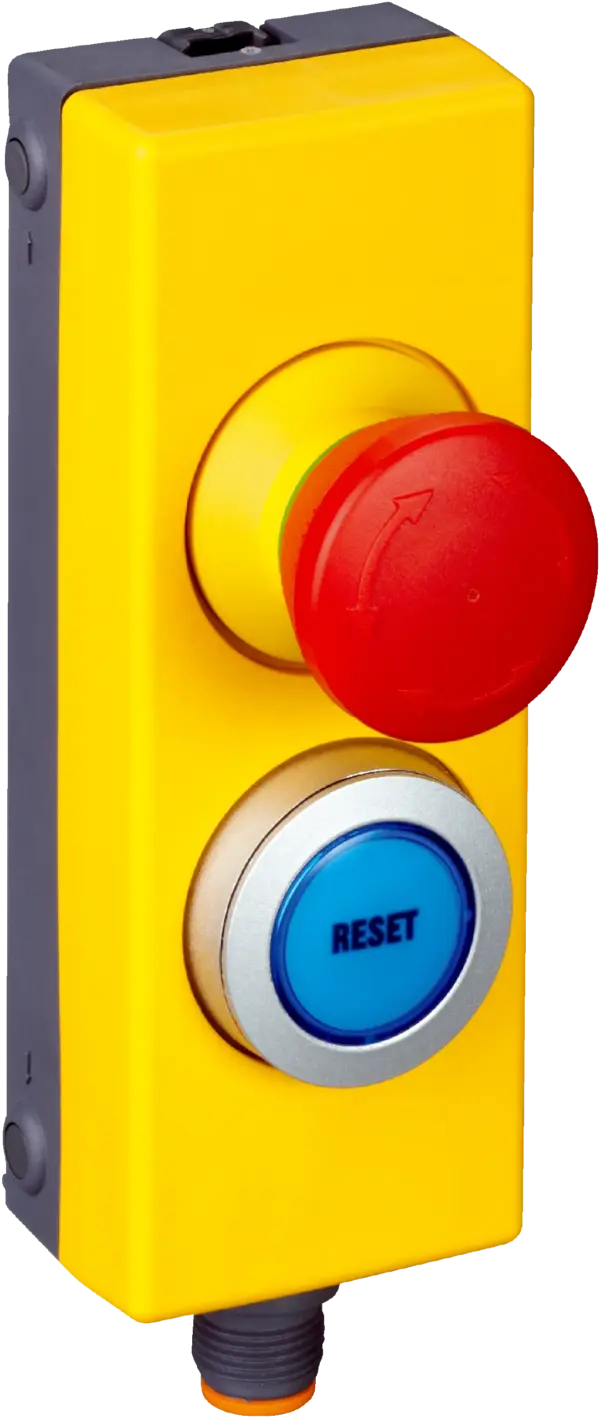

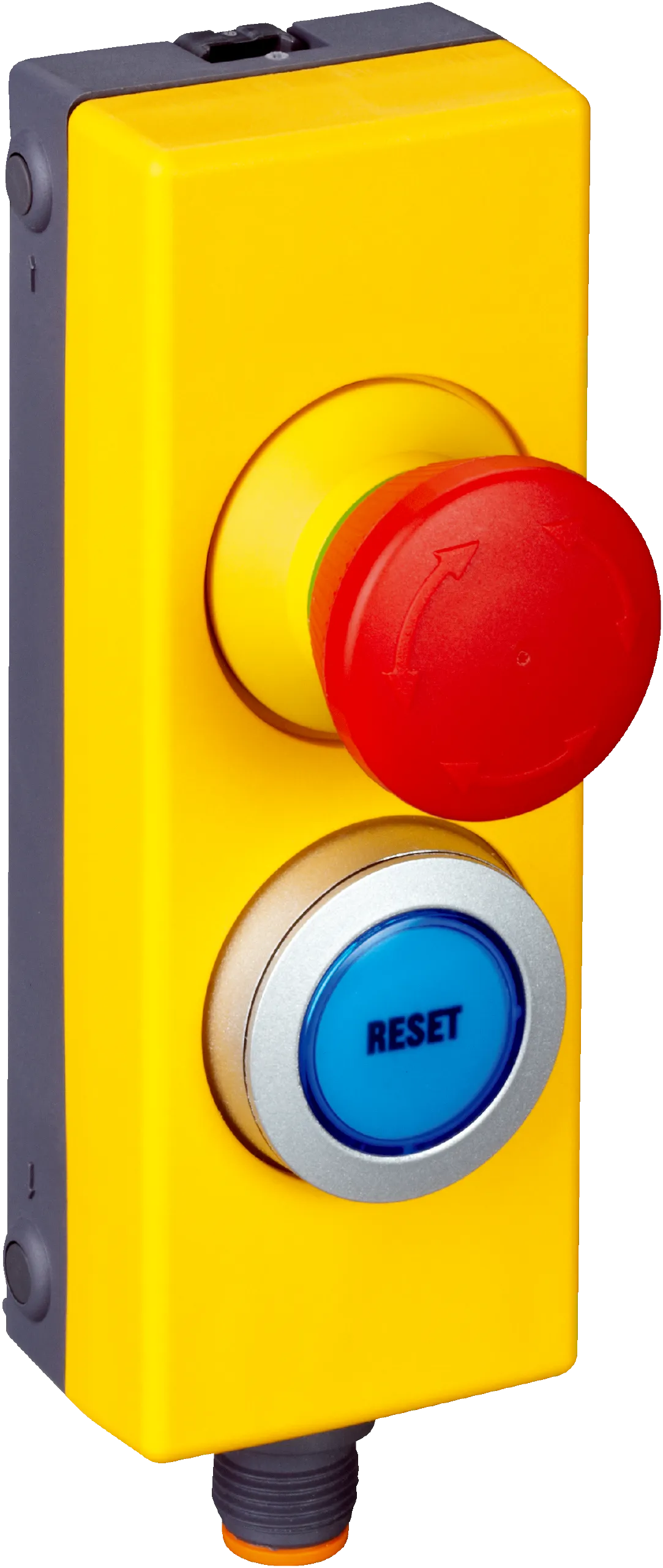

Sick ES11-SC4D8
Safety switches | ES11 | ES11-SC4D8 | System part: Complete device | Positive action N/C contacts: 2 | N/O contacts: 1 | Connection type Detail: Plug connector, M12, 8-pin | Safe series connection: Wi…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safety switches | ES11 | ES11-SC4D8 | System part: Complete device | Positive action N/C contacts: 2 | N/O contacts: 1 | Connection type Detail: Plug connector, M12, 8-pin | Safe series connection: With Flexi Loop (with diagnostics) | Emergency stop pushbutton (illuminable): no | Reset pushbutton (illuminable): yes
Specification
Features
| Positive action N/C contacts | 2 |
|---|---|
| N/O contacts | 1 |
| Reset pushbutton (illuminable) | ✔ |
| Actuation directions | 1 |
| Dimensions (W x H x D) | 40 mm x 123 mm x 52 mm |
| Items supplied | Including retaining clip and "RESET" cover |
Safety-related parameters
| B10d parameter | 2.5 x 105 switching cycles |
|---|
Functions
| Safe series connection | With Flexi Loop (with diagnostics) |
|---|
Interfaces
| Connection type | Plug connector, M12, 8-pin |
|---|---|
| Coupling nut material | PBT |
Electronics - Operating data
| Protection class | III (ENÂ 50178) |
|---|---|
| Switching principle | Slow action switching element |
| Positive action N/C contacts | 2 |
| N/O contacts | 1 |
| Switching current | 1Â mAÂ ... 100Â mA |
| Switching capacity | ≤ 250 mW |
| Switching voltage | 1Â VÂ DCÂ ... 30Â VÂ DC |
| Contact material | AgNi, 5 µm gold plated |
| Emergency stop pushbuttons | 5 x 104 switching cycles |
| Reset pushbutton | 1 x 105 switching cycles |
Electronics - Illumination
| Supply voltage Vs | 30Â VÂ AC/DC |
|---|---|
| Power consumption | 14Â mA (24Â VÂ DC) |
Mechanics
| Dimensions | 40 mm x 123 mm x 52 mm |
|---|---|
| Weight | +Â 121Â g |
| Housing material | PBT |
| Emergency stop pushbuttons | 5 x 104 switching cycles |
| Reset pushbutton | 1 x 105 switching cycles |
Ambient data
| Enclosure rating | IP65 (ENÂ 60529) |
|---|---|
| Ambient operating temperature | –25 °C ... +70 °C |
| Storage temperature | –25 °C ... +80 °C |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| China RoHS | ✔ |
| ULus approval | ✔ |
Classifications
| ECLASS 5.0 | 27371228 |
|---|---|
| ECLASS 5.1.4 | 27371228 |
| ECLASS 6.0 | 27371244 |
| ECLASS 6.2 | 27371244 |
| ECLASS 7.0 | 27371244 |
| ECLASS 8.0 | 27371244 |
| ECLASS 8.1 | 27371244 |
| ECLASS 9.0 | 27371244 |
| ECLASS 10.0 | 27371244 |
| ECLASS 11.0 | 27371244 |
| ECLASS 12.0 | 27371244 |
| ETIM 5.0 | EC002034 |
| ETIM 6.0 | EC002034 |
| ETIM 7.0 | EC002034 |
| ETIM 8.0 | EC002034 |
| UNSPSC 16.0901 | 39121545 |
