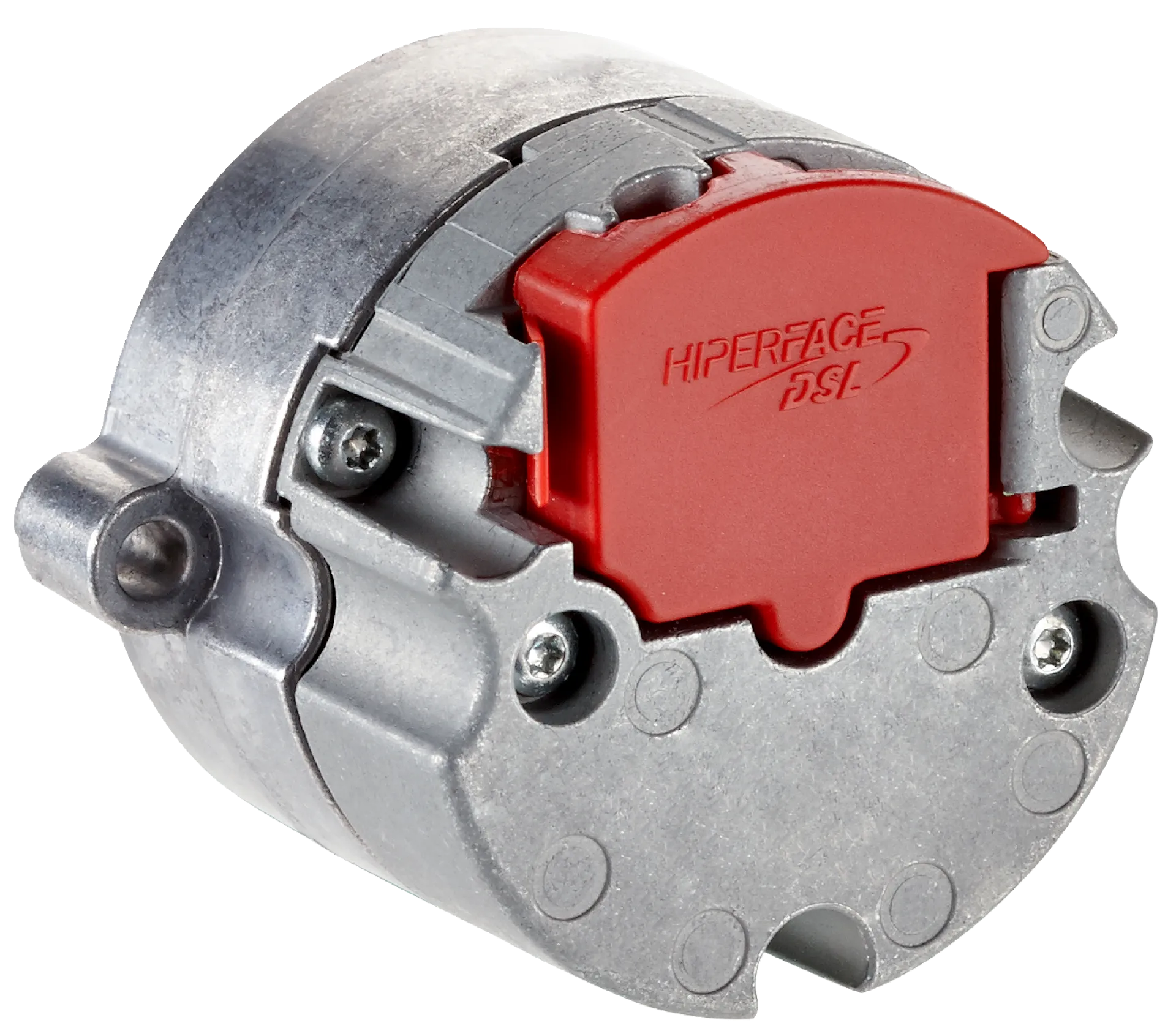

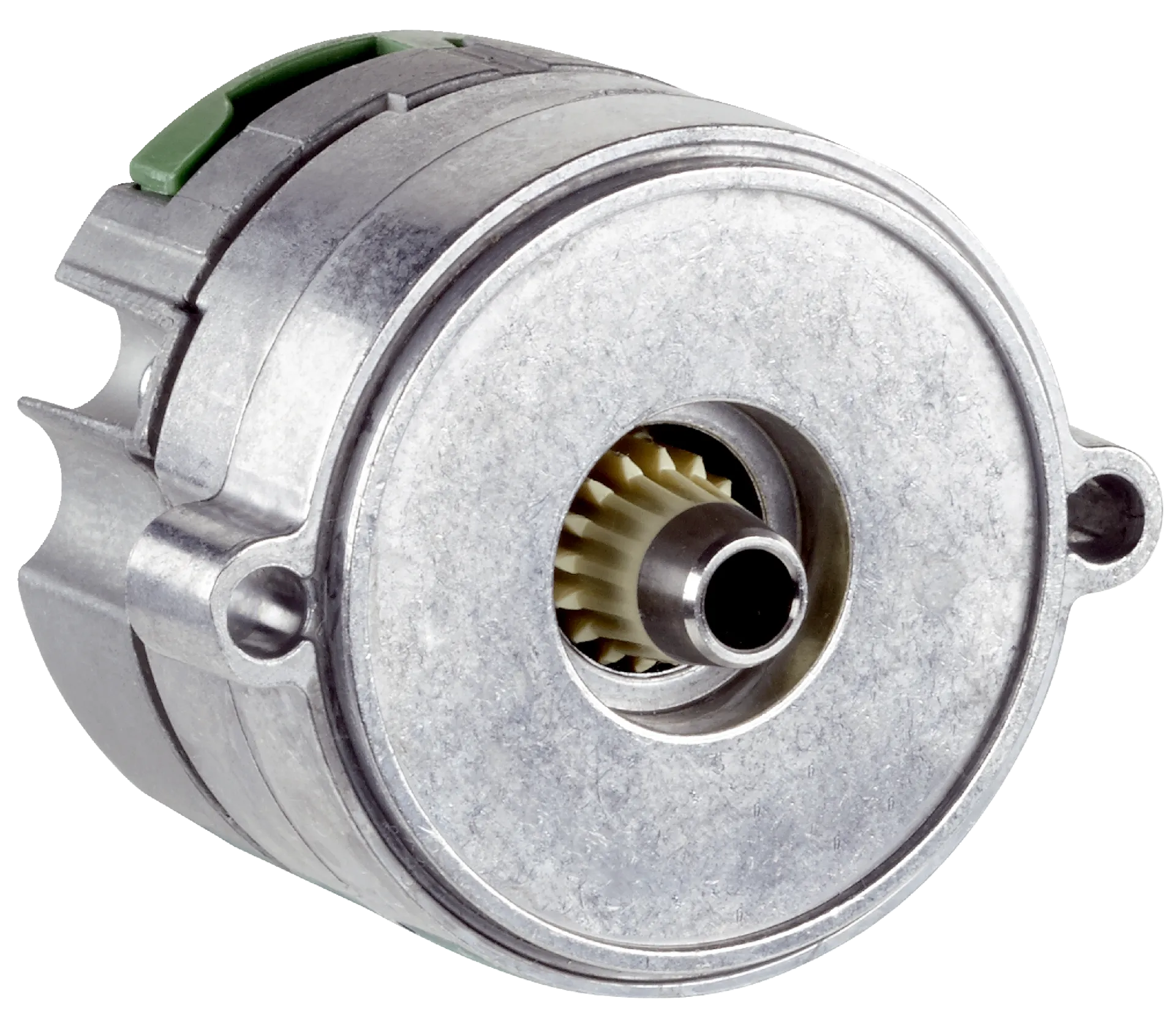

Sick EEM37-0KF0B017A
Motor feedback systems | EES/EEM37 | EEM37-0KF0B017A | Communication interface: HIPERFACE DSLĀ® | Model: Absolute Multiturn | Type: For integration | Resolution per revolution: 17 bit | Safety system:…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From ā¬20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From ā¬40
-
Warranty 1 year
-
Free 30-Day returns
Description
Motor feedback systems | EES/EEM37 | EEM37-0KF0B017A | Communication interface: HIPERFACE DSLĀ® | Model: Absolute Multiturn | Type: For integration | Resolution per revolution: 17 bit | Safety system: no | Mechanical design: Tapered shaft | Connection type: Male connector, 4-pin | Operating temperature range: ā40 Ā°CĀ … +115 Ā°C | Items supplied: M3 mounting screws for encoder housing not included with delivery.
Specification
Features
| Items supplied | M3 mounting screws for encoder housing not included with delivery. |
|---|
Safety-related parameters
| MTTFD (mean time to dangerous failure) | 170Ć years (ENĆ ISOĆ 13849)Ć 1) |
|---|
Performance
| Resolution per revolution | 17Ć bit |
|---|---|
| System accuracy | ĆĀ±Ć 240Ć Ć¢ĀĀ³, nominal position, 25Ć ĆĀ°C, filter setting 21Ć kHzĆ 1) |
| Signal noise (ĆĀ) | ĆĀ±Ć 20Ć Ć¢ĀĀ³ (nominal position, 25Ć ĆĀ°C, filter setting 21Ć kHz) |
| Number of the absolute ascertainable revolutions | 4,096 |
| Available memory area | 8,192Ć Byte |
| Measurement step per revolution | 131,072 |
Interfaces
| Code sequence | Increasing, when turning the shaft For clockwise rotation, looking in direction Ć¢ĀĀAĆ¢ĀĀ (see dimensional drawing) |
|---|---|
| Communication interface | HIPERFACE DSLĆĀ® |
| Initialization time | Max.Ć 500Ć msĆ 1) |
| Measurement external temperature resistance | 32-bit value, without prefix (1Ć ĆĀ©) 0Ć ... 209.600Ć ĆĀ©Ć 2) |
Electronics
| Connection type | Male connector, 4-pin |
|---|---|
| Supply voltage | 7Ć VĆ ... 12Ć V |
| Warm-up time voltage ramp | Max. 180Ć msĆ 1) |
| Current consumption | Ć¢ĀĀ¤Ć 150Ć mAĆ 2) |
Mechanics
| Shaft version | Tapered shaft |
|---|---|
| Dimensions | See dimensional drawing |
| Centering collar | Reduced 0.7Ć mm |
| Weight | Ć¢ĀĀ¤Ć 0.1Ć kg |
| Moment of inertia of the rotor | 1Ć gcmĆĀ² |
| Operating speed | Ć¢ĀĀ¤Ć 12,000Ć minĆ¢ĀĀ»ĆĀ¹ |
| Angular acceleration | Ć¢ĀĀ¤Ć 500,000Ć rad/sĆĀ² |
| Permissible radial shaft movement | ĆĀ±Ć 0.15Ć mm |
| Permissible axial shaft movement | ĆĀ±Ć 0.5Ć mm |
Ambient data
| Operating temperature range | Ć¢ĀĀ40Ć ĆĀ°CĆ ... +115Ć ĆĀ°CĆ 1) |
|---|---|
| Storage temperature range | Ć¢ĀĀ40Ć ĆĀ°CĆ ... +120Ć ĆĀ°C, without package |
| Relative humidity/condensation | 85Ć %, Condensation not permitted |
| Resistance to shocks | 100Ć g, 6Ć ms (according to ENĆ 60068-2-27) |
| Frequency range of resistance to vibrations | 50Ć g, 10Ć HzĆ ... 2,000Ć Hz (ENĆ 60068-2-6) |
| EMC | According to ENĆ 61000-6-2: 2016, ENĆ 61000-6-4: 2006, IECĆ 6100-6-7: 2014Ć 2) |
| Enclosure rating | IP30, When cover is closed and mating connector is attached (IECĆ 60529-1)Ć 3) |
Certificates
| EU declaration of conformity | Ć¢ĀĀ |
|---|---|
| UK declaration of conformity | Ć¢ĀĀ |
| ACMA declaration of conformity | Ć¢ĀĀ |
| China RoHS | Ć¢ĀĀ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | Ć¢ĀĀ |
Classifications
| ECLASS 5.0 | 27270590 |
|---|---|
| ECLASS 5.1.4 | 27270590 |
| ECLASS 6.0 | 27270590 |
| ECLASS 6.2 | 27270590 |
| ECLASS 7.0 | 27270590 |
| ECLASS 8.0 | 27270590 |
| ECLASS 8.1 | 27270590 |
| ECLASS 9.0 | 27270590 |
| ECLASS 10.0 | 27273805 |
| ECLASS 11.0 | 27273901 |
| ECLASS 12.0 | 27273901 |
| ETIM 5.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| UNSPSC 16.0901 | 41112113 |
