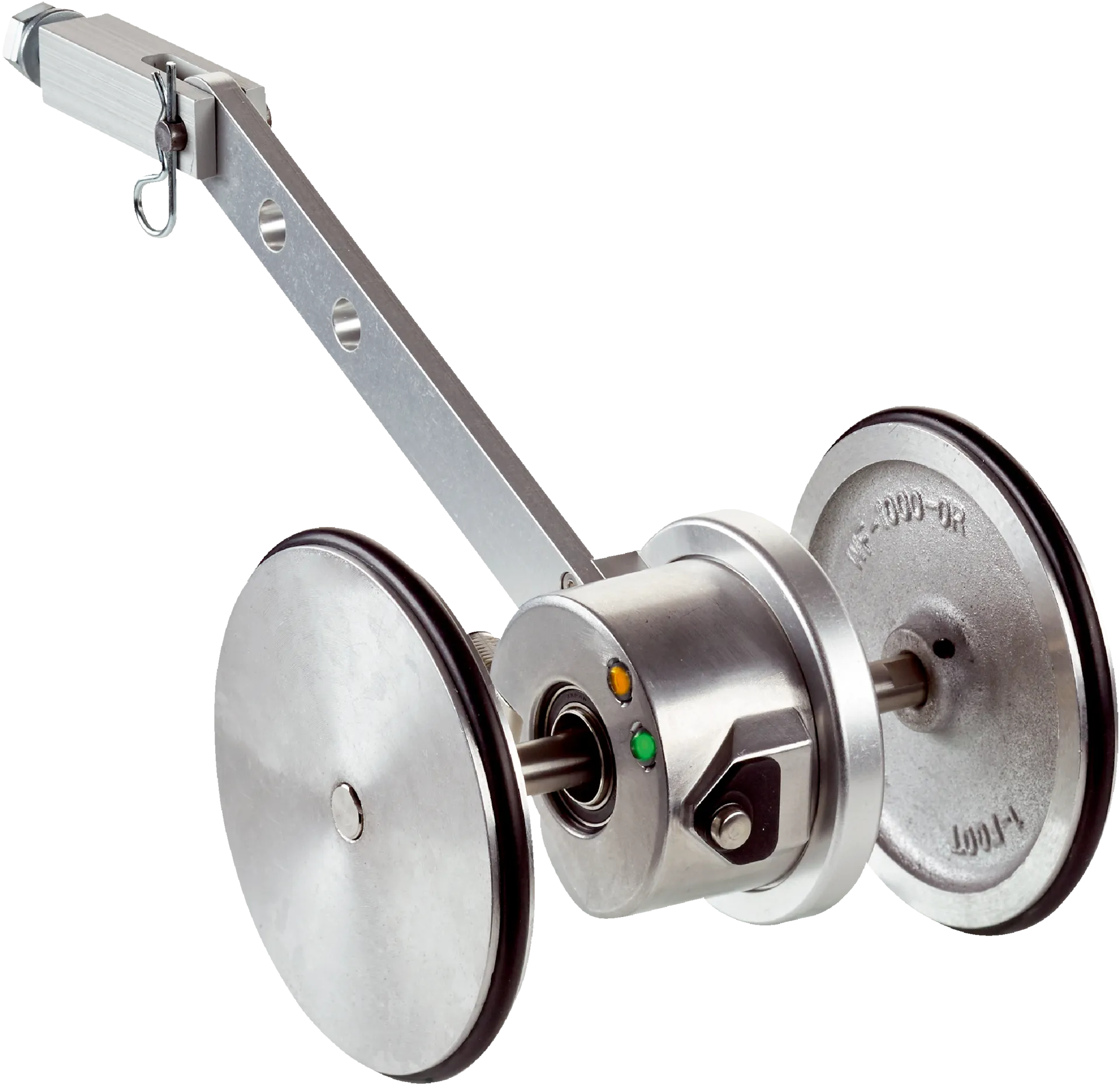

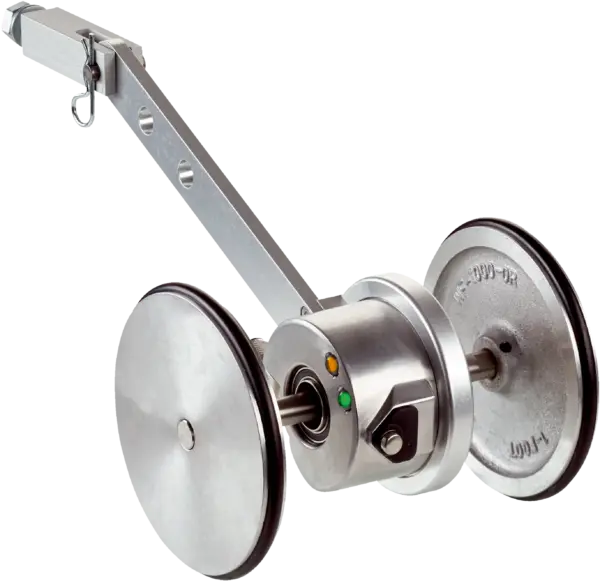

Sick DUV60E-D2KCKAAA
Measuring wheel encoders | DUV60 | DUV60E-D2KCKAAA | Measuring wheel circumference: 12 ″ | Measuring wheel surface: O-ring NBR70 | Communication interface: 4.75 V … 30 V, Incremental, TTL, HTL | Sup…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Measuring wheel encoders | DUV60 | DUV60E-D2KCKAAA | Measuring wheel circumference: 12 ″ | Measuring wheel surface: O-ring NBR70 | Communication interface: 4.75 V … 30 V, Incremental, TTL, HTL | Supply voltage: 4.75 V … 30 V | Range of pulses per revolution: 1 … 2400 | Output function: A and B output | Connection type: Male connector, M12, 8-pin, universal | Spring arm design: Over-belt yoke mount | Anti-dither: no
Specification
Safety-related parameters
| MTTFD (mean time to dangerous failure) | 275Â years (ENÂ ISOÂ 13849-1)Â 1) |
|---|
Performance
| Pulses per revolution | 1Â ... 2400Â 1) |
|---|---|
| Resolution in pulses/mm | 0.125Â mm/pulse to 304.8Â mm/pulse (type-dependent) |
| Measuring step | 90° electric/pulses per revolution |
| Measuring step deviation | ± 18°, / pulses per revolution |
| Error limits | Measuring step deviation x 3 |
| Duty cycle | 0.5 ± 5 % |
| Initialization time | < 5 ms 2) |
Interfaces
| Communication interface | Incremental |
|---|---|
| Communication Interface detail | TTLÂ / HTL |
| Parameterising data | DIPÂ switch, selectable output |
Electronics
| Operating power consumption (no load) | 120Â mA |
|---|---|
| Connection type | Male connector, M12, 8-pin, universal 1) |
| Pulses per revolution | â |
| Output voltage | â |
| Direction of rotation | â |
| Power consumption max. without load | ⤠1.25 W |
| Supply voltage | 4.75Â VÂ ... 30Â V |
| Load current max. | â¤Â 30 mA, per channel |
| Maximum output frequency | 60Â kHz |
| Reference signal, number | 1 |
| Reference signal, position | 180°, electric, gated with A |
| Reverse polarity protection | â |
| Short-circuit protection of the outputs | â |
Mechanics
| Measuring wheel circumference | 12Â â³ |
|---|---|
| Measuring wheel surface | O-ring NBR70Â 1) |
| Spring arm design | Over-belt yoke mount |
| Mass | 0.9 kg 2) |
| Shaft | Stainless steel |
| Flange | Aluminum |
| Housing | Aluminum |
| Cable | PVC |
| Spring element | Spring steel |
| Measuring wheel, spring arm | Aluminum |
| Yoke | Aluminum |
| Counterweight | Aluminum |
| Start up torque | 0.5Â Ncm |
| Operating torque | 0.4Â Ncm |
| Operating speed | 1,500 minâ»Â¹ |
| Bearing lifetime | 3.6Â x 109Â revolutions |
| Maximum travel/deflection of spring arm | 40 mm 3) |
| Recommended pretension | 20 mm 3) |
| Max. permissible working area for the spring (continuous operation) | ± 10 mm |
Ambient data
| EMC | According to ENÂ 61000-6-2 and ENÂ 61000-6-3 |
|---|---|
| Enclosure rating | IP65Â 1) |
| Permissible relative humidity | 90Â % (Condensation not permitted) |
| Operating temperature range | â30 °C ... +70 °C |
| Storage temperature range | â40 °C ... +75 °C |
| Resistance to shocks | 100Â g (ENÂ 60068-2-27) |
| Resistance to vibration | 30 g, 10 Hz ... 2,000 Hz (EN 60068-2-6) |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27270501 |
|---|---|
| ECLASS 5.1.4 | 27270501 |
| ECLASS 6.0 | 27270590 |
| ECLASS 6.2 | 27270590 |
| ECLASS 7.0 | 27270501 |
| ECLASS 8.0 | 27270501 |
| ECLASS 8.1 | 27270501 |
| ECLASS 9.0 | 27270501 |
| ECLASS 10.0 | 27270790 |
| ECLASS 11.0 | 27270707 |
| ECLASS 12.0 | 27270504 |
| ETIM 5.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| UNSPSC 16.0901 | 41112113 |
