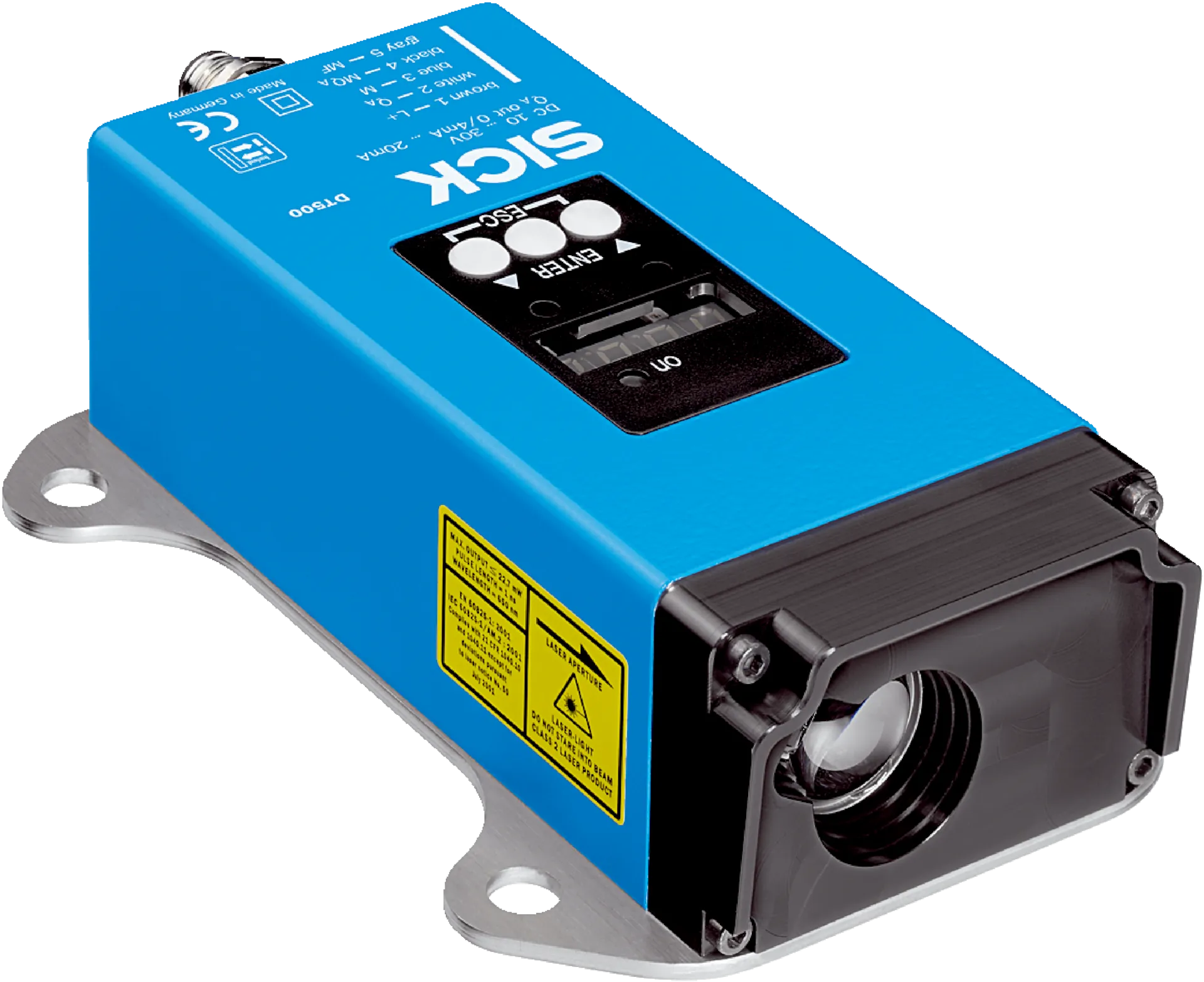

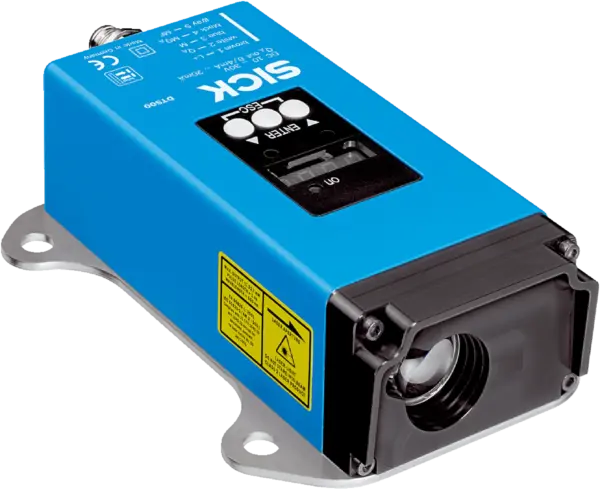

Sick DT500-A111
Laser distance sensors | Dx500 | DT500-A111 | Communication interface: – | Measuring range: 0.2 m … 30 m, 90% remission factor, 0.8 m … 15 m, 6% remission factor | Laser class: 2 | Light source: L…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Laser distance sensors | Dx500 | DT500-A111 | Communication interface: – | Measuring range: 0.2 m … 30 m, 90% remission factor, 0.8 m … 15 m, 6% remission factor | Laser class: 2 | Light source: Laser, red | Minimum response time: 250 ms | Type of analog output: Current output | Multifunctional input (MF): PNP
Specification
Features
| Measuring range | 0.2 m ... 30 m, 90% remission factor 1) 2)0.8 m ... 15 m, 6% remission factor 1) 2) |
|---|---|
| Target | Natural objects |
| Resolution | 12Â bit |
| Repeatability | 1 mm 3) 4) |
| Measurement accuracy | ± 3 mm |
| Response time | 250Â ms |
| Output time | 250Â ms |
| Light source | Laser, red 5) |
| Type of light | Visible red light |
| Typ. light spot size (distance) | 10Â mm (at 7Â m) |
| Normative reference | IECÂ 60825-1:2014, ENÂ 60825-1:2014 |
| Laser class | 2 |
| MTTFD | 101Â years |
| DCavg | 0% |
Interfaces
| Number | 1 |
|---|---|
| Type | Current output |
| Current | 0Â mAÂ ... 20Â mAÂ 1) |
| Multifunctional input (MF) | PNPÂ 2)Â 3) |
| Laser-off input | > 12Â V |
Electronics
| Supply voltage UB | DC 10 V ... 30 V, reverse polarity protectedUV ⥠DC 24 V for devices with heating |
|---|---|
| Power consumption | Typ. 3 W |
| Ripple | 5 Vpp 1) |
| Initialization time | 500Â ms |
| Enclosure rating | IP65 |
| Protection class | IIÂ 2) |
Mechanics
| Dimensions (W x H x D) | 69 mm x 50 mm x 153 mm |
|---|---|
| Housing material | Metal (Aluminum die cast) |
| Window material | Glass |
| Weight | 1,000Â g |
Ambient data
| Ambient temperature, operation | â10 °C ... +45 °Câ10 °C ... +75 °C, operation with cooling case |
|---|---|
| Ambient temperature, storage | â25 °C ... +75 °C |
| Temperature drift | Typ. 0.05 mm/K |
| Typ. Ambient light immunity | â¤Â 3,000 lx |
| Mechanical load | Shock: (ENÂ 600 68-2-27 / â2-29)Sine: (ENÂ 600 68-2-6)Noise: (ENÂ 600 68-2-64) |
| Electromagnetic compatibility (EMC) | ENÂ 61000-6-2 / ENÂ 61000-6-3 |
Classifications
| ECLASS 5.0 | 27270801 |
|---|---|
| ECLASS 5.1.4 | 27270801 |
| ECLASS 6.0 | 27270801 |
| ECLASS 6.2 | 27270801 |
| ECLASS 7.0 | 27270801 |
| ECLASS 8.0 | 27270801 |
| ECLASS 8.1 | 27270801 |
| ECLASS 9.0 | 27270801 |
| ECLASS 10.0 | 27270801 |
| ECLASS 11.0 | 27270801 |
| ECLASS 12.0 | 27270916 |
| ETIM 5.0 | EC001825 |
| ETIM 6.0 | EC001825 |
| ETIM 7.0 | EC001825 |
| ETIM 8.0 | EC001825 |
| UNSPSC 16.0901 | 41111613 |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
