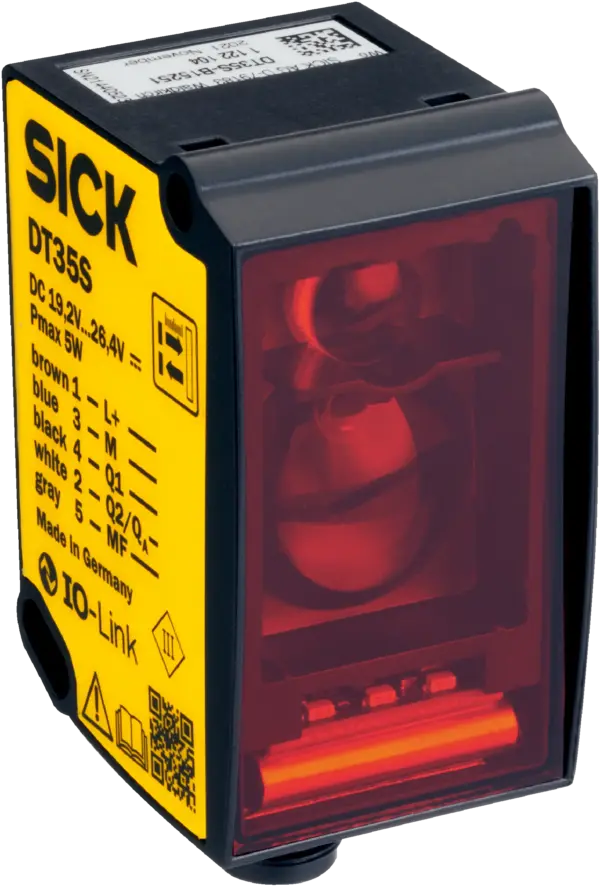

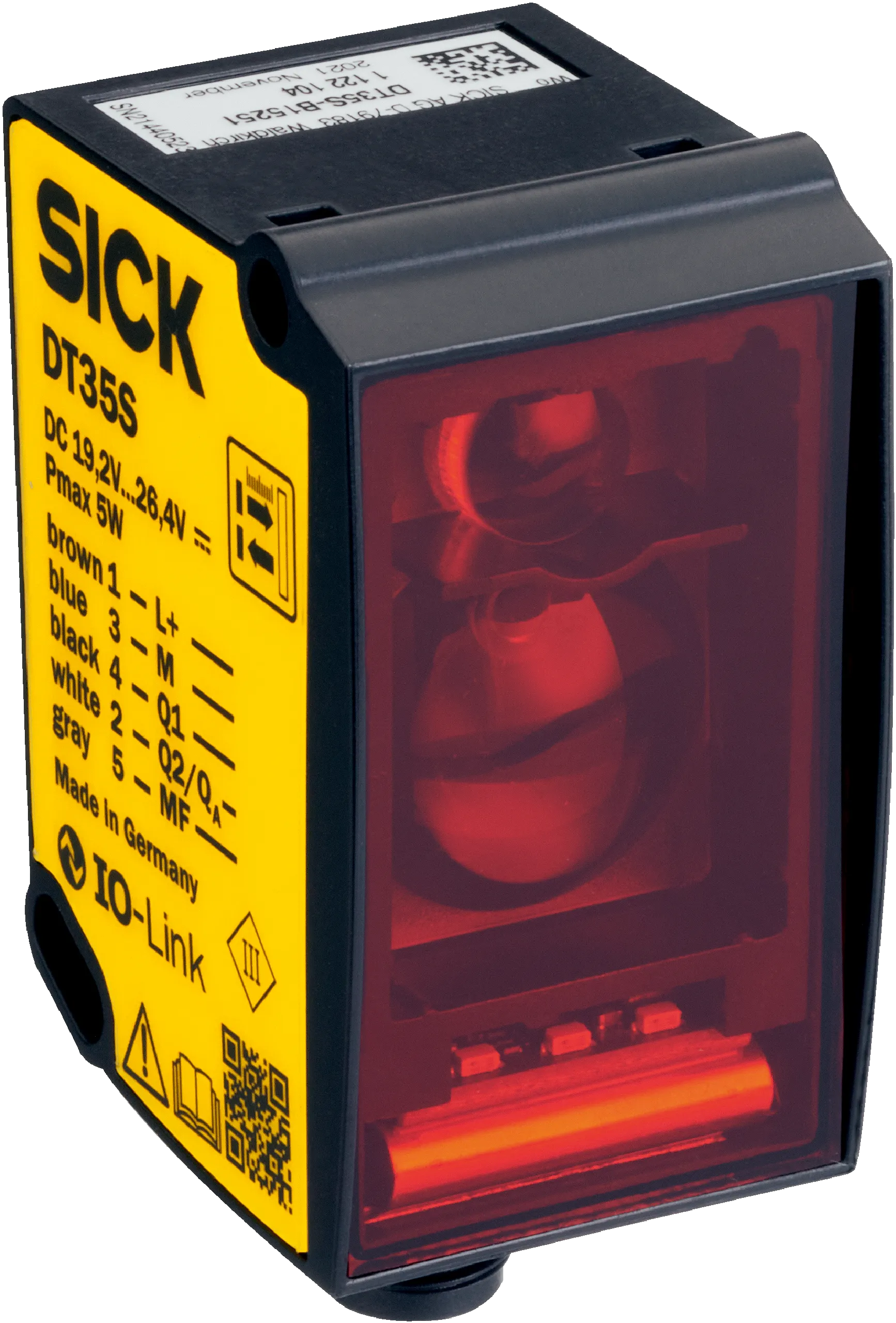

Sick DT35S-B15251

Laser distance sensors | Dx35 | DT35S-B15251 | Communication interface: IO-Link | Laser class: 2 | Light source: Laser, red | Minimum response time: 15 ms | Digital output: 1 … 2 x push-pull: PNP/NP…

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Laser distance sensors | Dx35 | DT35S-B15251 | Communication interface: IO-Link | Laser class: 2 | Light source: Laser, red | Minimum response time: 15 ms | Digital output: 1 … 2 x push-pull: PNP/NPN | Type of analog output: Current output | Multifunctional input (MF): 1 x, Voltage level MF input active: High ≥ 14 V (applies only in the specified supply voltage range), Voltage level MF input inactive: Low ≤ 5 V (applies only in the specified supply voltage range)

Specification

Features

Safety-related measuring range50 mm ... 8,500 mm, 90% remission factor 1)50 mm ... 4,500 mm, 20% reflection factor50 mm ... 3,000 mm, 10% reflection factor50 mm ... 2,000 mm, 6% remission factor
TargetNatural objects
Resolution1Â mm
Systematic error< 25 mm 2)
Statistical error< 25 mm 2) 3)
Response time15 ms ... 50 ms 4) 5)
Light sourceLaser, red 6)
Type of lightVisible red light
Typ. light spot size (distance)15 mm x 15 mm (at 2 m)
Normative referenceIECÂ 60825-1:2014, ENÂ 60825-1:2014
Laser class2
Additional functionAdjustable speed: slow and mediumTeach-in of analog output and invertible analog outputConfigurable Q2 output: current output / digital outputSwitching mode: Distance to Object (DtO) / switching window / object between sensor and background (ObSB)Teach-in of digital outputMultifunctional input: laser off / deactivated
CategoryB (ENÂ ISOÂ 13849-1)
Performance levelPL b (ENÂ ISOÂ 13849-1)
Performance class SRS/SRSSB (IECÂ TS 62998-1)
PFH (mean probability of a dangerous failure per hour)1,4 x 10-6
Max. cumulative downtime per year<Â 5Â min (IECÂ TS 62998-1)
ConformitiesENÂ ISOÂ 13849-1, IECÂ TS 62998-1, ENÂ ISOÂ 13482, ANSI/ITSDF B56.5
TM (mission time)20Â years (ENÂ ISOÂ 13849-1)Â 7)

Interfaces

IO-Link✔ , V1.1
FunctionProcess data
Data transmission rate38,4Â kbit/s (COM2)
Number1Â ... 2Â 1)Â 2)
TypePush-pull: PNP/NPN
FunctionConfigurable Q2 output: analog output / digital output
Maximum output current IA≤ 100 mA
Number1
TypeCurrent output
Current4 mA ... 20 mA, ≤ 450 Ω
Resolution12Â bit
Multifunctional input (MF)1 x 3)Voltage level MF input active: High ≥ 14 V (applies only in the specified supply voltage range)Voltage level MF input inactive: Low ≤ 5 V (applies only in the specified supply voltage range)
Hysteresis10Â mm25Â mm50Â mm
Interface for parametrizationSOPAS ETÂ 4)

Electronics

Supply voltage UBDC 19.2Â VÂ ... 26.4Â VÂ 1)
Power consumption≤ 1.7 W 2)
Ripple≤ 5 Vpp 3)
Initialization time≤ 500 ms
Warm-up time≤ 20 min
DisplayLEDs
Enclosure ratingIP67
Protection classIII
Electrical safetyIECÂ 61010-1 (ed. 3)
Connection typeMale connector, M12, 5-pin

Mechanics

Dimensions (W x H x D)32 mm x 58.67 mm x 42.7 mm
Housing materialPlastic (ABS/PC)
Window materialPlastic (PMMA)
Weight65Â g

Ambient data

Ambient temperature, operation–25 °C ... +50 °C, Uv ≤ 24 V
Ambient temperature, storage–40 °C ... +75 °C
Max. rel. humidity (not condensing)≤ 95 %
Temperature drift0.5Â mm/K
Typ. Ambient light immunityDirect exposure: 3,000Â lxIndirect exposure: 40,000Â lx
Vibration resistanceENÂ 60068-2-6, ENÂ 60068-2-64
Shock resistanceENÂ 60068-2-27
Electromagnetic compatibility (EMC)ENÂ 61000-6-2, ENÂ 61000-6-3, ENÂ 61000-6-4Â 1)

Classifications

ECLASS 5.027270801
ECLASS 5.1.427270801
ECLASS 6.027270801
ECLASS 6.227270801
ECLASS 7.027270801
ECLASS 8.027270801
ECLASS 8.127270801
ECLASS 9.027270801
ECLASS 10.027270801
ECLASS 11.027270801
ECLASS 12.027270916
ETIM 5.0EC001825
ETIM 6.0EC001825
ETIM 7.0EC001825
ETIM 8.0EC001825
UNSPSC 16.090141111613

Certificates

EU declaration of conformity✔
UK declaration of conformity✔
ACMA declaration of conformity✔
Moroccan declaration of conformity✔
China RoHS✔
TÜV approval✔
TÜV approval annex✔
cTUVus certificate✔
EC-Type-Examination approval✔
Information according to Art. 3 of Data Act (Regulation EU 2023/2854)✔
