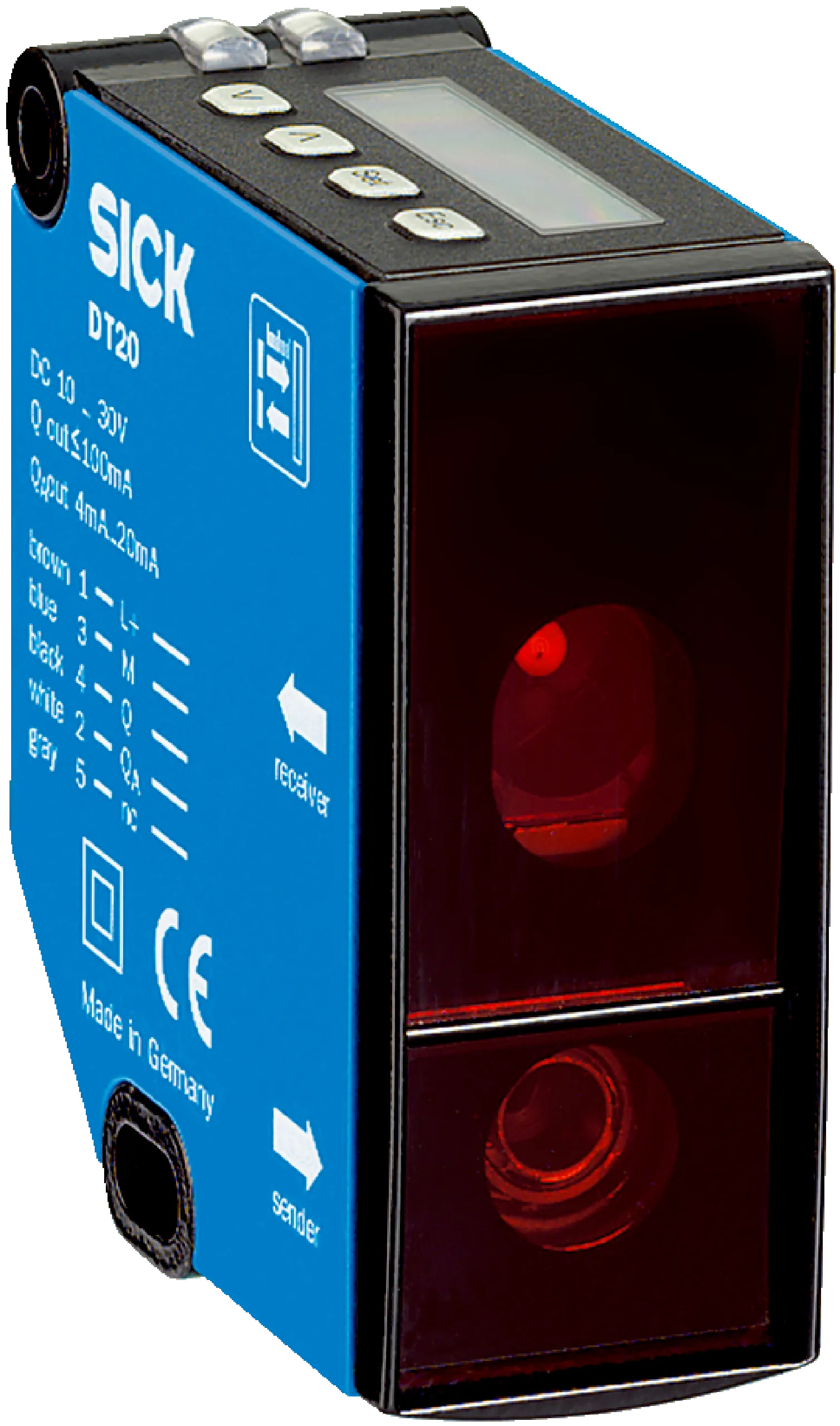

Sick DT20-P214B
Laser distance sensors | DT20 Hi | DT20-P214B | Digital output: 1 x PNP | Type of analog output: Current output | Measuring range: 100 mm … 600 mm | Linearity: ± 2,000 µm | Laser class: 2 | Typ. lig…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Laser distance sensors | DT20 Hi | DT20-P214B | Digital output: 1 x PNP | Type of analog output: Current output | Measuring range: 100 mm … 600 mm | Linearity: ± 2,000 µm | Laser class: 2 | Typ. light spot size (distance): 3 mm x 6 mm (600 mm) | Housing material: Metal | Connection type: Male connector, M12, 5-pin, swivel connector unit
Specification
Features
| Measuring range | 100 mm ... 600 mm 1) |
|---|---|
| Repeatability | â¥Â 0.5 mm 1) 2) 3) |
| Linearity | ± 2,000 µm ... ± 2 mm 3) 4) |
| Response time | ⥠2.5 ms 2) |
| Measuring frequency | â¤Â 400 Hz 1) |
| Output time | ⥠2.5 ms |
| Light source | Laser, red |
| Typ. light spot size (distance) | 3 mm x 6 mm (600 mm) |
| Normative reference | IECÂ 60825-1:2014, ENÂ 60825-1:2014 |
| Laser class | 2 |
| Additional function | Set moving average fast/medium/slowSwitching mode: distance to object (DtO)Teach-in of digital outputInvertable digital outputTeach-in of analog outputInvertable analog outputMultifunctional input: laser off / external teach-in / deactivatedSwitch-off displayLock user interface |
| MTTFD | 101Â years |
| DCavg | 0% |
Interfaces
| Number | 1Â 1) |
|---|---|
| Type | PNP |
| Maximum output current IA | â¤Â 100 mA |
| Number | 1 |
| Type | Current output |
| Current | 4 mA ... 20 mA, â¤Â 300 Ω |
| Resolution | 12Â bit |
| Multifunctional input (MF) | 1 x MF 2) |
Electronics
| Supply voltage UB | DC 10Â VÂ ... 30Â VÂ 1) |
|---|---|
| Power consumption | â¤Â 1.8 W 2) |
| Ripple | â¤Â 5 Vpp 3) |
| Warm-up time | â¤Â 10 min |
| Display | LC display, 2Â x LED |
| Enclosure rating | IP65 (ENÂ 60529) |
| Protection class | II |
Mechanics
| Dimensions (W x H x D) | 24.3 mm x 72.4 mm x 54.1 mm |
|---|---|
| Housing material | Metal (zinc diecast) |
| Window material | Plastic (PMMA) |
| Weight | 135Â g |
Ambient data
| Ambient temperature, operation | â20 °C ... +55 °C, Operating temperature at VS = 24 V |
|---|---|
| Ambient temperature, storage | â20 °C ... +60 °C |
| Temperature drift | 0.25Â mm/KÂ 1) |
| Typ. Ambient light immunity | Artificial light: â¤Â 3,000 lxSunlight: â¤Â 10,000 lx |
| Vibration resistance | ENÂ 60068-2-6, ENÂ 60068-2-64 |
| Shock resistance | ENÂ 60068-2-27 |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
Classifications
| ECLASS 5.0 | 27270801 |
|---|---|
| ECLASS 5.1.4 | 27270801 |
| ECLASS 6.0 | 27270801 |
| ECLASS 6.2 | 27270801 |
| ECLASS 7.0 | 27270801 |
| ECLASS 8.0 | 27270801 |
| ECLASS 8.1 | 27270801 |
| ECLASS 9.0 | 27270801 |
| ECLASS 10.0 | 27270801 |
| ECLASS 11.0 | 27270801 |
| ECLASS 12.0 | 27270916 |
| ETIM 5.0 | EC001825 |
| ETIM 6.0 | EC001825 |
| ETIM 7.0 | EC001825 |
| ETIM 8.0 | EC001825 |
| UNSPSC 16.0901 | 41111613 |
