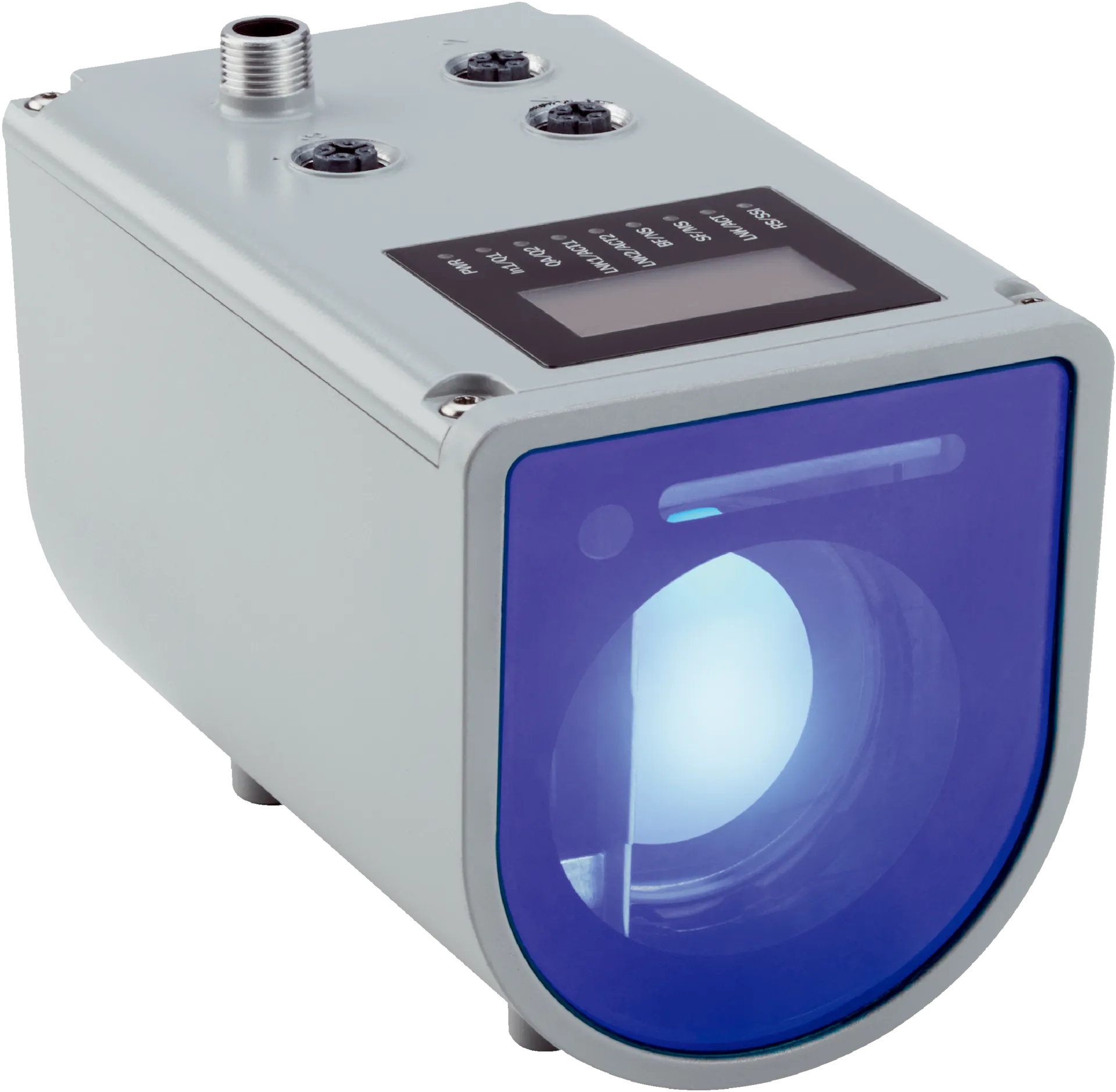

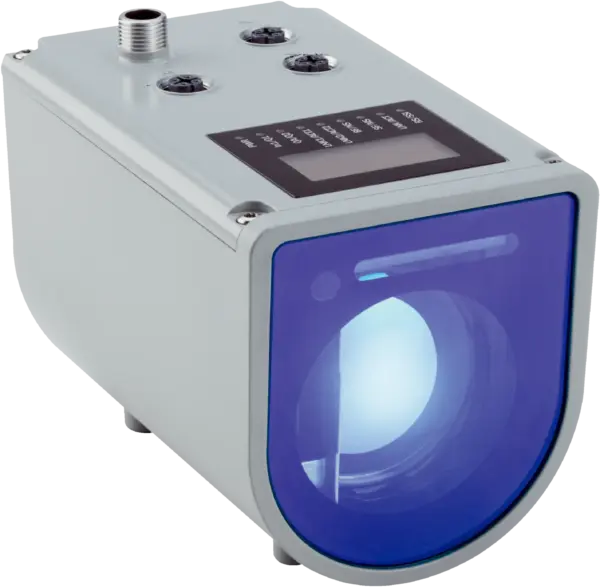

Sick DT1000-S11112
Laser distance sensors | Dx1000 | DT1000-S11112 | Target: Natural objects | Measuring range: 0.2 m … 155 m, 6% remission factor, 0.2 m … 460 m, 90% remission factor | Repeatability: ≥ 1 mm, See re…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Laser distance sensors | Dx1000 | DT1000-S11112 | Target: Natural objects | Measuring range: 0.2 m … 155 m, 6% remission factor, 0.2 m … 460 m, 90% remission factor | Repeatability: ≥ 1 mm, See repeatability characteristic lines | Accuracy: Typ. ± 15 mm | Communication interface: Ethernet, Serial, SSI, PROFINET | Type of analog output: Current output
Specification
Features
| Measurement principle | HDDM+ |
|---|---|
| Measuring range | 0.2 m ... 155 m, 6% remission factor 1) 2) 3)0.2 m ... 460 m, 90% remission factor 1) 2) 3) |
| Target | Natural objects |
| Resolution | 1 µm ... 100,000 µm, adjustable 4) |
| Repeatability | â¥Â 1 mm, See repeatability characteristic lines 1) 5) 6) 7) |
| Measurement accuracy | Typ. ± 15 mm 8) 9) |
| Response time | 3 ms ... 384 ms 7) |
| Measurement cycle time | 1Â ms4Â ms16Â ms64Â ms128Â ms |
| Output time | ⥠1 ms 10) |
| Typ. light spot size (distance) | 5 mm x 20 mm (at 1 m) 11) |
| Normative reference | IECÂ 60825-1:2014, ENÂ 60825-1:2014 |
| Laser class | 1 |
| Average laser service life (at 25 °C) | 100,000 h 12) |
| Filter | Rain and snow filterFog filterMoving average distance valueKalman filterMoving average speed value |
| Max. object temperature | +1,400 °C 13) |
| Additional function | Selection of relevant distance and signal level rangeSelection of first or last echo in selected distance and signal level range |
| Max. movement speed | 128Â m/s |
| MTTFD | 101Â years |
| DCavg | 0% |
Interfaces
| Ethernet | â , TCP/IP |
|---|---|
| Function | Parameterization, output of measurement data |
| Data transmission rate | 10/100Â MBit/s |
| Serial | â , RS-422 |
| Remark | Switchable to SSI |
| SSI | â |
| Remark | Switchable to RS-422 |
| Function | Output of measurement data |
| PROFINET | â |
| Function | Parameterization, output of measurement data |
| Network load class | III |
| In1/Q1 | Digital input, digital output (Switchable) |
| QA/Q2 | Analog output, digital output (Switchable) |
| Digital input | Internal pull-down circuitHIGH switching voltage: min. 13Â VÂ ... max. supply voltageLOW switching voltage: max. 5Â VSwitching functions: deactivate measuring laser, activate alignment laser, preset |
| Number | 0Â ... 2Â 1)Â 2) |
| Type | Push-pull: PNP/NPN |
| Maximum output current IA | â¤Â 100 mA |
| Number | 1 |
| Type | Current output |
| Current | 4Â mAÂ ... 20Â mAÂ 3) |
| Resolution | 16Â bit |
Electronics
| Supply voltage UB | DC 18Â VÂ ... 30Â V, reverse polarity protected |
|---|---|
| Power consumption | â¤Â 22 W, With heating switched off 1)â¤Â 35 W, With heating switched on 1) |
| Ripple | â¤Â 5 Vpp 2) |
| Initialization time | >Â 30Â s |
| Display | Graphical, resistive touch display, status LEDs |
| Enclosure rating | IP65Â 3)IP67Â 3) |
| Protection class | III (ENÂ 61140) |
Mechanics
| Dimensions (W x H x D) | 84 mm x 104.4 mm x 140.5 mm |
|---|---|
| Housing material | Metal (Aluminum alloy (AlSi12)) |
| Window material | Glass |
| Weight | 1,000Â g |
Ambient data
| Ambient temperature, operation | â40 °C ... +55 °C 1)â40 °C ... +95 °C, operation with cooling case |
|---|---|
| Ambient temperature, storage | â40 °C ... +75 °C |
| Max. rel. humidity (not condensing) | â¤Â 95 % |
| Effect of air pressure | 0.3Â ppm/hPa |
| Effect of air temperature | â1Â ppm/K |
| Temperature drift | Typ. 0.25 mm/K |
| Typ. Ambient light immunity | â¤Â 100,000 lx |
| Mechanical load | Shock: 30Â g / 6Â ms according to DINÂ ENÂ 60068-2-27 (Ea), 6Â axesContinuous shock: 25Â g / 6Â ms according to DINÂ ENÂ 60068-2-27 (fatigue), 500Â shocks, 6Â axes |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27270801 |
|---|---|
| ECLASS 5.1.4 | 27270801 |
| ECLASS 6.0 | 27270801 |
| ECLASS 6.2 | 27270801 |
| ECLASS 7.0 | 27270801 |
| ECLASS 8.0 | 27270801 |
| ECLASS 8.1 | 27270801 |
| ECLASS 9.0 | 27270801 |
| ECLASS 10.0 | 27270801 |
| ECLASS 11.0 | 27270801 |
| ECLASS 12.0 | 27270916 |
| ETIM 5.0 | EC001825 |
| ETIM 6.0 | EC001825 |
| ETIM 7.0 | EC001825 |
| ETIM 8.0 | EC001825 |
| UNSPSC 16.0901 | 41111613 |
