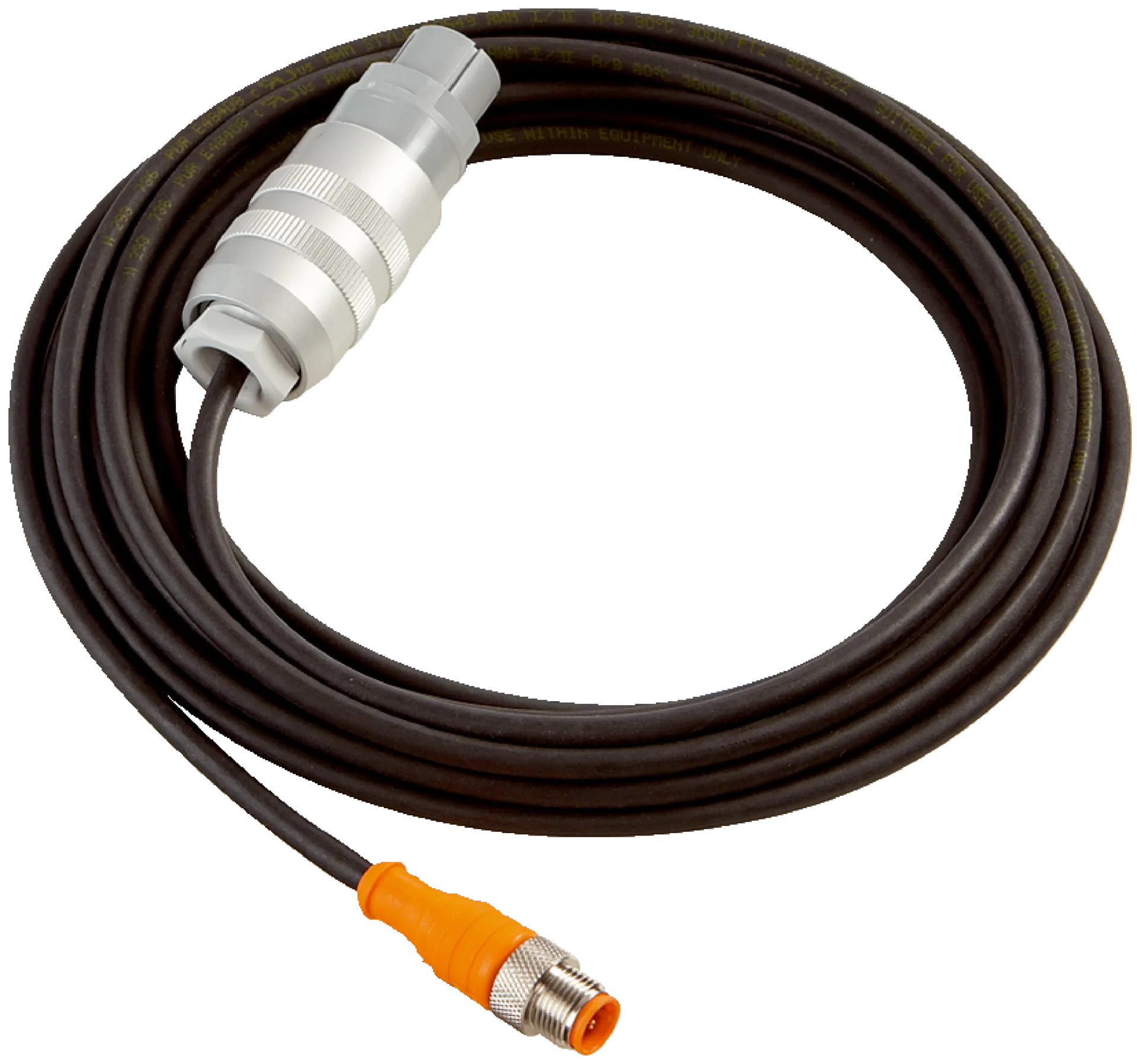

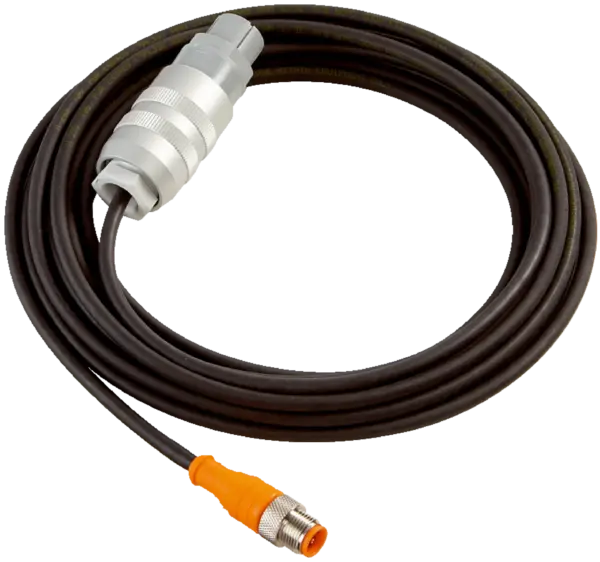

Sick DSL-6182G02M034KM1
Connectors and cables | Other connectors and cables | DSL-6182G02M034KM1 | Connection type head A: Female connector, M26, 12-pin, straight | Connection type head B: Male connector, M12, 5-pin, straigh…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Connectors and cables | Other connectors and cables | DSL-6182G02M034KM1 | Connection type head A: Female connector, M26, 12-pin, straight | Connection type head B: Male connector, M12, 5-pin, straight | Cable: 2 m, 5-wire, PUR | Description: Drag chain use, unshielded
Specification
Technical specifications
| Connection type head A | Female connector, M26, 12-pin, straight |
|---|---|
| Connection type head B | Male connector, M12, 5-pin, straight |
| Connector material | Female connector: PBT, male connector: TPU |
| Tightening torque | 0.6Â Nm |
| Cable | 2Â m, 5-wire, PUR |
| Jacket material | PUR |
| Jacket color | Black |
| Cable diameter | 4.8Â mm |
| Conductor cross section | 0.34 mm² |
| Shielding | Unshielded |
| Flexible use | > 10Â x cable diameter |
| Stationary position | > 5Â x cable diameter |
| Bending cycles | ≤ 10,000,000 |
| Rated impulse voltage | 1.5Â kV |
| Traversing speed | Max. 3 m/s |
| Travelling distance | 10Â m |
| Acceleration | ≤ 10 m/s² |
| Special feature | Drag chain use |
| Enclosure rating | IP65 / IP66K / IP67 |
| Flexible use | –25 °C ... +80 °C |
| Stationary position | –40 °C ... +80 °C |
| Head | –25 °C ... –85 °C |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| China RoHS | ✔ |
Classifications
| ECLASS 5.0 | 19030312 |
|---|---|
| ECLASS 5.1.4 | 19030312 |
| ECLASS 6.0 | 27060304 |
| ECLASS 6.2 | 27060304 |
| ECLASS 7.0 | 27060304 |
| ECLASS 8.0 | 27060304 |
| ECLASS 8.1 | 27060304 |
| ECLASS 9.0 | 27060304 |
| ECLASS 10.0 | 27060304 |
| ECLASS 11.0 | 27060304 |
| ECLASS 12.0 | 27060304 |
| ETIM 5.0 | EC000830 |
| ETIM 6.0 | EC000830 |
| ETIM 7.0 | EC003249 |
| ETIM 8.0 | EC003249 |
| UNSPSC 16.0901 | 26121604 |
