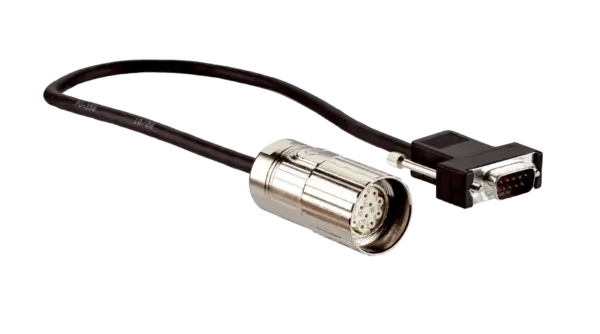

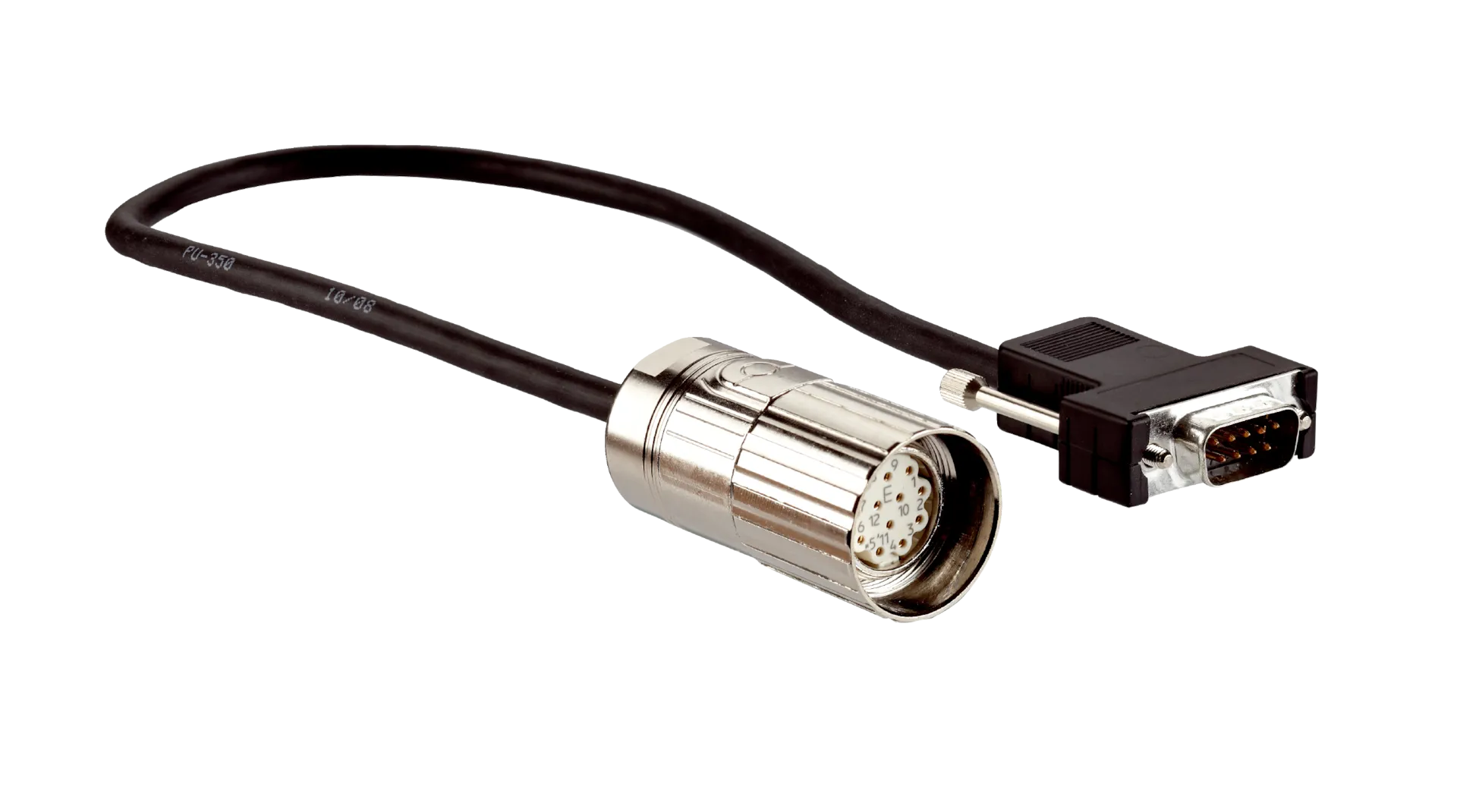

Sick DSL-3D08-G0M5AC2
Connectors and cables | Other connectors and cables | DSL-3D08-G0M5AC2 | Connection type head A: Female connector, M23, 12-pin, straight | Connection type head B: Male connector, D-Sub, 9-pin, straigh…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Connectors and cables | Other connectors and cables | DSL-3D08-G0M5AC2 | Connection type head A: Female connector, M23, 12-pin, straight | Connection type head B: Male connector, D-Sub, 9-pin, straight | Signal type: SSI | Cable: 0.5 m, 8-wire, PUR, halogen-free | Description: SSI, shielded | Note: Suitable for use with SSI interfaces, not suitable for use with SSI + Incremental interface or SSI + Sin/Cos., programming adapter cable for programming tool PGT-10-Pro and PGT-08-S
Specification
Technical specifications
| Connection type head A | Female connector, M23, 12-pin, straight |
|---|---|
| Connection type head B | Male connector, D-Sub, 9-pin, straight |
| Cable | 0.5Â m, 8-wire, PUR, halogen-free |
| Jacket material | PUR, halogen-free |
| Conductor cross section | 4 x 2 x 0.15 mm² |
| Shielding | Shielded |
| Signal type | SSI |
| Note | Suitable for use with SSI interfaces, not suitable for use with SSI + Incremental interface or SSI + Sin/Cos.Programming adapter cable for programming tool PGT-10-Pro and PGT-08-S |
| Stationary position | –55 °C ... +125 °C |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| China RoHS | ✔ |
Classifications
| ECLASS 5.0 | 19030312 |
|---|---|
| ECLASS 5.1.4 | 19030312 |
| ECLASS 6.0 | 27060304 |
| ECLASS 6.2 | 27060304 |
| ECLASS 7.0 | 27060304 |
| ECLASS 8.0 | 27060304 |
| ECLASS 8.1 | 27060304 |
| ECLASS 9.0 | 27060304 |
| ECLASS 10.0 | 27060304 |
| ECLASS 11.0 | 27060304 |
| ECLASS 12.0 | 27060304 |
| ETIM 5.0 | EC000830 |
| ETIM 6.0 | EC000830 |
| ETIM 7.0 | EC003249 |
| ETIM 8.0 | EC003249 |
| UNSPSC 16.0901 | 26121604 |
