Sick DSL-1204-G0M5C
Connectors and cables | Sensor-actuator cables | DSL-1204-G0M5C | Connection type head A: Female connector, M12, 4-pin, straight, T-coded | Connection type head B: Male connector, M12, 4-pin, straight…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

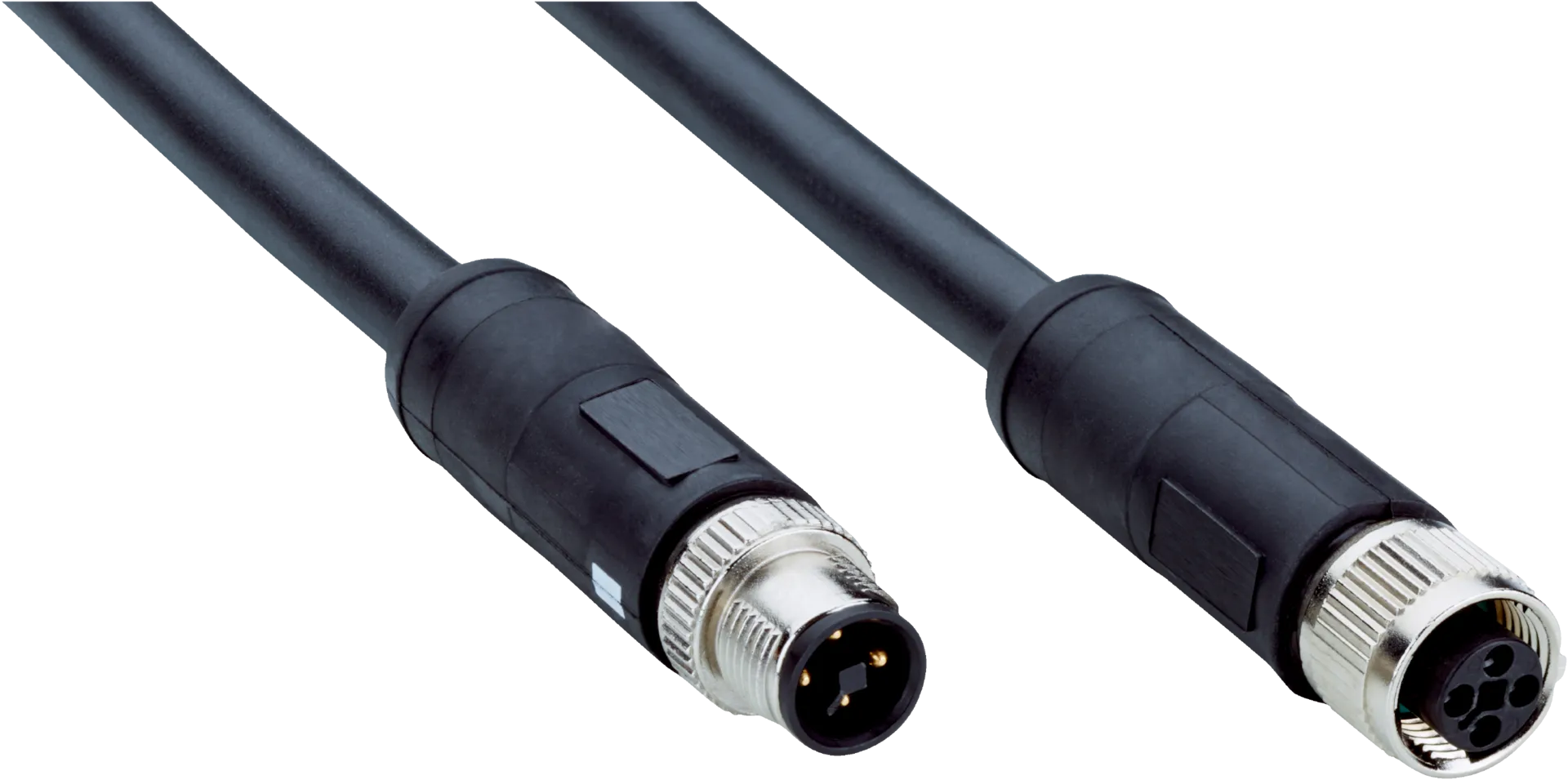

Connectors and cables | Sensor-actuator cables | DSL-1204-G0M5C | Connection type head A: Female connector, M12, 4-pin, straight, T-coded | Connection type head B: Male connector, M12, 4-pin, straight, T-coded | Signal type: Sensor/actuator cable | Cable: 0.5 m, 4-wire, PUR | Description: Sensor/actuator cable, unshielded
Specification
Technical specifications
| Connection type head A | Female connector, M12, 4-pin, straight, T-coded |
|---|---|
| Connection type head B | Male connector, M12, 4-pin, straight, T-coded |
| Locking plug connector | Quick screw connection |
| Cable | 0.5Â m, 4-wire, PUR |
| Jacket material | PUR |
| Jacket color | Black |
| Shielding | Unshielded |
| Current loading | 12Â A |
| Signal type | Sensor/actuator cable |
| Stationary position | –40 °C ... +85 °C |
Classifications
| ECLASS 5.0 | 19030312 |
|---|---|
| ECLASS 5.1.4 | 19030312 |
| ECLASS 6.0 | 27060304 |
| ECLASS 6.2 | 27060304 |
| ECLASS 7.0 | 27060304 |
| ECLASS 8.0 | 27060304 |
| ECLASS 8.1 | 27060304 |
| ECLASS 9.0 | 27060304 |
| ECLASS 10.0 | 27060304 |
| ECLASS 11.0 | 27060304 |
| ECLASS 12.0 | 27060304 |
| ETIM 5.0 | EC000830 |
| ETIM 6.0 | EC000830 |
| ETIM 7.0 | EC003249 |
| ETIM 8.0 | EC003249 |
| UNSPSC 16.0901 | 26121604 |
