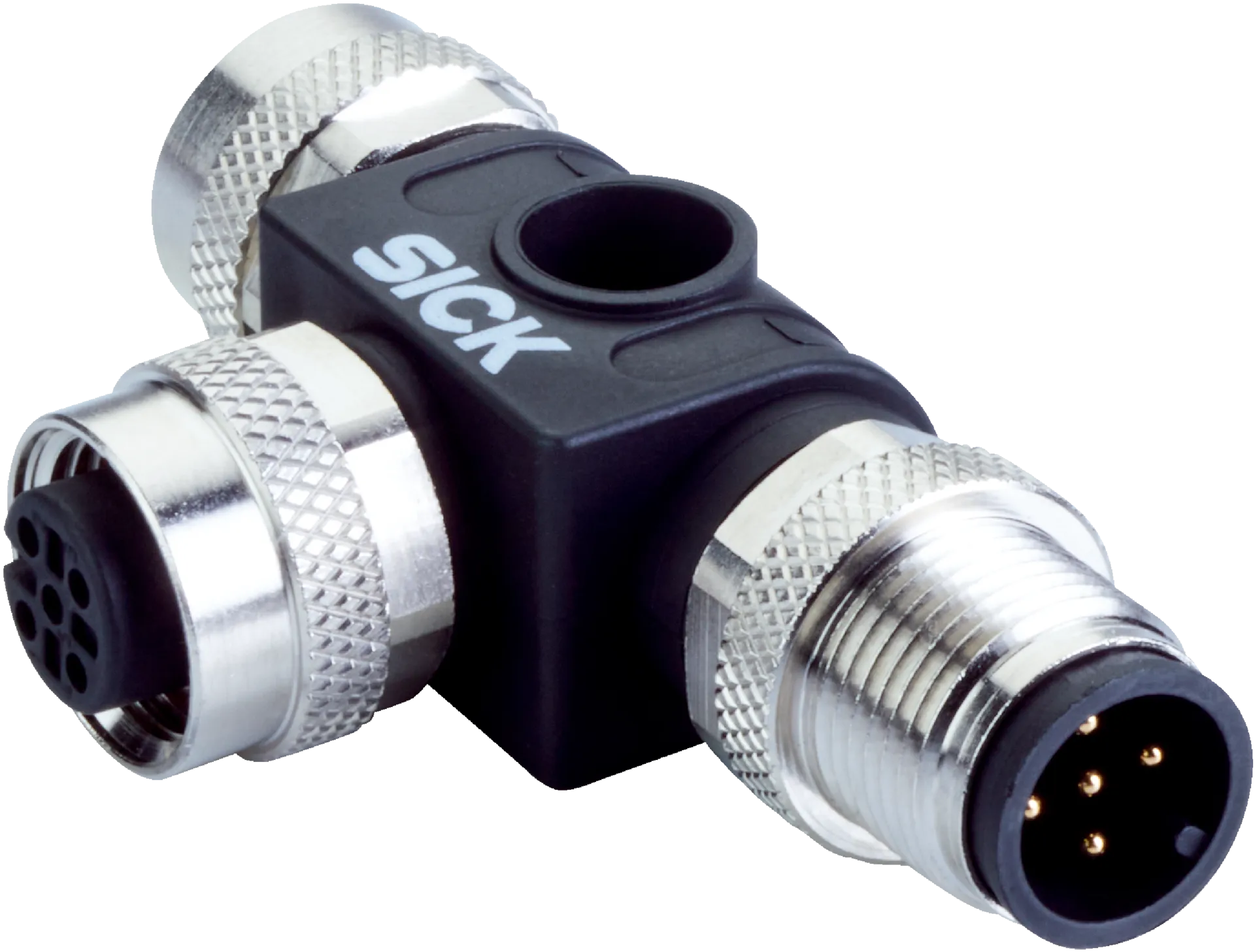

Sick DSC-1205T000025KM0
Connectors and cables | Y- and T-splitters | DSC-1205T000025KM0 | Connection type head A: Female connector, M12, 5-pin, A-coded | Connection type head B: Female connector, M12, 5-pin, A-coded | Connec…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Connectors and cables | Y- and T-splitters | DSC-1205T000025KM0 | Connection type head A: Female connector, M12, 5-pin, A-coded | Connection type head B: Female connector, M12, 5-pin, A-coded | Connection type head C: Male connector, M12, 5-pin, A-coded | Description: Unshielded
Specification
Technical specifications
| Connection type head A | Female connector, M12, 5-pin, A-coded |
|---|---|
| Connection type head B | Female connector, M12, 5-pin, A-coded |
| Connection type head C | Male connector, M12, 5-pin, A-coded |
| Housing material | TPU |
| Housing color | Black |
| Locking nut material | Zinc die-cast, nickel-plated |
| Shielding | Unshielded |
| Current loading | ≤ 4 A |
| Operating temperature | –30 °C ... +90 °C |
| Enclosure rating | IP67Â 1) |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
Classifications
| ECLASS 5.0 | 27279201 |
|---|---|
| ECLASS 5.1.4 | 27279201 |
| ECLASS 6.0 | 27279201 |
| ECLASS 6.2 | 27279201 |
| ECLASS 7.0 | 27279201 |
| ECLASS 8.0 | 27279201 |
| ECLASS 8.1 | 27279201 |
| ECLASS 9.0 | 27440108 |
| ECLASS 10.0 | 27440108 |
| ECLASS 11.0 | 27440108 |
| ECLASS 12.0 | 27440108 |
| ETIM 5.0 | EC002585 |
| ETIM 6.0 | EC002585 |
| ETIM 7.0 | EC002585 |
| ETIM 8.0 | EC002585 |
| UNSPSC 16.0901 | 31163032 |
