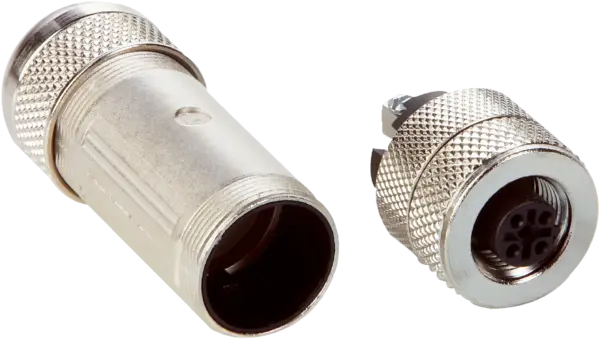

Sick DOS-1205-GQ
Connectors and cables | Field-wireable connectors | DOS-1205-GQ | Connection type head A: Female connector, M12, 5-pin, straight, B-coded | Signal type: PROFIBUS DP | Description: PROFIBUS DP, shielde…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Connectors and cables | Field-wireable connectors | DOS-1205-GQ | Connection type head A: Female connector, M12, 5-pin, straight, B-coded | Signal type: PROFIBUS DP | Description: PROFIBUS DP, shielded | Connection systems: Screw-type terminals | Permitted cross-section: ≤ 0.75 mm²
Specification
Technical specifications
| Connection type head A | Female connector, M12, 5-pin, straight, B-coded |
|---|---|
| Connection type | Screw-type terminals |
| Connector material | CuZn |
| Connector color | Silver |
| Locking nut material | CuZn, nickel-plated brass |
| Tightening torque | 0.5Â Nm |
| Conductor cross section | 0.14 mm² |
| Shielding | Shielded |
| Permitted cross-section | ≤ 0.75 mm² |
| Current loading | ≤ 4 A |
| Signal type | PROFIBUS DP |
| Enclosure rating | IP67 |
| Head | –25 °C ... +90 °C |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| China RoHS | ✔ |
Classifications
| ECLASS 5.0 | 27279290 |
|---|---|
| ECLASS 5.1.4 | 27279290 |
| ECLASS 6.0 | 27279221 |
| ECLASS 6.2 | 27279221 |
| ECLASS 7.0 | 27440104 |
| ECLASS 8.0 | 27440104 |
| ECLASS 8.1 | 27440104 |
| ECLASS 9.0 | 27440102 |
| ECLASS 10.0 | 27440102 |
| ECLASS 11.0 | 27440102 |
| ECLASS 12.0 | 27440116 |
| ETIM 5.0 | EC002635 |
| ETIM 6.0 | EC002635 |
| ETIM 7.0 | EC002635 |
| ETIM 8.0 | EC002635 |
| UNSPSC 16.0901 | 39121421 |
