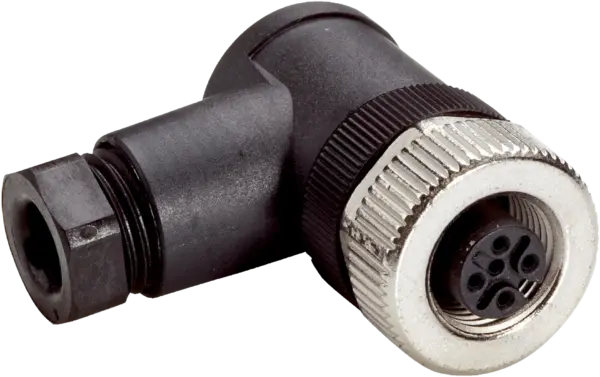

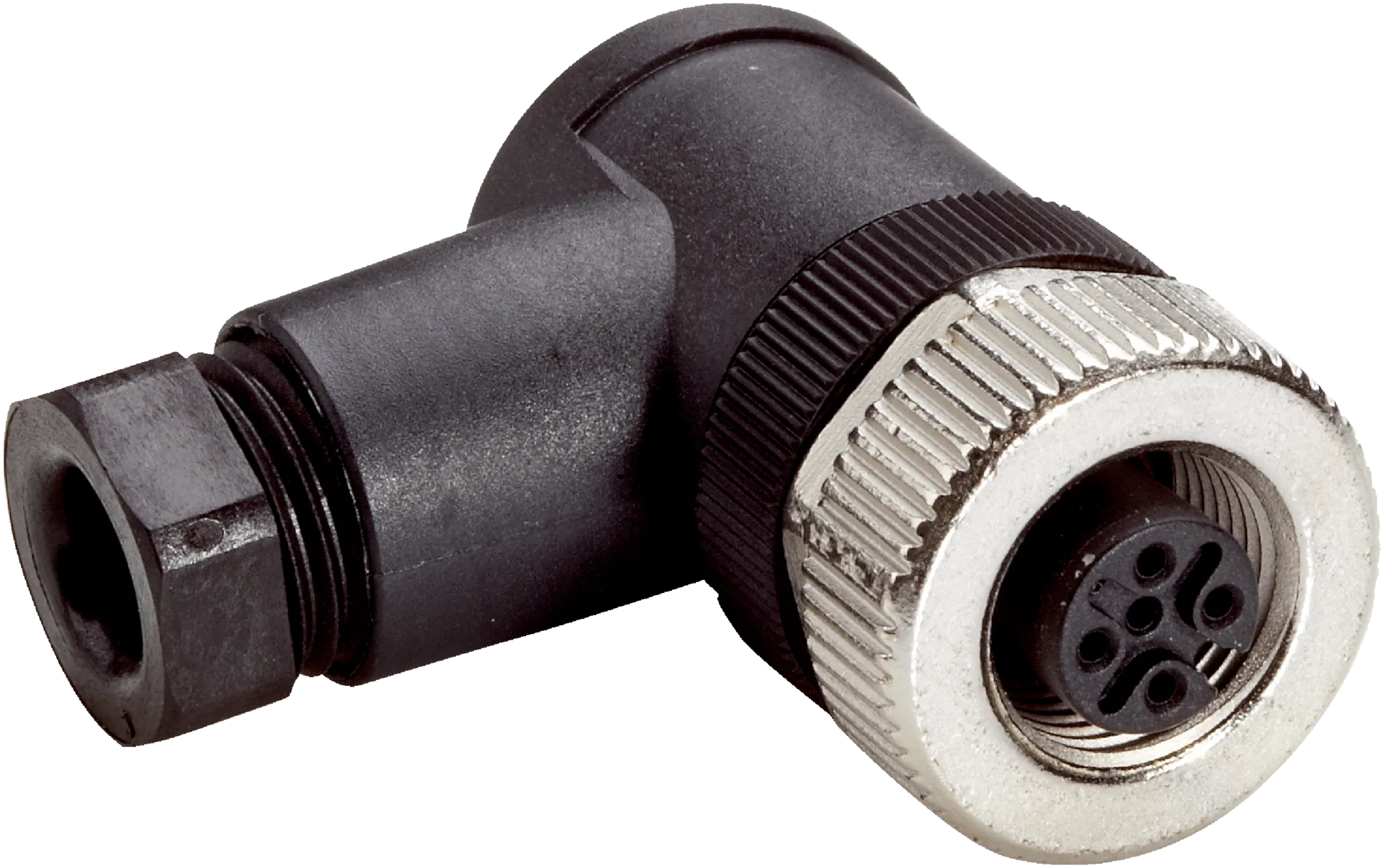

Sick DOS-1204-W
Connectors and cables | Field-wireable connectors | DOS-1204-W | Connection type head A: Female connector, M12, 4-pin, angled, A-coded | Description: Unshielded | Connection systems: Screw-type termin…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Connectors and cables | Field-wireable connectors | DOS-1204-W | Connection type head A: Female connector, M12, 4-pin, angled, A-coded | Description: Unshielded | Connection systems: Screw-type terminals | Permitted cross-section: ≤ 0.75 mm²
Specification
Technical specifications
| Connection type head A | Female connector, M12, 4-pin, angled, A-coded |
|---|---|
| Connection type | Screw-type terminals |
| Connector material | PBT |
| Connector color | Black |
| Locking nut material | CuZn |
| Tightening torque | 0.6Â Nm |
| Shielding | Unshielded |
| Permitted cross-section | ⤠0.75 mm² |
| Current loading | 4Â A |
| Authorizations | UL |
| UL File No. | E335179 |
| Enclosure rating | IP67 |
| Head | â40 °C ... +85 °C |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
Classifications
| ECLASS 5.0 | 27279290 |
|---|---|
| ECLASS 5.1.4 | 27279290 |
| ECLASS 6.0 | 27279221 |
| ECLASS 6.2 | 27279221 |
| ECLASS 7.0 | 27440104 |
| ECLASS 8.0 | 27440104 |
| ECLASS 8.1 | 27440104 |
| ECLASS 9.0 | 27440102 |
| ECLASS 10.0 | 27440102 |
| ECLASS 11.0 | 27440102 |
| ECLASS 12.0 | 27440116 |
| ETIM 5.0 | EC002635 |
| ETIM 6.0 | EC002635 |
| ETIM 7.0 | EC002635 |
| ETIM 8.0 | EC002635 |
| UNSPSC 16.0901 | 39121421 |
