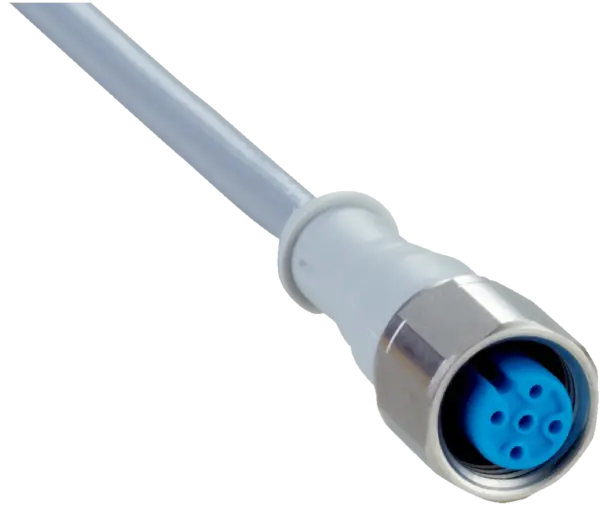

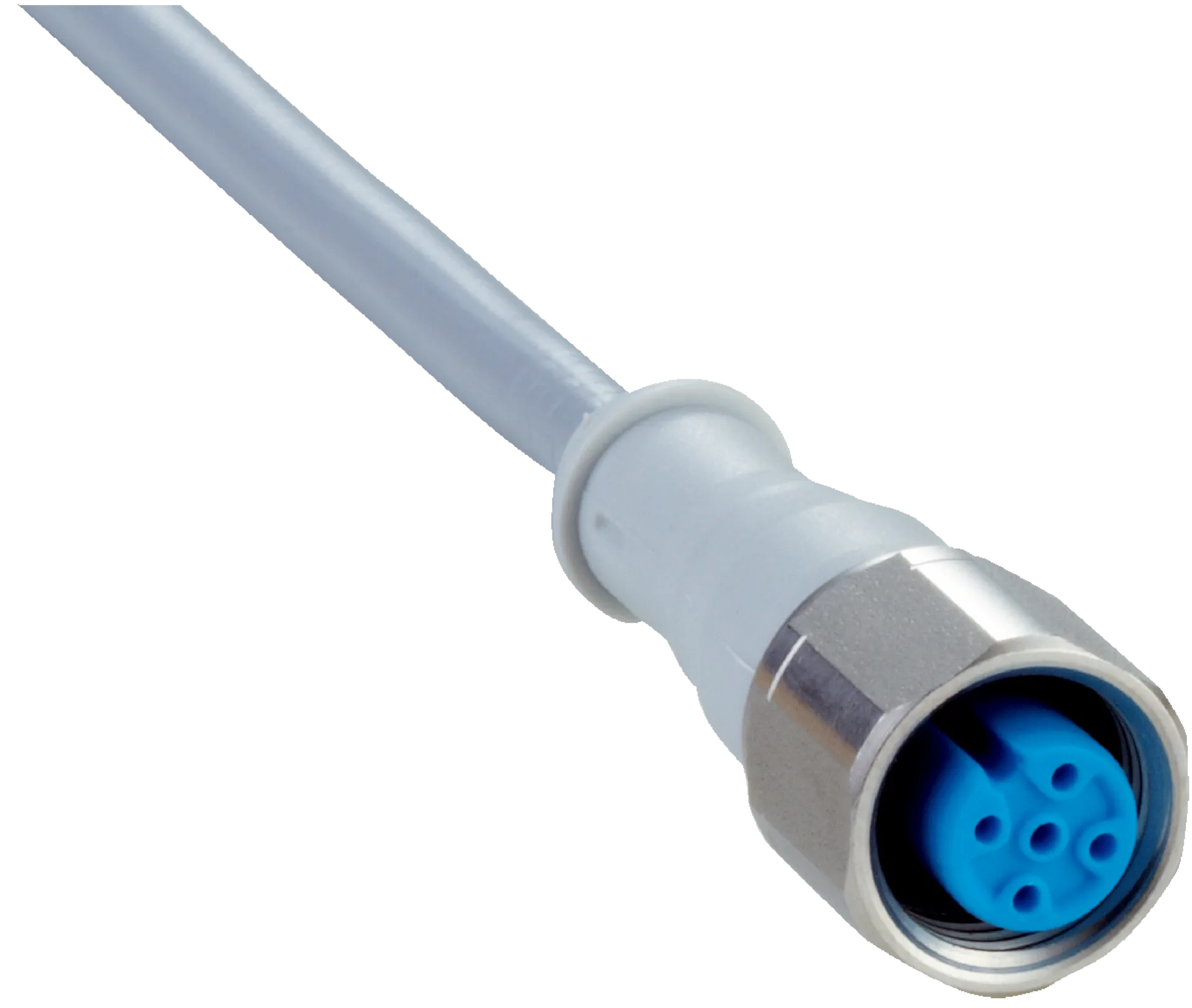

Sick DOL-1204-G05MNI
Connectors and cables | Sensor-actuator cables | DOL-1204-G05MNI | Connection type head A: Female connector, M12, 4-pin, straight | Connection type head B: Flying leads | Signal type: Sensor/actuator…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Connectors and cables | Sensor-actuator cables | DOL-1204-G05MNI | Connection type head A: Female connector, M12, 4-pin, straight | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 5 m, 4-wire, PVC | Description: Sensor/actuator cable, unshielded | Connection systems: Flying leads | Note: This product is generally resistant to chemical cleaning agents (see ECOLAB). Please do not use cleaning agents of any other Kind., Not resistant against lactic acid & hydrogen peroxide (H2O2) | Application: Hygienic and washdown zones
Specification
Technical specifications
| Connection type head A | Female connector, M12, 4-pin, straight |
|---|---|
| Connection type head B | Flying leads |
| Connection type | Flying leads |
| Connector material | PUR |
| Connector color | Gray |
| Locking nut material | Stainless steel (V4A/1.4404) |
| Tightening torque | 0.6Â Nm |
| Width across flats | 14 |
| Cable | 5Â m, 4-wire, PVC |
| Jacket material | PVC |
| Jacket color | Gray |
| Cable diameter | 5Â mm |
| Conductor cross section | 0.34 mm² |
| Shielding | Unshielded |
| Flexible use | > 10Â x cable diameter |
| Stationary position | > 5Â x cable diameter |
| Rated impulse voltage | 2.5Â kV |
| Current loading | 4Â A |
| Signal type | Sensor/actuator cable |
| Application | Hygienic and washdown zones |
| Note | This product is generally resistant to chemical cleaning agents (see ECOLAB). Please do not use cleaning agents of any other Kind. 1)Not resistant against lactic acid & hydrogen peroxide (H2O2) 2) |
| UL File No. | CYJV.E335179 |
| Enclosure rating | IP65/ IP67/ IP69K |
| Flexible use | –5 °C ... +80 °C |
| Stationary position | –30 °C ... +80 °C |
| Head | –25 °C ... +85 °C |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| China RoHS | ✔ |
| ECOLAB certificate | ✔ |
| cULus certificate | ✔ |
Classifications
| ECLASS 5.0 | 19030312 |
|---|---|
| ECLASS 5.1.4 | 19030312 |
| ECLASS 6.0 | 27060304 |
| ECLASS 6.2 | 27060304 |
| ECLASS 7.0 | 27060304 |
| ECLASS 8.0 | 27060304 |
| ECLASS 8.1 | 27060304 |
| ECLASS 9.0 | 27060304 |
| ECLASS 10.0 | 27060304 |
| ECLASS 11.0 | 27060304 |
| ECLASS 12.0 | 27060304 |
| ETIM 5.0 | EC000830 |
| ETIM 6.0 | EC000830 |
| ETIM 7.0 | EC003249 |
| ETIM 8.0 | EC003249 |
| UNSPSC 16.0901 | 26121604 |
