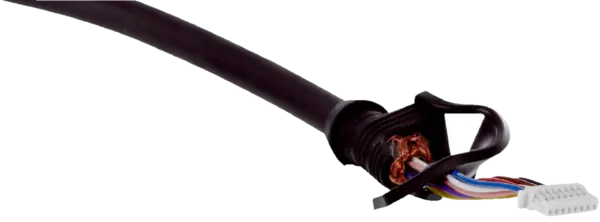

Sick DOL-0J08-G1M5AA6
Connectors and cables | Other connectors and cables | DOL-0J08-G1M5AA6 | Connection type head A: Female connector, JST, 8-pin, straight | Connection type head B: Flying leads | Signal type: SSI, Incre…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Connectors and cables | Other connectors and cables | DOL-0J08-G1M5AA6 | Connection type head A: Female connector, JST, 8-pin, straight | Connection type head B: Flying leads | Signal type: SSI, Incremental | Items supplied: JST including sealing | Cable: 1.5 m, 8-wire, PUR, halogen-free | Description: SSI, shielded, Incremental
Specification
Technical specifications
| Connection type head A | Female connector, JST, 8-pin, straight |
|---|---|
| Connection type head B | Flying leads |
| Cable | 1.5Â m, 8-wire, PUR, halogen-free |
| Jacket material | PUR, halogen-free |
| Jacket color | Black |
| Cable diameter | 5.6Â mm |
| Conductor cross section | 4 x 2 x 0.15 mm² |
| Shielding | Shielded |
| Stationary position | > 5Â x cable diameter |
| Drag chain operation | > 7.5Â x cable diameter |
| Signal type | SSI, Incremental |
| Items supplied | JST including sealing |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| China RoHS | ✔ |
Classifications
| ECLASS 5.0 | 19030312 |
|---|---|
| ECLASS 5.1.4 | 19030312 |
| ECLASS 6.0 | 27060304 |
| ECLASS 6.2 | 27060304 |
| ECLASS 7.0 | 27060304 |
| ECLASS 8.0 | 27060304 |
| ECLASS 8.1 | 27060304 |
| ECLASS 9.0 | 27060304 |
| ECLASS 10.0 | 27060304 |
| ECLASS 11.0 | 27060304 |
| ECLASS 12.0 | 27060304 |
| ETIM 5.0 | EC000830 |
| ETIM 6.0 | EC000830 |
| ETIM 7.0 | EC003249 |
| ETIM 8.0 | EC003249 |
| UNSPSC 16.0901 | 26121604 |
