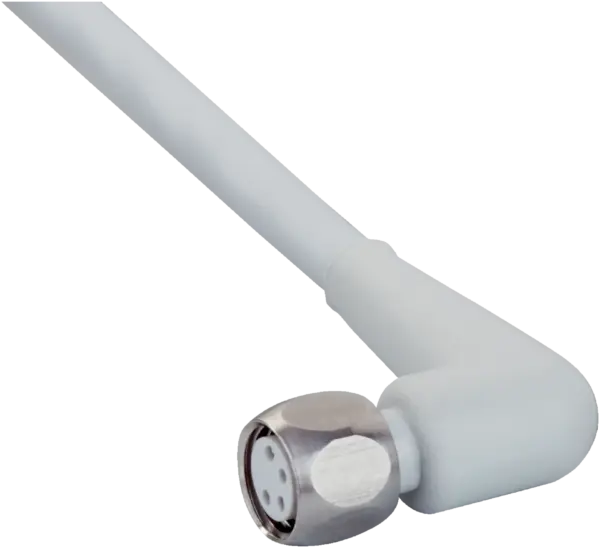

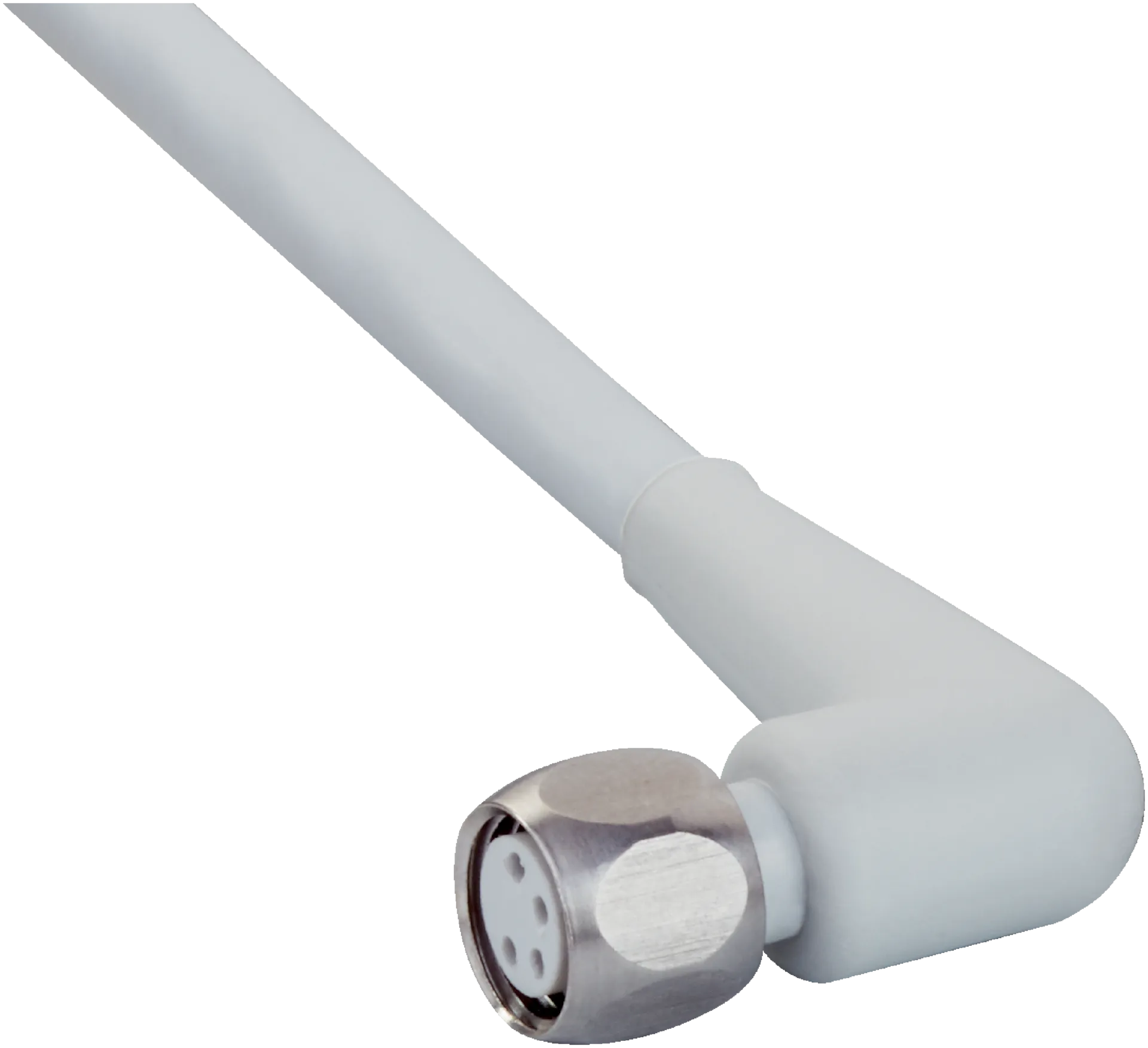

Sick DOL-0804-W10MRN
Connectors and cables | Sensor-actuator cables | DOL-0804-W10MRN | Connection type head A: Female connector, M8, 4-pin, angled | Connection type head B: Flying leads | Signal type: Sensor/actuator cab…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Connectors and cables | Sensor-actuator cables | DOL-0804-W10MRN | Connection type head A: Female connector, M8, 4-pin, angled | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 10 m, 4-wire, PP | Description: Sensor/actuator cable, unshielded | Connection systems: Flying leads | Note: This product is generally resistant to chemical cleaning agents (see ECOLAB) and other chemical compounds such as H2O2 and CH2O2. Before permanent installation is carried out, the material’s resistance to the cleaning agent being used must be checked., Resistant against lactic acid & hydrogen peroxide (H2O2) | Application: Hygienic and washdown zones, Drag chain operation
Specification
Technical specifications
| Connection type head A | Female connector, M8, 4-pin, angled |
|---|---|
| Connection type head B | Flying leads |
| Connection type | Flying leads |
| Connector material | PP |
| Connector color | Gray |
| Locking nut material | Stainless steel (V4A/1.4404/316L) |
| Tightening torque | 0.6Â Nm |
| Width across flats | 9 |
| Cable | 10Â m, 4-wire, PP |
| Jacket material | PPÂ 1) |
| Jacket color | Gray |
| Cable diameter | 4.6Â mm |
| Conductor cross section | 0.34 mm² |
| Shielding | Unshielded |
| Flexible use | > 10Â x cable diameter |
| Stationary position | > 5Â x cable diameter |
| Bending cycles | ≥ 4,000,000 |
| Rated impulse voltage | 0.8Â kV |
| Current loading | 4Â A |
| Signal type | Sensor/actuator cable |
| Torsion force | 180° / 1 m |
| Application | Hygienic and washdown zonesDrag chain operation |
| Note | This product is generally resistant to chemical cleaning agents (see ECOLAB) and other chemical compounds such as H2O2 and CH2O2. Before permanent installation is carried out, the material's resistance to the cleaning agent being used must be checked. 2)Resistant against lactic acid & hydrogen peroxide (H2O2) |
| Enclosure rating | IP67/ IP69K |
| Flexible use | –25 °C ... +105 °C |
| Stationary position | –40 °C ... +105 °C |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| China RoHS | ✔ |
| ECOLAB certificate | ✔ |
Classifications
| ECLASS 5.0 | 19030312 |
|---|---|
| ECLASS 5.1.4 | 19030312 |
| ECLASS 6.0 | 27060304 |
| ECLASS 6.2 | 27060304 |
| ECLASS 7.0 | 27060304 |
| ECLASS 8.0 | 27060304 |
| ECLASS 8.1 | 27060304 |
| ECLASS 9.0 | 27060304 |
| ECLASS 10.0 | 27060304 |
| ECLASS 11.0 | 27060304 |
| ECLASS 12.0 | 27060304 |
| ETIM 5.0 | EC000830 |
| ETIM 6.0 | EC000830 |
| ETIM 7.0 | EC003249 |
| ETIM 8.0 | EC003249 |
| UNSPSC 16.0901 | 26121604 |
