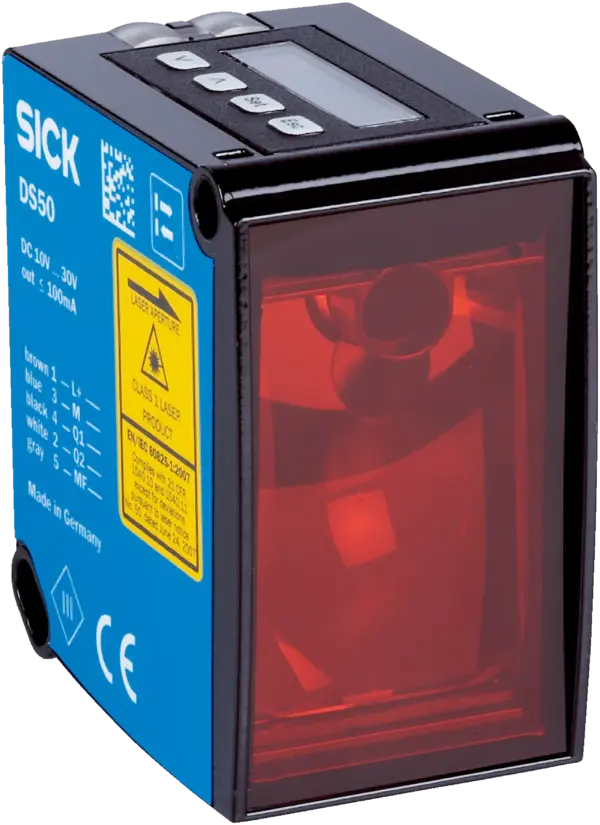

Laser distance sensors | Dx50 | DL50-P2228 | Communication interface: SSI | Measuring range: 200 mm … 50,000 mm, on “diamond grade” reflective tape | Laser class: 1 | Light source: Laser, red | Mini…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Laser distance sensors | Dx50 | DL50-P2228 | Communication interface: SSI | Measuring range: 200 mm … 50,000 mm, on “diamond grade” reflective tape | Laser class: 1 | Light source: Laser, red | Minimum response time: 10 ms | Digital output: 1 … 2 x PNP | Multifunctional input (MF): − / 1 x
Specification
Features
| Measuring range | 200 mm ... 50,000 mm, on âdiamond gradeâ reflective tape 1) |
|---|---|
| Target | Reflector |
| Resolution | 100 µm |
| Repeatability | â¥Â 0.25 mm 2) 3) 4) |
| Measurement accuracy | ± 3 mm 5) |
| Response time | 10 ms ... 160 ms, 10 ms / 40 ms / 160 ms 3) 6) |
| Output time | 2.5 ms 7) |
| Light source | Laser, red |
| Type of light | Visible red light |
| Typ. light spot size (distance) | 15 mm x 15 mm (10 m) |
| Normative reference | IECÂ 60825-1:2014, ENÂ 60825-1:2014 |
| Laser class | 1Â 8) |
| Average laser service life (at 25 °C) | 100,000 h |
| Additional function | Set moving average fast/medium/slowSwitching mode: distance to object (DtO)Teach-in, scaling and inversion of digital outputSet hysteresisMultifunctional input and output: Laser off, external teach, digital output 2, deactivatedAdjustable resolution of the SSI distance output: 0.0625Â mm / 0.1Â mm / 0.125Â mm / 1Â mmUnique measurement valueCrosstalk safetySwitch-off displayReset to factory defaultLock user interface |
| MTTFD | 101Â years |
| DCavg | 0% |
Interfaces
| SSI | â |
|---|---|
| Number | 1Â ... 2Â 1)Â 2) |
| Type | PNP |
| Function | Dependent on the set function MF: digital output 2Â / laser off, external teach |
| Maximum output current IA | â¤Â 100 mA |
| Multifunctional input (MF) | â / 1 x 3) 4) 5) |
| Hysteresis | 1 mm ... 1,000 mm |
Electronics
| Supply voltage UB | DC 10Â VÂ ... 30Â VÂ 1) |
|---|---|
| Power consumption | â¤Â 2.1 W 2) |
| Ripple | â¤Â 5 Vpp 3) |
| Initialization time | â¤Â 250 ms |
| Warm-up time | â¤Â 15 min |
| Display | LC display, 2Â x LED |
| Enclosure rating | IP65 |
| Protection class | III |
Mechanics
| Dimensions (W x H x D) | 36.1 mm x 62.7 mm x 57.7 mm |
|---|---|
| Housing material | Metal (zinc diecast) |
| Window material | Plastic (PMMA) |
| Weight | 200Â g |
Ambient data
| Ambient temperature, operation | â30 °C ... +65 °Câ30 °C ... +80 °C, operation with 2 cooling platesâ30 °C ... +140 °C, operation with 2 cooling plates and protection filter |
|---|---|
| Ambient temperature, storage | â40 °C ... +75 °C |
| Max. rel. humidity (not condensing) | â¤Â 95 % |
| Typ. Ambient light immunity | 40,000Â lx |
| Vibration resistance | ENÂ 60068-2-6, ENÂ 60068-2-64 |
| Shock resistance | ENÂ 60068-2-27 |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27270801 |
|---|---|
| ECLASS 5.1.4 | 27270801 |
| ECLASS 6.0 | 27270801 |
| ECLASS 6.2 | 27270801 |
| ECLASS 7.0 | 27270801 |
| ECLASS 8.0 | 27270801 |
| ECLASS 8.1 | 27270801 |
| ECLASS 9.0 | 27270801 |
| ECLASS 10.0 | 27270801 |
| ECLASS 11.0 | 27270801 |
| ECLASS 12.0 | 27270916 |
| ETIM 5.0 | EC001825 |
| ETIM 6.0 | EC001825 |
| ETIM 7.0 | EC001825 |
| ETIM 8.0 | EC001825 |
| UNSPSC 16.0901 | 41111613 |
