Description

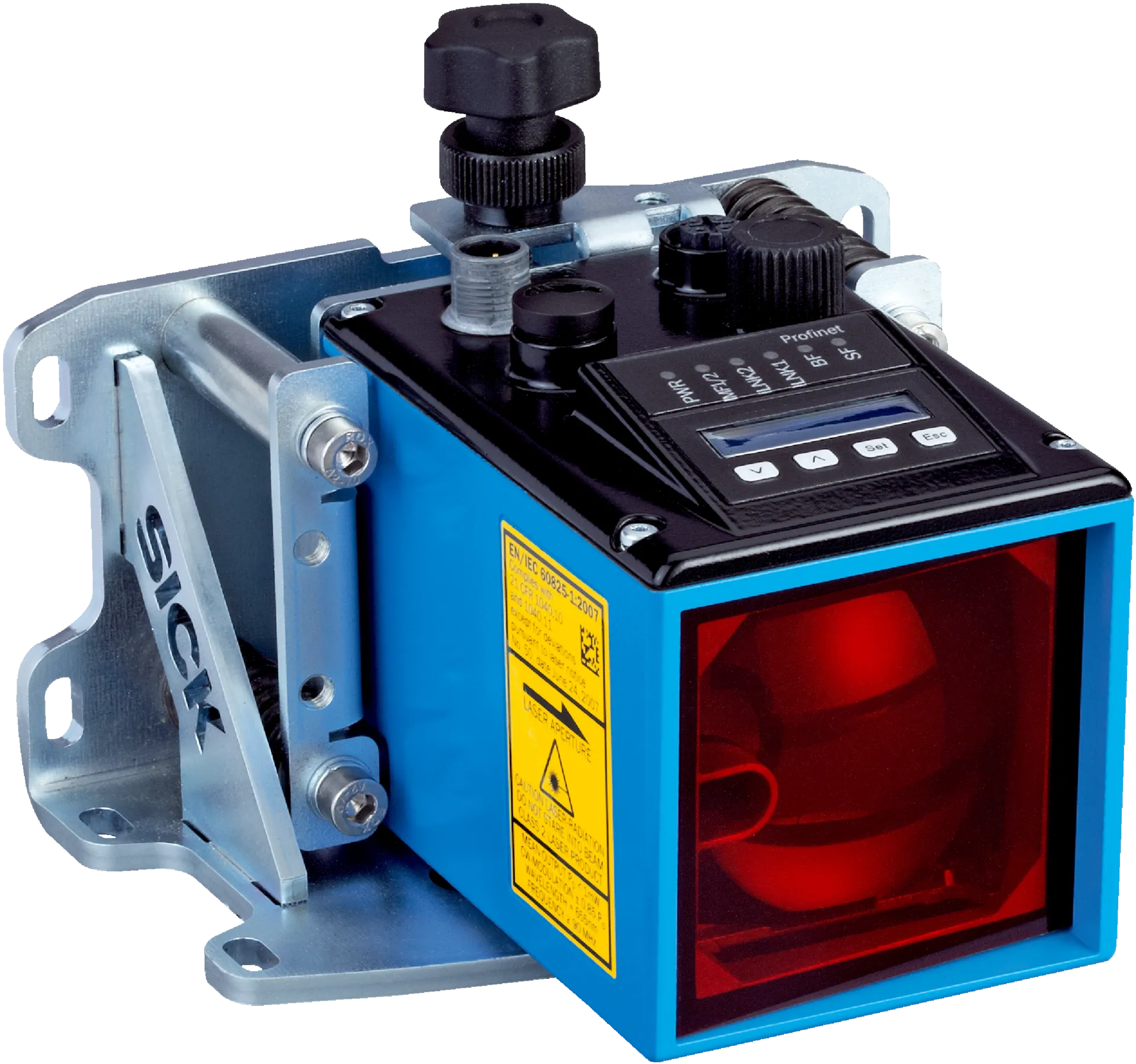

Laser distance sensors | Dx100 | DL100-22AA2211 | Communication interface: EtherCAT® | Measuring range: 0.15 m … 200 m, on “diamond grade” reflective tape | Laser class: 2 | Light source: Laser, red | Minimum response time: 2 ms | Digital output: 2 x push-pull: PNP/NPN | Multifunctional input (MF): 1 x MF1
Specification
Features
| Measuring range | 0.15 m ... 200 m, on âdiamond gradeâ reflective tape |
|---|---|
| Scope | Indoor |
| Target | Reflector |
| Resolution | 0.1Â mm, 0.125Â mm, 1Â mm, 10Â mm, 100Â mm, freely adjustable |
| Repeatability | 0.5 mm 1) |
| Measurement accuracy | ± 2.5 mm 2) |
| Response time | 2Â ms |
| Measurement cycle time | 1Â ms |
| Output time | 1Â ms |
| Light source | Laser, red 3) |
| Type of light | Visible red light |
| Typ. light spot size (distance) | 5 mm + (2 mm x distance in m) |
| Normative reference | IECÂ 60825-1:2014, ENÂ 60825-1:2014 |
| Laser class | 2 |
| Max. movement speed | 15Â m/s |
| Acceleration (max.) | â¤Â 15 m/s² |
| MTTFD | 101Â years |
| DCavg | 0% |
Interfaces
| EtherCAT® | â |
|---|---|
| Number | 2Â 1) |
| Type | Push-pull: PNP/NPN |
| Function | Distance: Distance switching output |
| Maximum output current IA | â¤Â 100 mA 2) |
| Multifunctional input (MF) | 1 x MF1 3) |
Electronics
| Supply voltage UB | DC 18Â VÂ ... 30Â V, limit values |
|---|---|
| Current consumption | At 24Â VÂ DC <Â 250Â mA |
| Ripple | 5 Vpp 1) |
| Modulation frequency | Fix |
| Initialization time | Typ. 1.5 s 2) |
| Display | 6Â digit 5Â x 7Â dot matrix display, LEDs |
| Enclosure rating | IP65 |
| Protection class | III |
Mechanics
| Dimensions (W x H x D) | 69.4 mm x 82.5 mm x 100.2 mm |
|---|---|
| Housing material | Metal (Aluminum die cast) |
| Window material | Plastic (PMMA) |
| Weight | Approx. 800 g (with mounting bracket: approx. 1,600 g) |
Ambient data
| Ambient temperature, operation | â20 °C ... +55 °C 1)â20 °C ... +75 °C, operation with cooling case 1) |
|---|---|
| Ambient temperature, storage | â40 °C ... +75 °C |
| Effect of air pressure | 0.3Â ppm/hPa |
| Effect of air temperature | 1Â ppm/K |
| Temperature drift | Typ. 0.1 mm/K |
| Typ. Ambient light immunity | â¤Â 100,000 lx |
| Mechanical load | Shock: (ENÂ 600 68-2-27)Sine: (ENÂ 600 68-2-6)Noise: (ENÂ 600 68-2-64) |
| Electromagnetic compatibility (EMC) | ENÂ 61000-6-2, ENÂ 61000-6-4Â 2) |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
| Ethercat certificate | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27270801 |
|---|---|
| ECLASS 5.1.4 | 27270801 |
| ECLASS 6.0 | 27270801 |
| ECLASS 6.2 | 27270801 |
| ECLASS 7.0 | 27270801 |
| ECLASS 8.0 | 27270801 |
| ECLASS 8.1 | 27270801 |
| ECLASS 9.0 | 27270801 |
| ECLASS 10.0 | 27270801 |
| ECLASS 11.0 | 27270801 |
| ECLASS 12.0 | 27270916 |
| ETIM 5.0 | EC001825 |
| ETIM 6.0 | EC001825 |
| ETIM 7.0 | EC001825 |
| ETIM 8.0 | EC001825 |
| UNSPSC 16.0901 | 41111613 |
