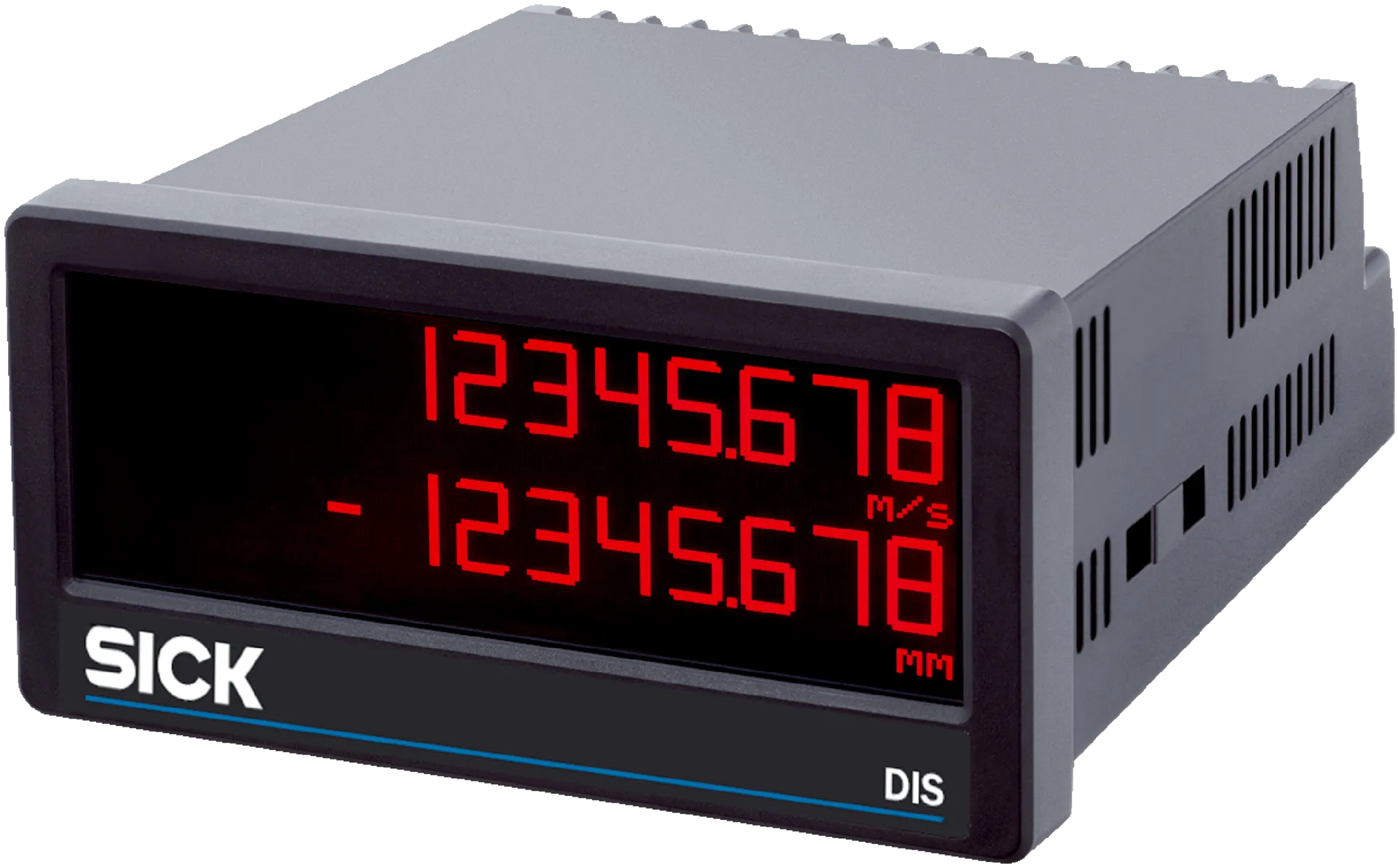

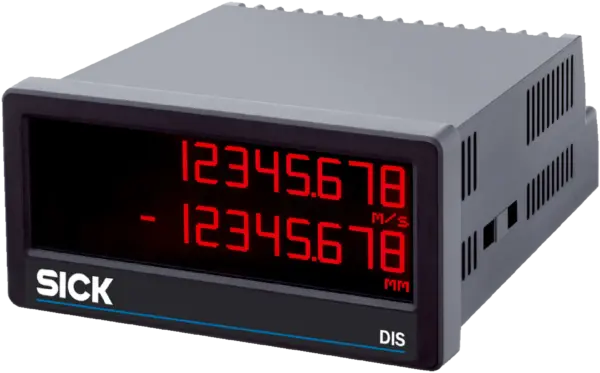

Sick DIS-IPDTACCR0000
Integration modules and adapters | Display modules | DIS-IPDTACCR0000 | Description: Digital display with resistive touch screen, for SPEETEC, incremental encoders and measuring wheel encoders. Multi-…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Integration modules and adapters | Display modules | DIS-IPDTACCR0000 | Description: Digital display with resistive touch screen, for SPEETEC, incremental encoders and measuring wheel encoders. Multi-function device for use as tachometer, speed measuring device, pulse counter, position display, piece counter and total counter␍Communication interface: incremental␍Communication interface detailed: RS-422, RS485
Specification
Features
| Accessory group | Display modules |
|---|---|
| Description | Digital display with resistive touch screen, for SPEETEC, incremental encoders and measuring wheel encoders. Multi-function device for use as tachometer, speed measuring device, pulse counter, position display, piece counter and total counterCommunication interface: incrementalCommunication interface detailed: RS-422, RS485 |
| Specialty | Double display for 2 measured values simultaneously. Pulse input in the format A, /A, B, /B, [HTL/RS422]. Input frequency up to 1 MHz.3 control inputs for HTL/PNP signals. 4 control outputs. RS485 interface |
| Material | ABS, UL 94Â V-0 |
| Electrical connection | Screw terminals, 1.5 mm² / AWG16; for pulse input, for control inputs, for control outputs, for RS485, for supply voltage and auxiliary voltage |
| Indication | Graphic LCD with backlighting; touch operation |
| Operating voltage | 18Â VÂ ... 30Â V, Auxiliary voltage for encoder 5/24Â VDCÂ 1) |
| Ambient operating temperature | â20 °C ... +60 °C |
| Enclosure rating mechanic | IP65 front side, IP20 rear side |
| Dimensions (W x H x L) | 96 mm x 48 mm x 116 mm |
