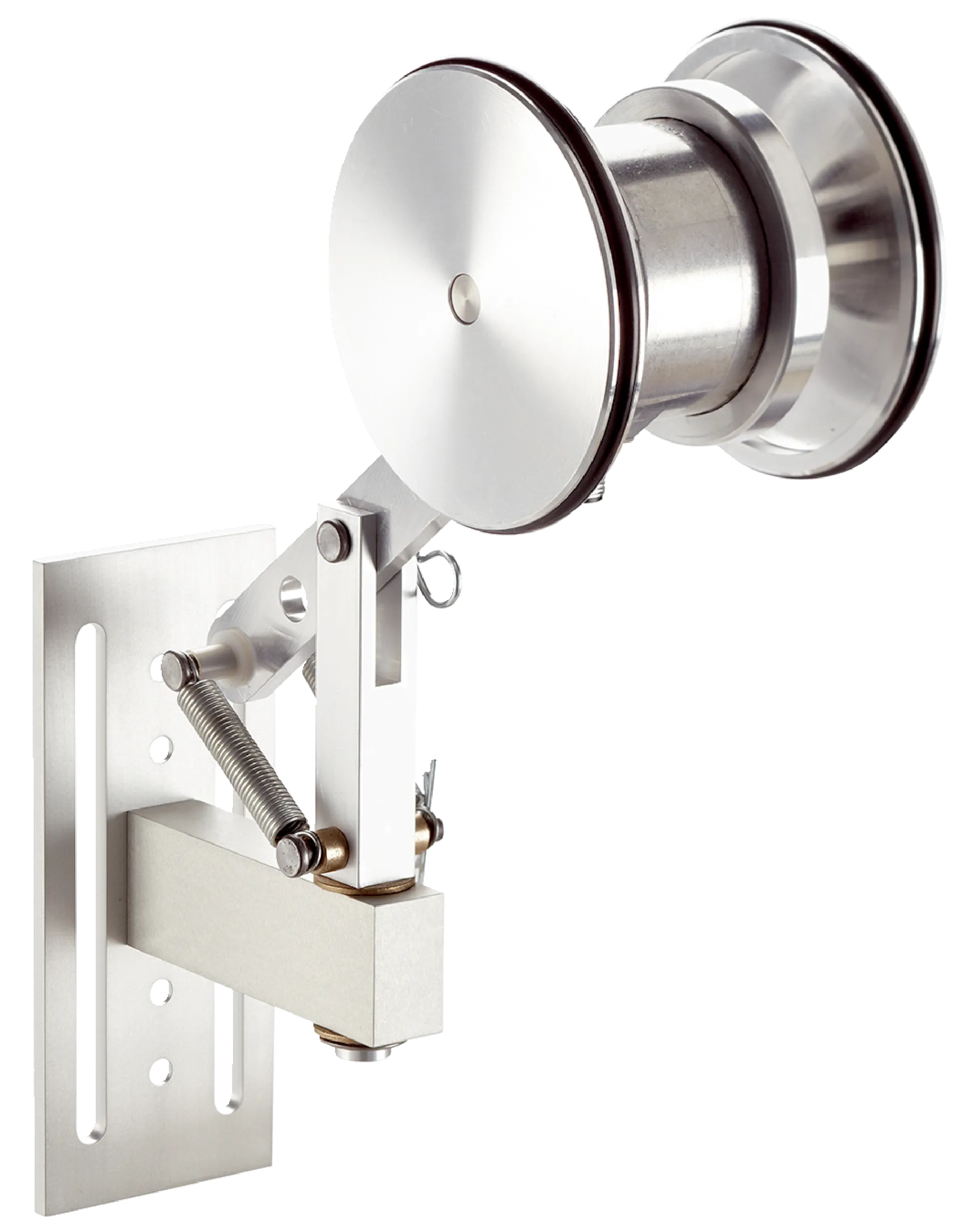

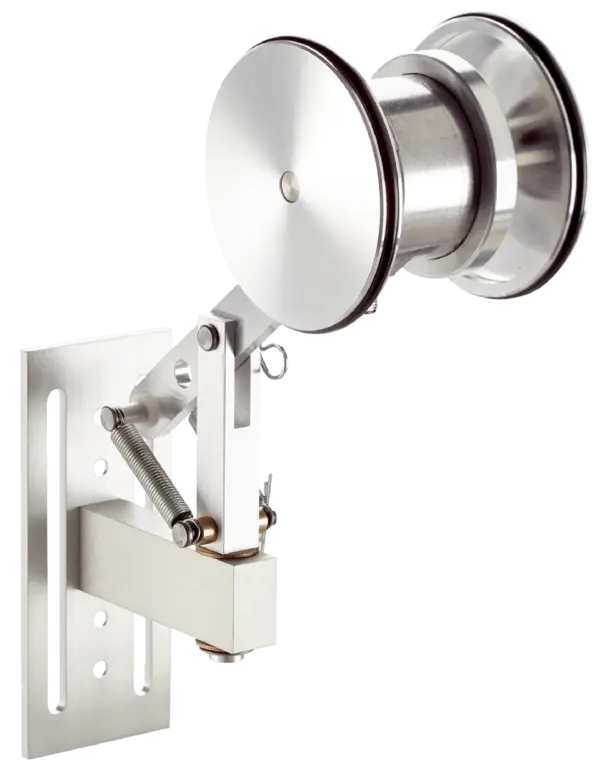

Sick DFV60A-22PM65536
Measuring wheel encoders | DFV60 | DFV60A-22PM65536 | Measuring wheel circumference: 300 mm | Measuring wheel surface: O-ring NBR70 | Communication interface: 4.5 V … 32 V, Incremental, TTL, HTL | S…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Measuring wheel encoders | DFV60 | DFV60A-22PM65536 | Measuring wheel circumference: 300 mm | Measuring wheel surface: O-ring NBR70 | Communication interface: 4.5 V … 32 V, Incremental, TTL, HTL | Supply voltage: 4.5 V … 32 V | Connection type: Cable, 8-wire, universal, 5 m | Resolution in pulses/mm: 218.45
Specification
Features
| Items supplied | DFV60 spring arm (part number: 2056155) not included with delivery |
|---|
Safety-related parameters
| MTTFD (mean time to dangerous failure) | 300Â years (ENÂ ISOÂ 13849-1)Â 1) |
|---|
Performance
| Pulses per revolution | 65,536 |
|---|---|
| Resolution in pulses/mm | 218.45 Pulses/mm 1) |
| Measuring increment (resolution in mm/pulse) | 0.005 mm/pulse 2) |
| Measuring step deviation | ± 0.002° 3) |
| Error limits | ± 4 mm/m, subject to measuring wheel (measuring wheel surface + measuring surface + ambient conditions) |
| Initialization time | 30Â ms |
Interfaces
| Communication interface | Incremental |
|---|---|
| Communication Interface detail | TTLÂ / HTL |
| Programmable/configurable | â |
Electronics
| Connection type | Cable, 8-wire, universal, 5Â m |
|---|---|
| Power consumption max. without load | ⤠30 mA |
| Supply voltage | 4.5Â VÂ ... 32Â V |
| Load current max. | 30Â mA |
| Maximum output frequency | 820Â kHz |
| Reference signal, number | 1 |
| Reference signal, position | 90°, electric, logically gated with A and B |
| Reverse polarity protection | â |
| Short-circuit protection of the outputs | â |
Mechanics
| Measuring wheel circumference | 300Â mm |
|---|---|
| Measuring wheel surface | O-ring NBR70Â 1) |
| Mass | +Â 500Â g |
| Shaft | Stainless steel |
| Flange | Aluminum |
| Housing | Aluminum |
| Cable | PUR |
| Spring element | Not contained in the scope of delivery of the system |
| Measuring wheel, spring arm | Aluminum |
| Start up torque | 0.8 Ncm (at 20 °C) |
| Operating torque | 0.6 Ncm (at 20 °C) |
| Operating speed | 1,500 minâ»Â¹ |
| Maximum operating speed | 3,000 minâ»Â¹Â 2) |
| Bearing lifetime | 3Â x 10^9Â revolutions |
| Maximum travel/deflection of spring arm | 40Â mm |
| Max. permissible working area for the spring (continuous operation) | ± 10 mm |
| Recommended spring deflection | 20 mm ... 40 mm |
| Mounting position relative to the measuring object | Preferably from above, from below possible |
Ambient data
| EMC | According to ENÂ 61000-6-2 and ENÂ 61000-6-4 |
|---|---|
| Enclosure rating | IP65 |
| Permissible relative humidity | 90Â % (Condensation not permitted) |
| Operating temperature range | â20 °C ... +100 °C |
| Storage temperature range | â40 °C ... +100 °C, without package |
| Resistance to shocks | 70Â g, 6Â ms (ENÂ 60068-2-27) |
| Resistance to vibration | 30 g, 10 Hz ... 2,000 Hz (EN 60068-2-6) |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27270501 |
|---|---|
| ECLASS 5.1.4 | 27270501 |
| ECLASS 6.0 | 27270590 |
| ECLASS 6.2 | 27270590 |
| ECLASS 7.0 | 27270501 |
| ECLASS 8.0 | 27270501 |
| ECLASS 8.1 | 27270501 |
| ECLASS 9.0 | 27270501 |
| ECLASS 10.0 | 27270790 |
| ECLASS 11.0 | 27270707 |
| ECLASS 12.0 | 27270504 |
| ETIM 5.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| UNSPSC 16.0901 | 41112113 |
