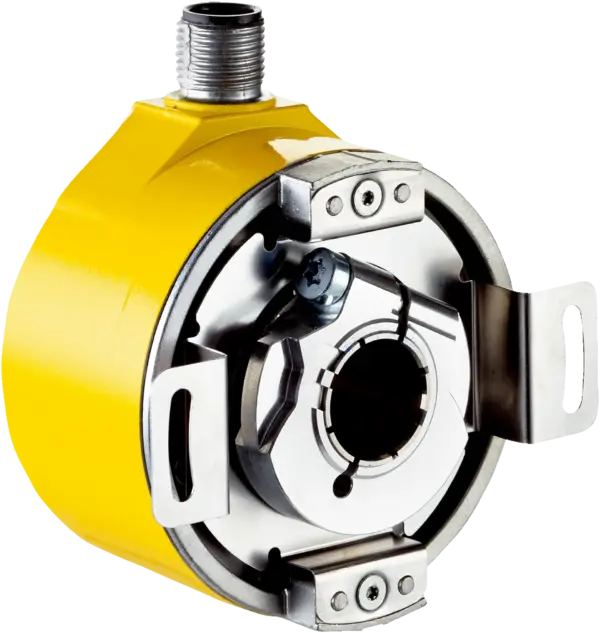

Sick DFS60S-BAOC01024
Safety encoders | DFS60S Pro | DFS60S-BAOC01024 | Safety integrity level: SIL 2 (IEC 61508), SILCL2 (IEC 62061) | Performance level: PL d (EN ISO 13849) | Mechanical design: Blind hollow shaft 6 mm (w…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safety encoders | DFS60S Pro | DFS60S-BAOC01024 | Safety integrity level: SIL 2 (IEC 61508), SILCL2 (IEC 62061) | Performance level: PL d (EN ISO 13849) | Mechanical design: Blind hollow shaft 6 mm (with feather key) | Communication interface: 4.5 V … 32 V, Sin/Cos, non programmable | Connection type: Male connector, M12, 8-pin, radial | Sine/cosine periods per revolution: 1,024 | Anti-dither: no
Specification
Safety-related parameters
| Safety integrity level | SIL 2Â (IECÂ 61508), SILCL2 (IECÂ 62061)Â 1) |
|---|---|
| Performance level | PL d (EN ISO 13849) 1) |
| Category | 3Â (ENÂ ISOÂ 13849) |
| PFH (mean probability of a dangerous failure per hour) | 1.7 x 10-8 2) |
| TM (mission time) | 20Â years (ENÂ ISOÂ 13849) |
| Safety-related measuring step | 0.09°, Quadrature analysis |
| Safety-related accuracy | ± 0.09° |
Performance
| Sine/cosine periods per revolution | 1,024 |
|---|---|
| Measuring step | 0.3 â³, For interpolation of the sine/cosine signals with e.g. 12 bit 1) |
| Integral non-linearity | Typ. ± 45 Ⳡ(without mechanical tension of the stator coupling) |
| Differential non-linearity | ± 7 Ⳡ|
Interfaces
| Communication interface | Incremental |
|---|---|
| Communication Interface detail | Sin/Cos 1) |
| Number of signal channels | 6-channel |
| Initialization time | 50 ms 2) |
| Output frequency | â¤Â 153.6 kHz |
| Power consumption | â¤Â 0.7 W (without load) |
| Load resistance | â¥Â 120 Ω |
Electronics
| Connection type | Male connector, M12, 8-pin, radial |
|---|---|
| Supply voltage | 4.5Â ... 32Â V |
| Reference signal, number | 1 |
| Reference signal, position | 90°, electronically, gated with Sinus and Cosinus |
| Reverse polarity protection | â |
| Protection class | III (according to DINÂ ENÂ 61140) |
| Short-circuit protection of the outputs | â 1) |
Mechanics
| Mechanical design | Blind hollow shaft |
|---|---|
| Shaft diameter | 6Â mmWith feather key |
| Weight | Approx. 0.25 kg 1) |
| Shaft material | Stainless steel |
| Flange material | Die-cast zinc |
| Housing material | Aluminum die cast |
| Start up torque | â¤Â 0.8 Ncm (+20 °C) |
| Operating torque | â¤Â 0.6 Ncm (+20 °C) |
| Permissible movement static | ± 0.3 mm (radial)± 0.5 mm (axial) |
| Permissible movement dynamic | ± 0.05 mm (radial)± 0.1 mm (axial) |
| Operating speed | â¤Â 6,000 minâ»Â¹Â 2) |
| Moment of inertia of the rotor | 56 gcm² |
| Bearing lifetime | 3.6 x 109 revolutions 3) |
| Angular acceleration | â¤Â 500,000 rad/s² |
Ambient data
| EMC | According to ENÂ 61000-6-2, ENÂ 61000-6-3 and IECÂ 61326-3-1 |
|---|---|
| Enclosure rating | IP65 (IECÂ 60529)Â 1) |
| Permissible relative humidity | 90Â % (Condensation not permitted) |
| Operating temperature range | â30 °C ... +95 °C 2) |
| Storage temperature range | â30 °C ... +85 °C, without package |
| Resistance to shocks | 100Â g, 6Â ms (ENÂ 60068-2-27)Â 3) |
| Resistance to vibration | 30 g, 10 Hz ... 1,000 Hz (EN 60068-2-6) |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
| EC-Type-Examination approval | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27270501 |
|---|---|
| ECLASS 5.1.4 | 27270501 |
| ECLASS 6.0 | 27270590 |
| ECLASS 6.2 | 27270590 |
| ECLASS 7.0 | 27270501 |
| ECLASS 8.0 | 27270501 |
| ECLASS 8.1 | 27270501 |
| ECLASS 9.0 | 27270501 |
| ECLASS 10.0 | 27270501 |
| ECLASS 11.0 | 27270501 |
| ECLASS 12.0 | 27270501 |
| ETIM 5.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| UNSPSC 16.0901 | 41112113 |
