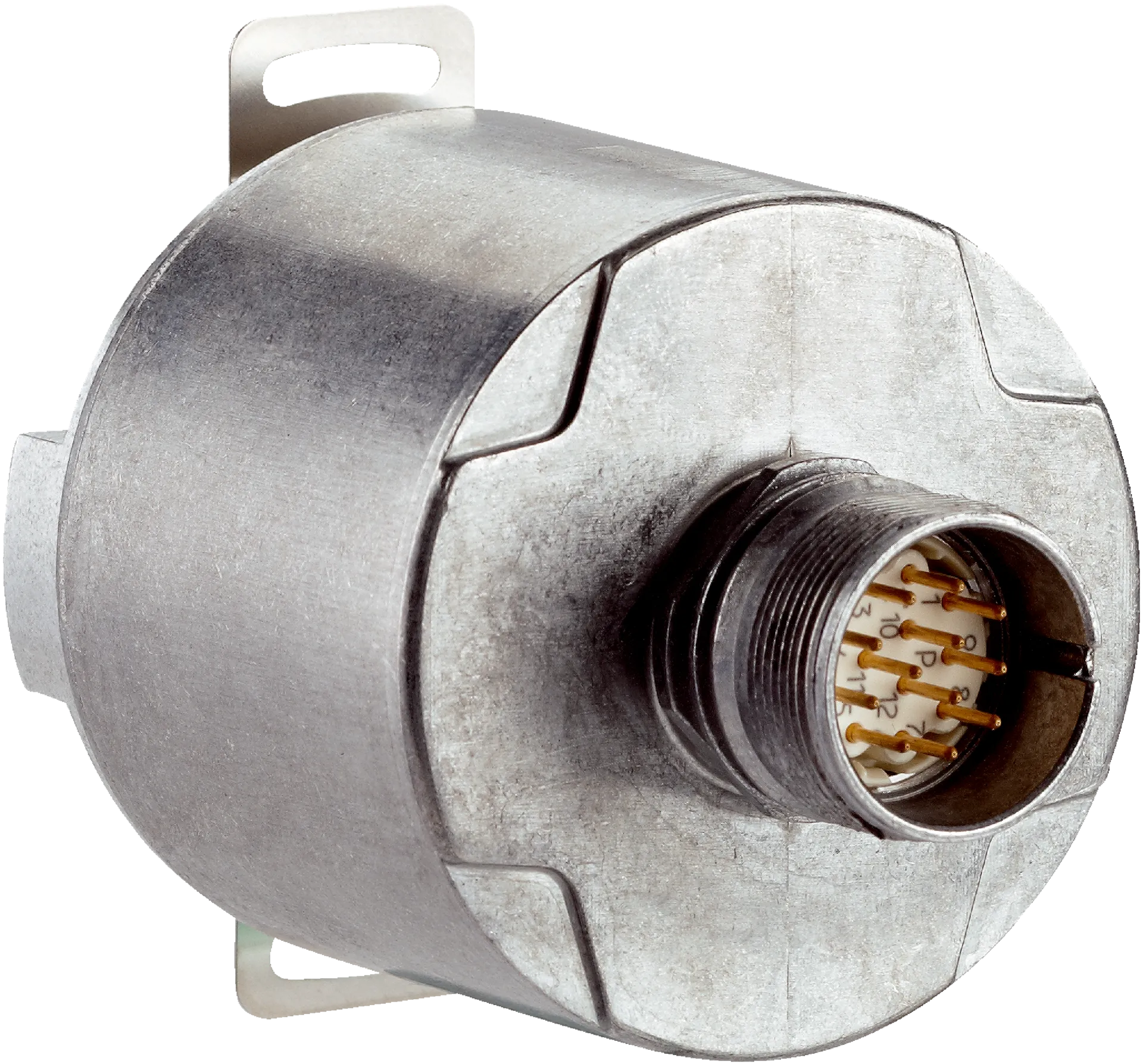

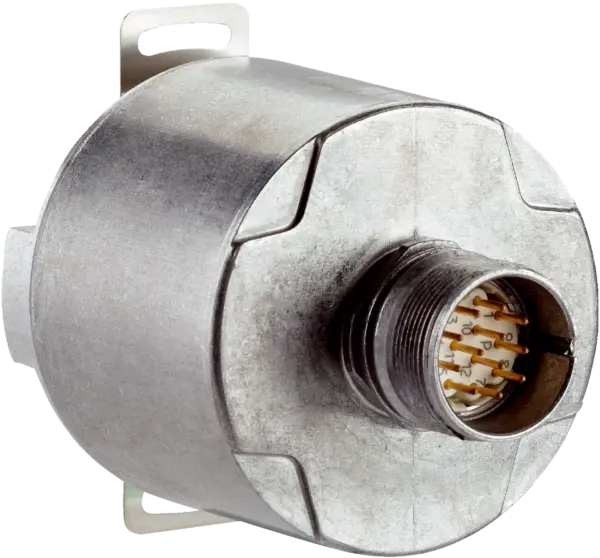

Incremental encoders | DFS60 | DFS60A-BEPB65536 | Mechanical design: Blind hollow shaft 12 mm (Front clamp) | Communication interface: 4.5 V … 32 V, TTL, HTL, programmable | Connection type: Male connector, M23, 12-pin, axial | Pulses per revolution: 65,536
Specification
Safety-related parameters
| MTTFD (mean time to dangerous failure) | 300Â years (ENÂ ISOÂ 13849-1)Â 1) |
|---|
Performance
| Pulses per revolution | 65,536Â 1) |
|---|---|
| Measuring step | 90°, electric/pulses per revolution |
| Measuring step deviation at binary number of lines | ± 0.0015° |
| Error limits | ± 0.03° |
Interfaces
| Communication interface | Incremental |
|---|---|
| Communication Interface detail | TTLÂ / HTL |
| Factory setting | Factory setting: output level TTL |
| Number of signal channels | 6-channel |
| Programmable/configurable | â |
| Initialization time | 32 ms, 30 ms 1) |
| Output frequency | â¤Â 820 kHz |
| Load current | â¤Â 30 mA |
| Power consumption | â¤Â 0.7 W (without load) |
Electronics
| Connection type | Male connector, M23, 12-pin, axial |
|---|---|
| Supply voltage | 4.5Â ... 32Â V |
| Reference signal, number | 1 |
| Reference signal, position | 90°, electric, logically gated with A and B |
| Reverse polarity protection | â |
| Short-circuit protection of the outputs | â 1) 2) |
Mechanics
| Mechanical design | Blind hollow shaft |
|---|---|
| Shaft diameter | 12Â mmFront clamp |
| Weight | +Â 0.2Â kg |
| Shaft material | Stainless steel |
| Flange material | Aluminum |
| Housing material | Aluminum die cast |
| Start up torque | 0.8 Ncm (+20 °C) |
| Operating torque | 0.6 Ncm (+20 °C) |
| Permissible movement static | ± 0.3 mm (radial)± 0.5 mm (axial) |
| Permissible movement dynamic | ± 0.05 mm (radial)± 0.01 mm (axial) |
| Operating speed | â¤Â 6,000 minâ»Â¹Â 1) |
| Moment of inertia of the rotor | 40 gcm² |
| Bearing lifetime | 3.6Â x 10^10 revolutions |
| Angular acceleration | â¤Â 500,000 rad/s² |
Ambient data
| EMC | According to ENÂ 61000-6-2 and ENÂ 61000-6-3 |
|---|---|
| Enclosure rating | IP67, Housing side, male connector (IECÂ 60529)Â 1)IP65, shaft side (IECÂ 60529) |
| Permissible relative humidity | 90Â % (Condensation not permitted) |
| Operating temperature range | â40 °C ... +100 °C 2)â30 °C ... +100 °C 3) |
| Storage temperature range | â40 °C ... +100 °C, without package |
| Resistance to shocks | 100Â g, 6Â ms (ENÂ 60068-2-27) |
| Resistance to vibration | 30 g, 10 Hz ... 2,000 Hz (EN 60068-2-6) |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27270501 |
|---|---|
| ECLASS 5.1.4 | 27270501 |
| ECLASS 6.0 | 27270590 |
| ECLASS 6.2 | 27270590 |
| ECLASS 7.0 | 27270501 |
| ECLASS 8.0 | 27270501 |
| ECLASS 8.1 | 27270501 |
| ECLASS 9.0 | 27270501 |
| ECLASS 10.0 | 27270501 |
| ECLASS 11.0 | 27270501 |
| ECLASS 12.0 | 27270501 |
| ETIM 5.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| UNSPSC 16.0901 | 41112113 |
