Sick DBS60I-BBCM05000
Incremental encoders | DBS60 | DBS60I-BBCM05000 | Mechanical design: Blind hollow shaft 8 mm (Front clamp) | Communication interface: 10 V … 30 V, TTL, RS-422 | Connection type: Cable, 8-wire, radia…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

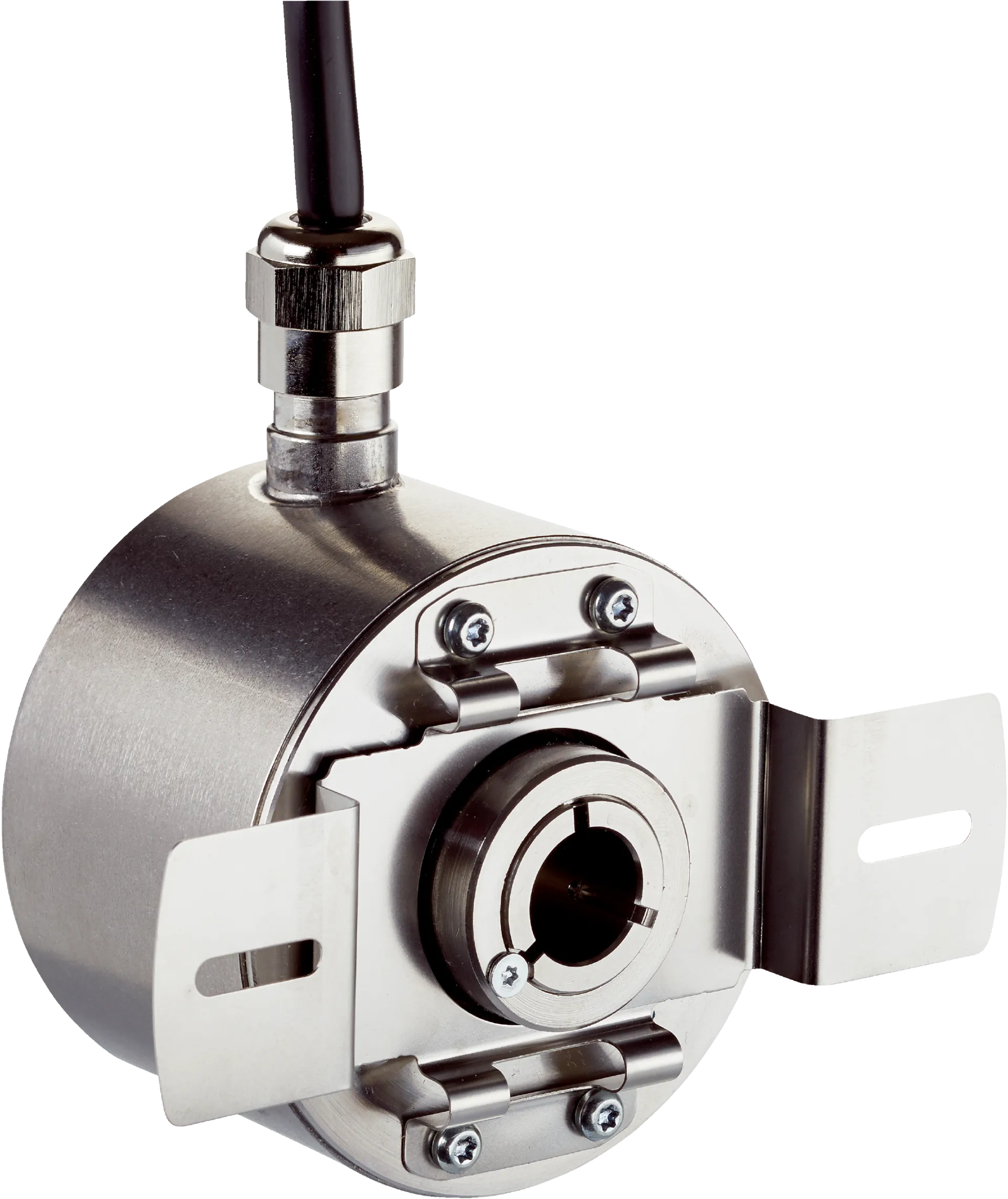

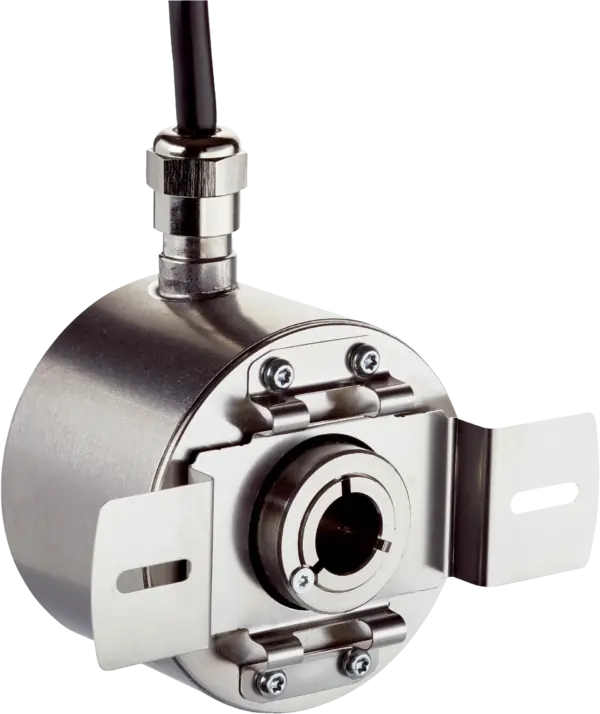

Incremental encoders | DBS60 | DBS60I-BBCM05000 | Mechanical design: Blind hollow shaft 8 mm (Front clamp) | Communication interface: 10 V … 30 V, TTL, RS-422 | Connection type: Cable, 8-wire, radial, 5 m | Pulses per revolution: 5,000 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm | Encoder material / Enclosure rating: Stainless steel V2A / IP67
Specification
Safety-related parameters
| MTTFD (mean time to dangerous failure) | 500Â years (ENÂ ISOÂ 13849-1)Â 1) |
|---|
Performance
| Pulses per revolution | 5,000 |
|---|---|
| Measuring step | 90°, electric/pulses per revolution |
| Measuring step deviation | ± 36° / pulses per revolution |
| Error limits | Measuring step deviation x 3 |
| Duty cycle | ⤠0.5 ± 10 % |
Interfaces
| Communication interface | Incremental |
|---|---|
| Communication Interface detail | TTLÂ / RS-422 |
| Number of signal channels | 6-channel |
| Initialization time | < 5 ms 1) |
| Output frequency | â¤Â 300 kHz 2) |
| Load current | â¤Â 30 mA, per channel |
| Power consumption | â¤Â 0.5 W (without load) |
Electronics
| Connection type | Cable, 8-wire, radial, 5Â m |
|---|---|
| Supply voltage | 10Â ... 30Â V |
| Reference signal, number | 1 |
| Reference signal, position | 90°, electric, logically gated with A and B |
| Reverse polarity protection | â |
| Short-circuit protection of the outputs | â 1) |
Mechanics
| Mechanical design | Blind hollow shaft |
|---|---|
| Shaft diameter | 8Â mmFront clamp |
| Flange type / stator coupling | 2-sided stator coupling, slot, screw hole circle 63â83Â mm |
| Weight | 0.44 kg 1) |
| Shaft material | Stainless steel V2A |
| Flange material | Stainless steel V2A |
| Housing material | Stainless steel V2A |
| Material, cable | PVC |
| Shaft sealing ring material | FKM80 |
| Material, cable gland | Stainless steel V2A / Nickel-plated brass |
| Start up torque | 2.1 Ncm (+20 °C) |
| Operating torque | 2 Ncm (+20 °C) |
| Permissible movement static | ± 0.3 mm (radial)± 0.5 mm (axial) |
| Permissible movement dynamic | ± 0.1 mm± 0.2 mm |
| Operating speed | â¤Â 6,000 minâ»Â¹Â 2) |
| Moment of inertia of the rotor | 52 gcm² |
| Bearing lifetime | 3.6Â x 109Â revolutions |
| Angular acceleration | â¤Â 500,000 rad/s² |
Ambient data
| EMC | According to ENÂ 61000-6-2 and ENÂ 61000-6-3 |
|---|---|
| Enclosure rating | IP67, cable connection (IECÂ 60529) |
| Permissible relative humidity | 90Â % (Condensation not permitted) |
| Operating temperature range | â30 °C ... +85 °C, at more than 3,000 pulses per revolution |
| Storage temperature range | â40 °C ... +100 °C, without package |
| Resistance to shocks | 100Â g, 6Â ms (ENÂ 60068-2-27) |
| Resistance to vibration | 10 g, 10 Hz ... 2,000 Hz (EN 60068-2-6) |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27270501 |
|---|---|
| ECLASS 5.1.4 | 27270501 |
| ECLASS 6.0 | 27270590 |
| ECLASS 6.2 | 27270590 |
| ECLASS 7.0 | 27270501 |
| ECLASS 8.0 | 27270501 |
| ECLASS 8.1 | 27270501 |
| ECLASS 9.0 | 27270501 |
| ECLASS 10.0 | 27270501 |
| ECLASS 11.0 | 27270501 |
| ECLASS 12.0 | 27270501 |
| ETIM 5.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| UNSPSC 16.0901 | 41112113 |
