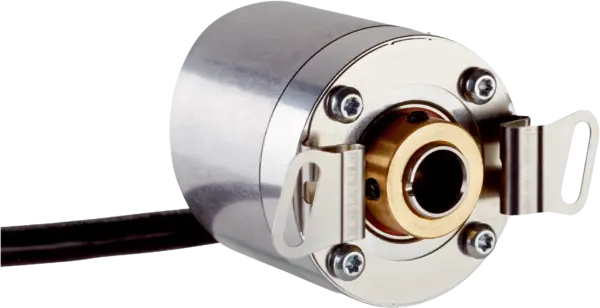

Sick DBS36E-BBPK00200
Incremental encoders | DBS36/50 | DBS36E-BBPK00200 | Mechanical design: Blind hollow shaft 8 mm (Front clamp) | Communication interface: 4.5 V … 5.5 V, Open Collector | Connection type: Cable, 5-wir…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Incremental encoders | DBS36/50 | DBS36E-BBPK00200 | Mechanical design: Blind hollow shaft 8 mm (Front clamp) | Communication interface: 4.5 V … 5.5 V, Open Collector | Connection type: Cable, 5-wire, universal, 1.5 m | Pulses per revolution: 200
Specification
Safety-related parameters
| MTTFD (mean time to dangerous failure) | 600Â years (ENÂ ISOÂ 13849-1)Â 1) |
|---|
Performance
| Pulses per revolution | 200 |
|---|---|
| Measuring step | 90°, electric/pulses per revolution |
| Measuring step deviation | ± 18° / pulses per revolution |
| Error limits | ± 54° / pulses per revolution |
| Duty cycle | ⤠0.5 ± 5 % |
Interfaces
| Communication interface | Incremental |
|---|---|
| Communication Interface detail | Open Collector |
| Number of signal channels | 3Â channel |
| Initialization time | <Â 3Â ms |
| Output frequency | â¤Â 300 kHz |
| Load current | â¤Â 30 mA |
| Operating current | â¤Â 50 mA (without load) |
Electronics
| Connection type | Cable, 5-wire, universal, 1.5Â m |
|---|---|
| Supply voltage | 4.5Â ... 5.5Â V |
| Reference signal, number | 1 |
| Reference signal, position | 90°, electric, logically gated with A and B |
| Reverse polarity protection | â |
| Short-circuit protection of the outputs | â 1) |
Mechanics
| Mechanical design | Blind hollow shaft |
|---|---|
| Shaft diameter | 8 mmFront clamp 1) |
| Weight | +Â 150Â g (with connecting cable) |
| Shaft material | Stainless steel |
| Flange material | Aluminum |
| Housing material | Aluminum |
| Material, cable | PVC |
| Start up torque | + 0.5 Ncm (+20 °C) |
| Operating torque | 0.4 Ncm (+20 °C) |
| Permissible movement static | ± 0.3 mm (radial)± 0.5 mm (axial) 2) |
| Permissible movement dynamic | ± 0.1 mm (radial)± 0.2 mm (axial) 2) |
| Operating speed | 6,000 minâ»Â¹Â 3) |
| Maximum operating speed | â¤Â 8,000 minâ»Â¹Â 4) |
| Moment of inertia of the rotor | 0.8 gcm² |
| Bearing lifetime | 2Â x 10^9Â revolutions |
| Angular acceleration | â¤Â 500,000 rad/s² |
Ambient data
| EMC | According to ENÂ 61000-6-2Â and ENÂ 61000-6-3Â (class A) |
|---|---|
| Enclosure rating | IP65 |
| Permissible relative humidity | 90Â % (Condensation not permitted) |
| Operating temperature range | â20 °C ... +85 °C, â35 °C ... +95 °C on request |
| Storage temperature range | â40 °C ... +100 °C, without package |
| Resistance to shocks | 100Â g, 6Â ms (ENÂ 60068-2-27) |
| Resistance to vibration | 20 g, 10 Hz ... 2,000 Hz (EN 60068-2-6) |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| China RoHS | â |
| cRUus certificate | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27270501 |
|---|---|
| ECLASS 5.1.4 | 27270501 |
| ECLASS 6.0 | 27270590 |
| ECLASS 6.2 | 27270590 |
| ECLASS 7.0 | 27270501 |
| ECLASS 8.0 | 27270501 |
| ECLASS 8.1 | 27270501 |
| ECLASS 9.0 | 27270501 |
| ECLASS 10.0 | 27270501 |
| ECLASS 11.0 | 27270501 |
| ECLASS 12.0 | 27270501 |
| ETIM 5.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| UNSPSC 16.0901 | 41112113 |
