Linear encoders | DAX | DAXSON-0300S1040901300 | Design: DAX Slider | Communication interface: CANopen | Baud rate: 250 kbit/s | Node ID: 7Fh (127) | Connection type: Male connector, M12, 5-pin | Reso…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

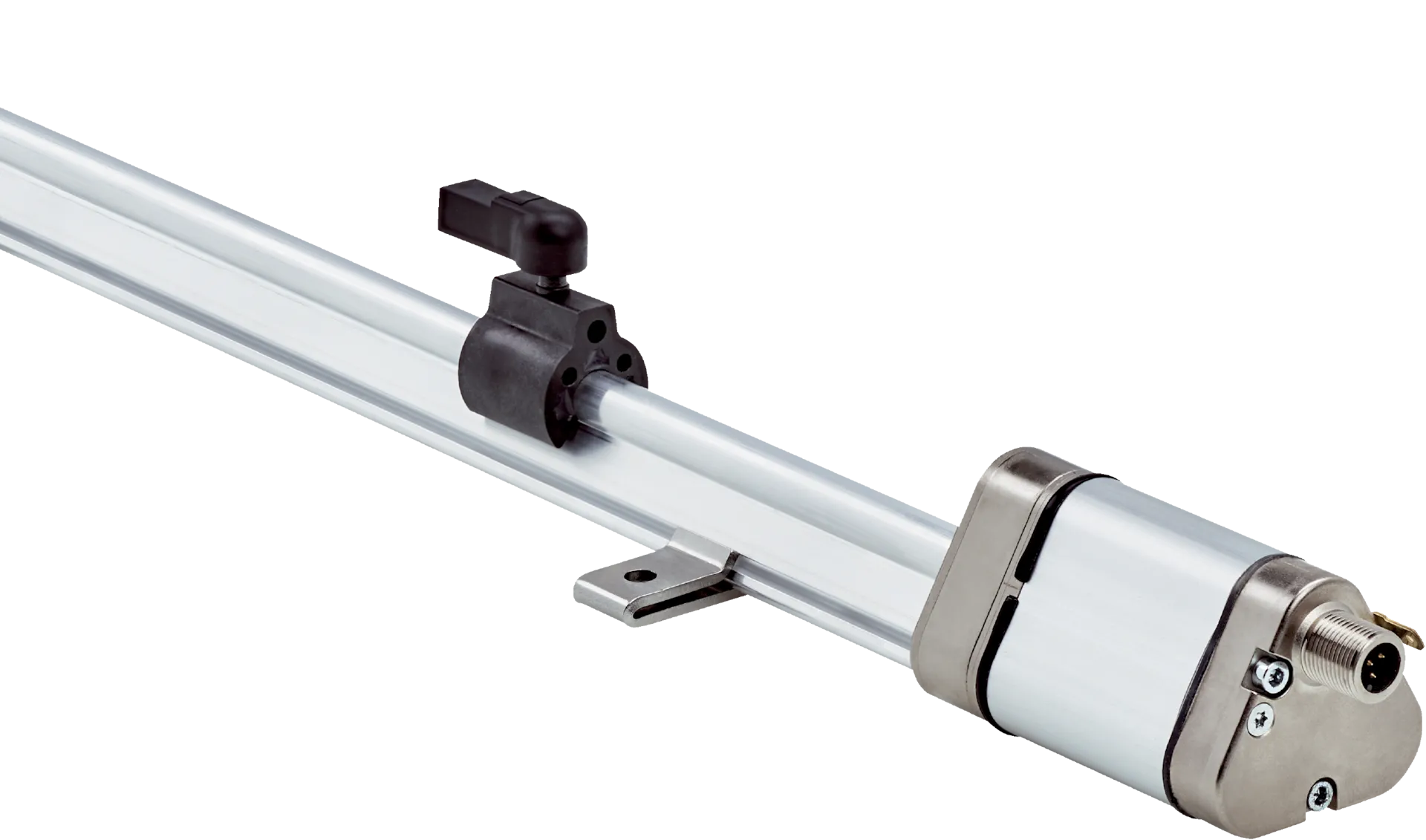

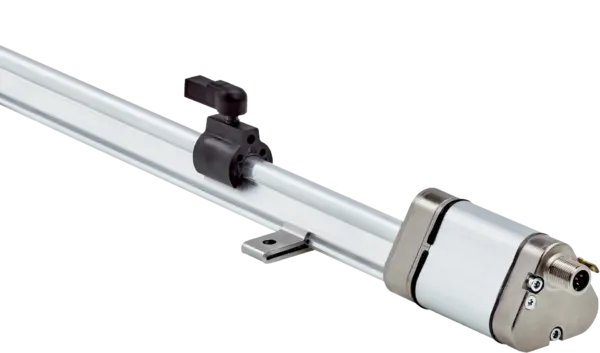

Linear encoders | DAX | DAXSON-0300S1040901300 | Design: DAX Slider | Communication interface: CANopen | Baud rate: 250 kbit/s | Node ID: 7Fh (127) | Connection type: Male connector, M12, 5-pin | Resolution: 100 µm | Measurement range: 0 mm … 300 mm | Supply voltage: 24 V DC (± 20%) | Unusable range (zero zone/damping zone): 25 mm / 63 mm | Magnet type: Slide magnet
Specification
Safety-related parameters
| MTTFD (mean time to dangerous failure) | 123 years 1) |
|---|
Performance
| Linearity | ≤ 0.02% F.S. (Minimum 250 µm) 1) 2) |
|---|---|
| Repeatability | ≤ ± 100 µm |
| Measured values | Positioning, speed |
| Measuring range | 0 mm ... 300 mm |
| Null zone | 25 mm |
| Damping zone | 63Â mm |
| Magnet shape | Slide magnet |
| Configured for number of magnets | 1Â piece |
| Magnet travel speed | ≤ 10 m/s |
| Resolution | 100 µm |
| Cycle time | 1Â ms |
Interfaces
| Communication interface | CANopen |
|---|---|
| Data protocol | Data protocol: CANopen CiA DS-301 V4.02, CiA DSP-305 LSS, Encoder Profile: - CIA DS-406, V3.2. - Class C2 |
| Data transmission rate | 250Â kbit/s |
| Node ID | 7Fh (127) |
Electronics
| Connection type | Male connector, M12, 5-pin |
|---|---|
| Pinouts | 1=n.c.; 2=VÂ DC; 3=GND; 4=CAN_H; 5=CAN_L |
| Male connector coding | A-coded |
| Supply voltage | 24 V DC (± 20%) |
| Reverse polarity protection | Up to −30 V DC |
| Residual ripple | ≤ 0.28 Vpp |
| Dielectric strength | 500Â VÂ DC, 0Â V against housing |
| Over voltage protection | ≤ 36 V DC |
Mechanics
| Mechanical design | DAX Slider |
|---|---|
| Housing | Aluminum (anodised), zinc, stainless steel, brass |
| Mounting bracket | Stainless steel 1.4301 |
Ambient data
| EMC | According to ENÂ 61000-6-2 and ENÂ 61000-6-4 |
|---|---|
| Enclosure rating | IP65 / IP67Â 1) |
| Operating temperature range | –40 °C ... +85 °C |
| Storage temperature range | –40 °C ... +85 °C |
| Permissible relative humidity | 90Â % (Condensation not permitted) |
| Resistance to shocks | 100Â g, 6Â ms (IECÂ 60068-2-27) |
| Resistance to vibration | 15 g / 10…2,000 Hz according to IEC 60068-2-6 |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ |
Classifications
| ECLASS 5.0 | 27270705 |
|---|---|
| ECLASS 5.1.4 | 27270705 |
| ECLASS 6.0 | 27270705 |
| ECLASS 6.2 | 27270705 |
| ECLASS 7.0 | 27270705 |
| ECLASS 8.0 | 27270705 |
| ECLASS 8.1 | 27270705 |
| ECLASS 9.0 | 27270705 |
| ECLASS 10.0 | 27270705 |
| ECLASS 11.0 | 27270705 |
| ECLASS 12.0 | 27274304 |
| ETIM 5.0 | EC002544 |
| ETIM 6.0 | EC002544 |
| ETIM 7.0 | EC002544 |
| ETIM 8.0 | EC002544 |
| UNSPSC 16.0901 | 41111613 |
