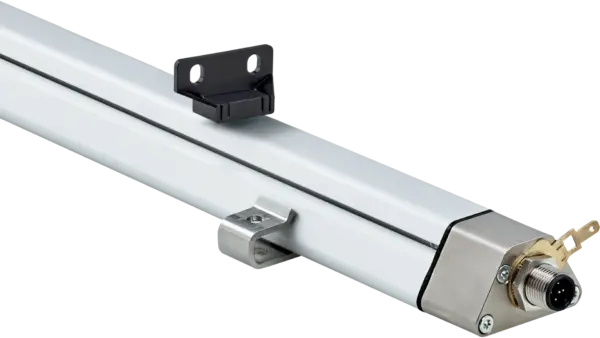

Sick DAXLVN-0400BA080000M01
Linear encoders | DAX | DAXLVN-0400BA080000M01 | Design: DAX Low Profile | Communication interface: Analog / Voltage | Voltage output: 0 V … 10 V | Connection type: Male connector, M12, 8-pin | Meas…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Linear encoders | DAX | DAXLVN-0400BA080000M01 | Design: DAX Low Profile | Communication interface: Analog / Voltage | Voltage output: 0 V … 10 V | Connection type: Male connector, M12, 8-pin | Measurement range: 0 mm … 400 mm | Supply voltage: 24 V DC (± 20%) | Sequence of signals: Signal 1: rising, signal 2: falling | Unusable range (zero zone/damping zone): 55 mm / 63 mm | Magnet type: Small block magnet
Specification
Safety-related parameters
| MTTFD (mean time to dangerous failure) | 123 years 1) |
|---|
Performance
| Linearity | â¤Â 0.03% F.S. (Minimum 90 µm) 1) 2) |
|---|---|
| Repeatability | ⤠± 20 µm |
| Measured values | Positioning |
| Measuring range | 0 mm ... 400 mm |
| Null zone | 55 mm |
| Damping zone | 63Â mm |
| Magnet shape | Small block magnet |
| Configured for number of magnets | 1Â piece |
| Magnet travel speed | Any |
| Measuring frequency (internal) | <Â 2Â ms |
Interfaces
| Communication interface | Analog |
|---|---|
| Communication Interface detail | Voltage |
| Output signal | 0Â VÂ ... 10Â V |
| Number of signals | Two output signals (one output signal + an inverted second output signal) |
| Sequence of signals | Signal 1: rising, signal 2: falling |
| Load resistance | > 10 kΩ |
Electronics
| Connection type | Male connector, M12, 8-pin |
|---|---|
| Pinouts | 1=Output signal ground (0Â V PIN 3); 2=Output signal ground (0Â V PIN 5); 3=Signal 2; 4=n.c.; 5=Signal 1; 6=Power ground; 7=+24Â VÂ DC; 8=n.c. |
| Male connector coding | A-coded |
| Supply voltage | 24 V DC (± 20%) |
| Reverse polarity protection | Up to â30Â VÂ DC |
| Residual ripple | â¤Â 0.28 Vpp |
| Dielectric strength | 500Â VÂ DC, 0Â V against housing |
| Over voltage protection | â¤Â 36 V DC |
Mechanics
| Mechanical design | DAX Low Profile |
|---|---|
| Housing | Aluminum (anodised), zinc, stainless steel, brass |
| Mounting bracket | Stainless steel 1.4301 |
Ambient data
| EMC | According to ENÂ 61000-6-2 and ENÂ 61000-6-4 |
|---|---|
| Enclosure rating | IP65 / IP67Â 1) |
| Operating temperature range | â40 °C ... +85 °C |
| Storage temperature range | â40 °C ... +85 °C |
| Permissible relative humidity | 90Â % (Condensation not permitted) |
| Resistance to shocks | 100Â g, 6Â ms (IECÂ 60068-2-27) |
| Resistance to vibration | 8 g / 10â¦2,000 Hz according to IEC 60068-2-6 2) |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27270705 |
|---|---|
| ECLASS 5.1.4 | 27270705 |
| ECLASS 6.0 | 27270705 |
| ECLASS 6.2 | 27270705 |
| ECLASS 7.0 | 27270705 |
| ECLASS 8.0 | 27270705 |
| ECLASS 8.1 | 27270705 |
| ECLASS 9.0 | 27270705 |
| ECLASS 10.0 | 27270705 |
| ECLASS 11.0 | 27270705 |
| ECLASS 12.0 | 27274304 |
| ETIM 5.0 | EC002544 |
| ETIM 6.0 | EC002544 |
| ETIM 7.0 | EC002544 |
| ETIM 8.0 | EC002544 |
| UNSPSC 16.0901 | 41111613 |
