Description

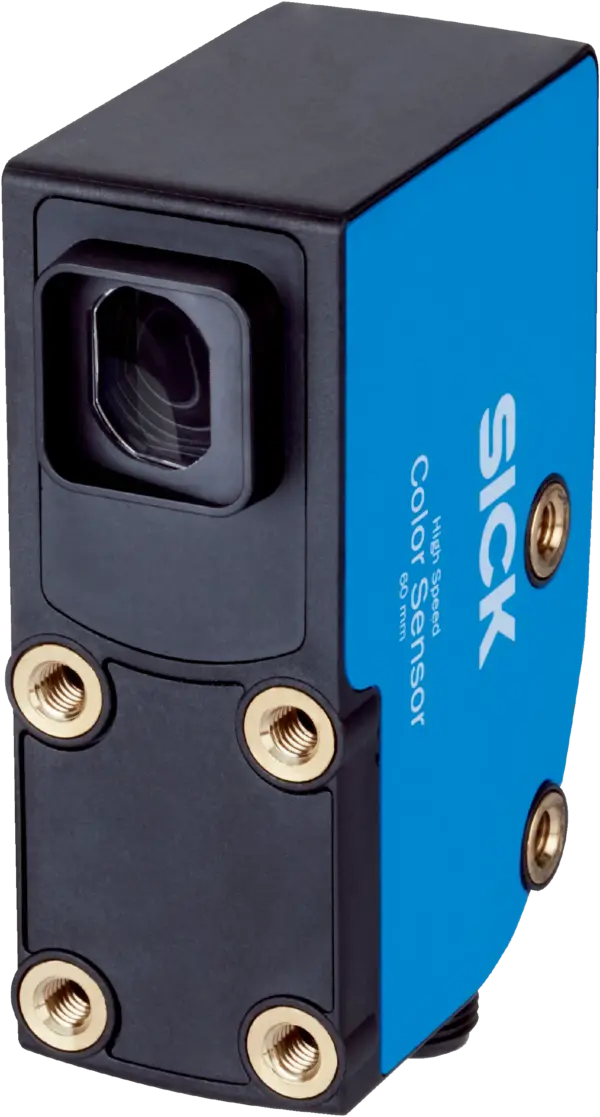

Color sensors | CSS/CSX High Speed | CSX-WNFA541252ZZZZ | Light source: LED | Housing design: Large | Communication interface: – | Sensing distance: 60 mm | Switching output: NPN | Light spot size: Ø 12 mm | Light spot direction: Round, large | Light emission: Long side of housing | Connection type Detail: Plug, M12, 5-pin
Specification
Features
| Parameter presettings | None |
|---|---|
| Housing design | Large |
| Dimensions (W x H x D) | 30 mm x 53 mm x 78.5 mm |
| Light source | LED, RGBÂ 1) |
| Light emission | Long side of housing |
| Light spot size | ÃÂ 12Â mm |
| Light spot direction | Round, large |
| Wave length | 460Â nm, 530Â nm, 625Â nm |
| LED risk group marking | 1 |
| Color mode | C (Color)C + I (Color + Illumination) |
| Sensing distance | 60Â mm |
| Sensing distance tolerance | ± 9 mm |
| Teach-in mode | Single value teach-inMulti value teach-in |
| Output mode | 2Â colors in standard mode/best fit mode3Â colors in coded mode |
| Output (channel) | 2Â Ã hardware switching outputs |
| Adjustment of the sensitivity | Continuous: 0Â ... 999 |
| Available job banks | 4 |
| MTTFD | 263.7Â years |
Interfaces
| Digital output | Q1, Q2 |
|---|---|
| Number | 2 |
| Digital input | In1, In2 |
| Number | 2 |
Electronics
| Supply voltage | 10.8Â VÂ DCÂ ... 28.8Â VÂ DCÂ 1) |
|---|---|
| Ripple | â¤Â 5 Vpp 2) |
| Current consumption | <Â 120Â mAÂ 3) |
| Switching frequency | 13.8Â kHz |
| Jitter | 18 µs |
| Switching output | NPN |
| Switching output (voltage) | NPN: HIGH = VS / LOW ⤠3 V |
| Output current Imax. | 100Â mAÂ 4) |
| Input, teach-in (ET) | Teach: U < 2Â V |
| Input, blanking input (AT) | Blanked: U < 2Â V |
| Retention time (ET) | 3Â s, non-volatile memory |
| Time delay | None |
| Protection class | III |
| Circuit protection | UV connections, reverse polarity protectedOutput Q short-circuit protectedInterference pulse suppression |
Mechanics
| Housing material | VISTAL® |
|---|---|
| Optics material | Glass |
| Weight | 94Â g |
Ambient data
| Ambient operating temperature | â20 °C ... +60 °C |
|---|---|
| Ambient temperature, storage | â25 °C ... +75 °C |
| Shock load | According to IECÂ 60068-2-27 (30Â g/11 ms) |
| Enclosure rating | IP67 |
| UL File No. | E181493 |
Connection type/pinouts
| BN 1 | + (L+) |
|---|---|
| WH 2 | QL2/IN1 |
| BU 3 | - (M) |
| BK 4 | QL1 |
| GY 5 | In2 |
Classifications
| ECLASS 5.0 | 27270907 |
|---|---|
| ECLASS 5.1.4 | 27270907 |
| ECLASS 6.0 | 27270907 |
| ECLASS 6.2 | 27270907 |
| ECLASS 7.0 | 27270907 |
| ECLASS 8.0 | 27270907 |
| ECLASS 8.1 | 27270907 |
| ECLASS 9.0 | 27270907 |
| ECLASS 10.0 | 27270907 |
| ECLASS 11.0 | 27270907 |
| ECLASS 12.0 | 27270907 |
| ETIM 5.0 | EC001817 |
| ETIM 6.0 | EC001817 |
| ETIM 7.0 | EC001817 |
| ETIM 8.0 | EC001817 |
| UNSPSC 16.0901 | 39121528 |
