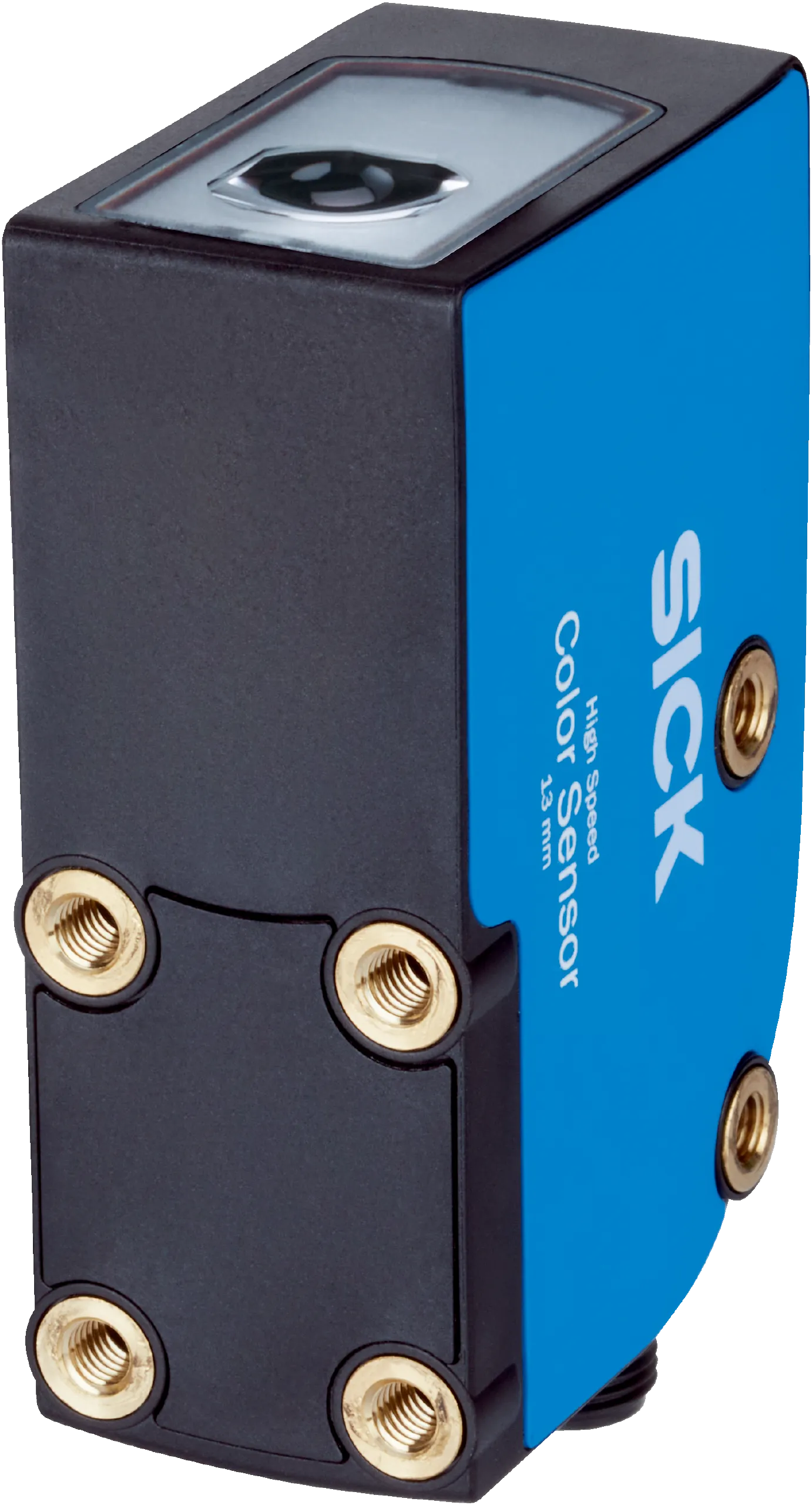

Sick CSX-WBF114228AA10Z
Color sensors | CSS/CSX High Speed | CSX-WBF114228AA10Z | Light source: LED | Housing design: Large | Communication interface: IO-Link | Sensing distance: 13 mm | Switching output: Push-pull: PNP/NPN…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Color sensors | CSS/CSX High Speed | CSX-WBF114228AA10Z | Light source: LED | Housing design: Large | Communication interface: IO-Link | Sensing distance: 13 mm | Switching output: Push-pull: PNP/NPN | Light spot size: 2 mm x 4 mm | Light spot direction: Vertical | Light emission: Short device side | Connection type Detail: Male connector M12, 8-pin
Specification
Features
| Parameter presettings | Pin 4Â /Â pin 5: Preset configuration |
|---|---|
| Housing design | Large |
| Dimensions (W x H x D) | 30 mm x 53 mm x 78.5 mm |
| Light source | LED, RGBÂ 1) |
| Light emission | Short device side |
| Light spot size | 2 mm x 4 mm |
| Light spot direction | Vertical 2) |
| Wave length | 460Â nm, 530Â nm, 625Â nm |
| LED risk group marking | 1 |
| Color mode | C (Color)C + I (Color + Illumination) |
| Sensing distance | 13Â mm |
| Sensing distance tolerance | ± 5 mm |
| Teach-in mode | Single value teach-inMulti value teach-in |
| Output mode | 4Â colors in standard mode/best fit mode15Â colors in coded mode |
| Output (channel) | 4Â x hardware switching outputs24Â x virtual switching outputs via IO-Link |
| Adjustment of the sensitivity | Continuous: 0Â ... 999 |
| Available job banks | 4 |
| MTTFD | 263.7Â years |
Interfaces
| IO-Link | ✔ , IO-Link V1.1.2 |
|---|---|
| VendorID | 26 |
| DeviceID HEX | 80028E |
| DeviceID DEC | 8389262 |
| Digital output | Q1Â ... Q4 |
| Number | 4 |
| Digital input | In1, In2 |
| Number | 2 |
Electronics
| Supply voltage | 10.8Â VÂ DCÂ ... 28.8Â VÂ DCÂ 1) |
|---|---|
| Ripple | ≤ 5 Vpp 2) |
| Current consumption | <Â 120Â mAÂ 3) |
| Switching frequency | 13.8Â kHz |
| Jitter | 18 µs |
| Switching output | Push-pull: PNP/NPN |
| Switching output (voltage) | Push-pull: PNP/NPN HIGH = UV - 3 V/LOW ≤ 3 V |
| Output current Imax. | 100Â mAÂ 4) |
| Input, teach-in (ET) | Teach: UÂ = 10Â VÂ ... < VS |
| Input, blanking input (AT) | Blanked: UÂ = 10Â VÂ ... < Uv |
| Retention time (ET) | 3Â s, non-volatile memory |
| Time delay | None |
| Protection class | III |
| Circuit protection | UV connections, reverse polarity protectedOutput Q short-circuit protectedInterference pulse suppression |
Mechanics
| Housing material | VISTAL® |
|---|---|
| Optics material | PMMA |
| Weight | 94Â g |
Ambient data
| Ambient operating temperature | –20 °C ... +60 °C |
|---|---|
| Ambient temperature, storage | –25 °C ... +75 °C |
| Shock load | According to IECÂ 60068-2-27 (30Â g/11 ms) |
| Enclosure rating | IP67 |
| UL File No. | E181493 |
Connection type/pinouts
| WH 1 | QL1/IN1 |
|---|---|
| BN 2 | + (L+) |
| GN 3 | QL1/C |
| YE 4 | QL2 |
| GY 5 | In2 |
| PK 6 | QL3 |
| BU 7 | - (M) |
| RD 8 | QL4 |
Classifications
| ECLASS 5.0 | 27270907 |
|---|---|
| ECLASS 5.1.4 | 27270907 |
| ECLASS 6.0 | 27270907 |
| ECLASS 6.2 | 27270907 |
| ECLASS 7.0 | 27270907 |
| ECLASS 8.0 | 27270907 |
| ECLASS 8.1 | 27270907 |
| ECLASS 9.0 | 27270907 |
| ECLASS 10.0 | 27270907 |
| ECLASS 11.0 | 27270907 |
| ECLASS 12.0 | 27270907 |
| ETIM 5.0 | EC001817 |
| ETIM 6.0 | EC001817 |
| ETIM 7.0 | EC001817 |
| ETIM 8.0 | EC001817 |
| UNSPSC 16.0901 | 39121528 |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| IO-Link certificate | ✔ |
| Photobiological safety (IEC EN 62471) | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ |
