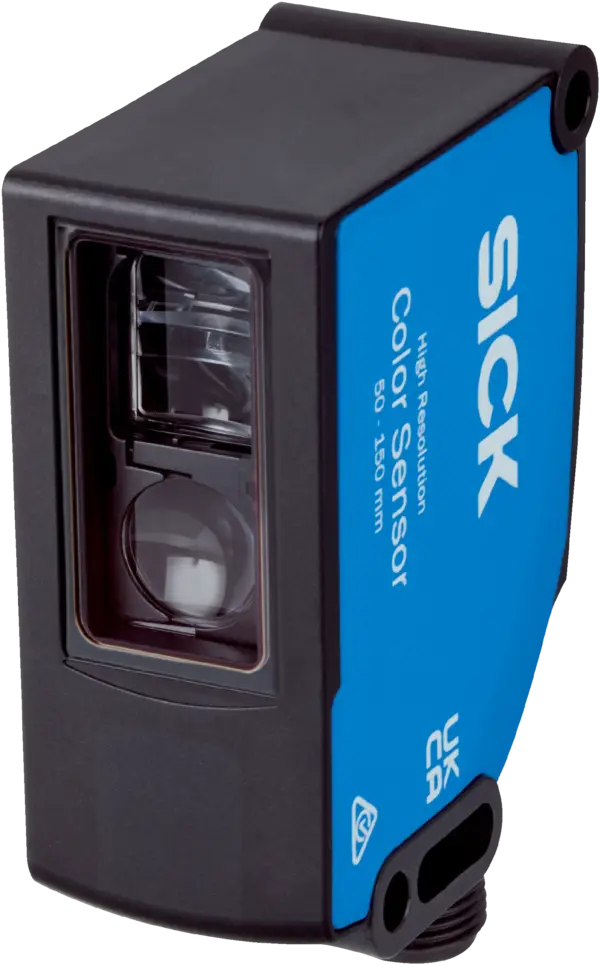

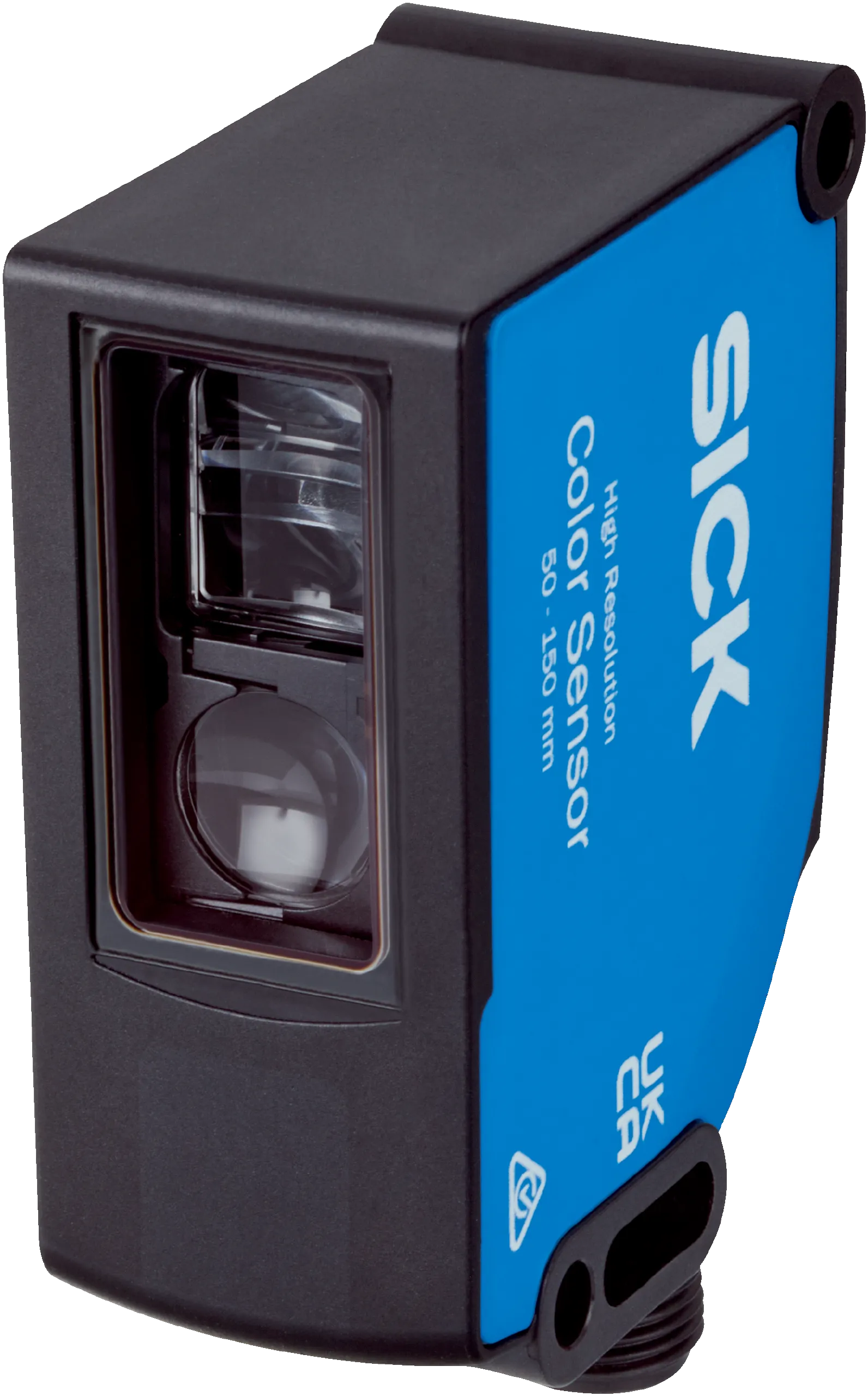

Sick CSS-WBG4C4118AA10Z

Color sensors | CSS High Resolution | CSS-WBG4C4118AA10Z | Light source: LED | Housing design: Small | Communication interface: IO-Link | Sensing distance: 150 mm | Switching output: Push-pull: PNP/NP…

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Color sensors | CSS High Resolution | CSS-WBG4C4118AA10Z | Light source: LED | Housing design: Small | Communication interface: IO-Link | Sensing distance: 150 mm | Switching output: Push-pull: PNP/NPN | Light spot size: Ø 3.5 mm … 6.5 mm | Light spot direction: Round | Light emission: Long side of housing | Connection type Detail: Male connector M12, 8-pin

Specification

Features

Parameter presettingsNone
Housing designSmall
Dimensions (W x H x D)26 mm x 62 mm x 47.5 mm
Light sourceLED, RGBÂ 1)
Light emissionLong side of housing
Light spot sizeØ 3.5 mm ... 6.5 mm 2)
Light spot directionRound
Wave length450Â nm, 550Â nm, 610Â nm
LED risk group marking2
Color modeC (Color)C + I (Color + Illumination)
Sensing distance50 mm ... 150 mm
Teach-in modeSingle value teach-inMulti value teach-in
Output mode4Â colors in standard mode/best fit mode15Â colors in coded mode
Output (channel)4Â x hardware switching outputs24Â x virtual switching outputs via IO-Link
Adjustment of the sensitivityContinuous: 0Â ... 999
Available job banks4
MTTFD179.9Â years

Interfaces

IO-Link✔ , IO-Link V1.1.2
VendorID26
DeviceID HEX80028E
DeviceID DEC8389262
Process data structureByte 0Â ... 3Â = switching output and statusByte 4Â ... 11Â = measured color values and color adjustment values
Digital outputQ1Â ... Q4
Number4
Digital inputIn1, In2
Number2

Electronics

Supply voltage10.8Â VÂ DCÂ ... 28.8Â VÂ DCÂ 1)
Ripple≤ 5 Vpp 2)
Current consumption<Â 150Â mAÂ 3)
Switching frequency4Â kHz
Jitter60 µs
Switching outputPush-pull: PNP/NPN
Switching output (voltage)Push-pull: PNP/NPN HIGH = UV - 3 V/LOW ≤ 3 V
Output current Imax.100Â mAÂ 4)
Input, teach-in (ET)Teach: UÂ = 10Â VÂ ... < VS
Input, blanking input (AT)Blanked: UÂ = 10Â VÂ ... < Uv
Retention time (ET)3Â s, non-volatile memory
Time delayNone
Protection classIII
Circuit protectionUV connections, reverse polarity protectedOutput Q short-circuit protectedInterference pulse suppression

Mechanics

Housing materialVISTAL®
Optics materialGlass
Weight70Â g

Ambient data

Ambient operating temperature–20 °C ... +55 °C
Ambient temperature, storage–25 °C ... +75 °C
Shock loadAccording to IECÂ 60068-2-27 (30Â g/11 ms)
Enclosure ratingIP67
UL File No.E181493

Connection type/pinouts

WH 1QL1/IN1
BN 2+ (L+)
GN 3QL1/C
YE 4QL2
GY 5In2
PK 6QL3
BU 7- (M)
RD 8QL4

Classifications

ECLASS 5.027270907
ECLASS 5.1.427270907
ECLASS 6.027270907
ECLASS 6.227270907
ECLASS 7.027270907
ECLASS 8.027270907
ECLASS 8.127270907
ECLASS 9.027270907
ECLASS 10.027270907
ECLASS 11.027270907
ECLASS 12.027270907
ETIM 5.0EC001817
ETIM 6.0EC001817
ETIM 7.0EC001817
ETIM 8.0EC001817
UNSPSC 16.090139121528

Certificates

EU declaration of conformity✔
UK declaration of conformity✔
ACMA declaration of conformity✔
Moroccan declaration of conformity✔
China RoHS✔
cULus certificate✔
IO-Link certificate✔
Photobiological safety (IEC EN 62471)✔
Information according to Art. 3 of Data Act (Regulation EU 2023/2854)✔
