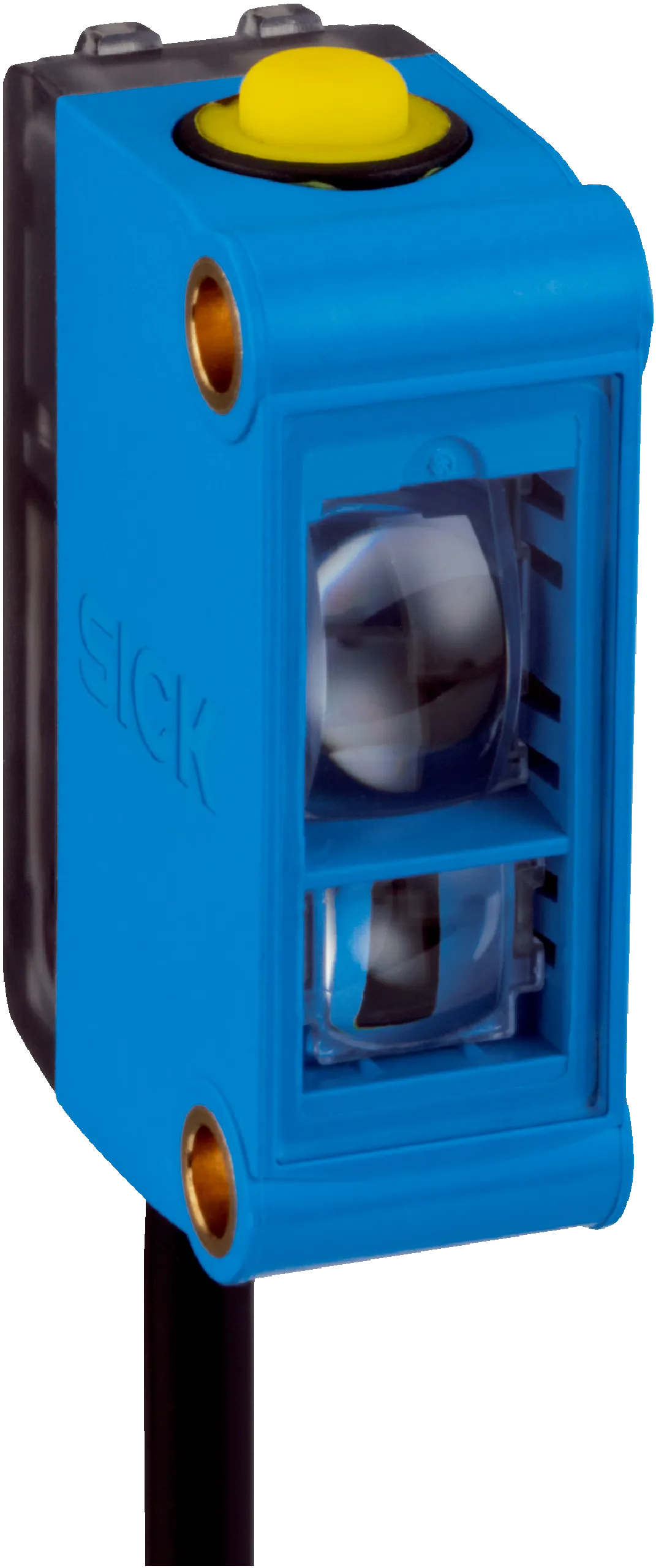

Sick CSM-WN111C4P
Color sensors | CSM | CSM-WN111C4P | Light source: LED | Housing design: Small | Communication interface: – | Sensing distance: 12.5 mm | Switching output: NPN | Light spot size: 1.9 mm x 9.4 mm | Lig…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Color sensors | CSM | CSM-WN111C4P | Light source: LED | Housing design: Small | Communication interface: – | Sensing distance: 12.5 mm | Switching output: NPN | Light spot size: 1.9 mm x 9.4 mm | Light spot direction: Vertical | Light emission: Long side of housing | Connection type Detail: Cable open end, 4-wire | Output (channel): 1Â color | Adjustment: Teach-in button
Specification
Features
| Housing design | Small |
|---|---|
| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Light source | LED, RGBÂ 1) |
| Light emission | Long side of housing |
| Light spot size | 1.9 mm x 9.4 mm |
| Light spot direction | Vertical |
| Wave length | 640Â nm, 525Â nm, 470Â nm |
| Sensing distance | ≤ 12.5 mm |
| Sensing distance tolerance | ± 3 mm |
| Adjustment | Teach-in button |
| Teach-in mode | Teach-in static/dynamicET: Teach-in dynamic |
Electronics
| Supply voltage | 12Â VÂ DCÂ ... 24Â VÂ DCÂ 1) |
|---|---|
| Ripple | < 5 Vpp 2) |
| Current consumption | <Â 50Â mAÂ 3) |
| Switching frequency | 1.7 kHz 4) |
| Jitter | 150 µs |
| Switching output | NPN |
| Switching output (voltage) | NPN: HIGH = approx. UV / LOW ≤ 2 V |
| Switching mode | Light/dark switching |
| Output (channel) | 1Â color |
| Output current Imax. | <Â 100Â mAÂ 5) |
| Input, teach-in (ET) | NPN: Teach: U < 2Â V, Run: UÂ = 10Â VÂ ... < UV or open |
| Time delay | None |
| Protection class | III |
| Circuit protection | UV connections, reverse polarity protectedOutput Q short-circuit protectedInterference pulse suppression |
Mechanics
| Housing material | ABS |
|---|---|
| Optics material | PMMA |
| Weight | Approx. 25 g |
Ambient data
| Ambient operating temperature | –10 °C ... +55 °C |
|---|---|
| Ambient temperature, storage | –20 °C ... +75 °C |
| Shock load | According to IECÂ 60068 |
| Enclosure rating | IP67 |
| UL File No. | NRKH.E348498 & NRKH7.E348498 |
Connection type/pinouts
| Cable material | PVC |
|---|---|
| Cable diameter | Ø 3.4 mm |
| Conductor cross section | 0.15 mm² |
| BN 1 | + (L+) |
| WH 2 | ET |
| BU 3 | - (M) |
| BK 4 | Q |
Classifications
| ECLASS 5.0 | 27270907 |
|---|---|
| ECLASS 5.1.4 | 27270907 |
| ECLASS 6.0 | 27270907 |
| ECLASS 6.2 | 27270907 |
| ECLASS 7.0 | 27270907 |
| ECLASS 8.0 | 27270907 |
| ECLASS 8.1 | 27270907 |
| ECLASS 9.0 | 27270907 |
| ECLASS 10.0 | 27270907 |
| ECLASS 11.0 | 27270907 |
| ECLASS 12.0 | 27270907 |
| ETIM 5.0 | EC001817 |
| ETIM 6.0 | EC001817 |
| ETIM 7.0 | EC001817 |
| ETIM 8.0 | EC001817 |
| UNSPSC 16.0901 | 39121528 |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| Photobiological safety (IEC EN 62471) | ✔ |
