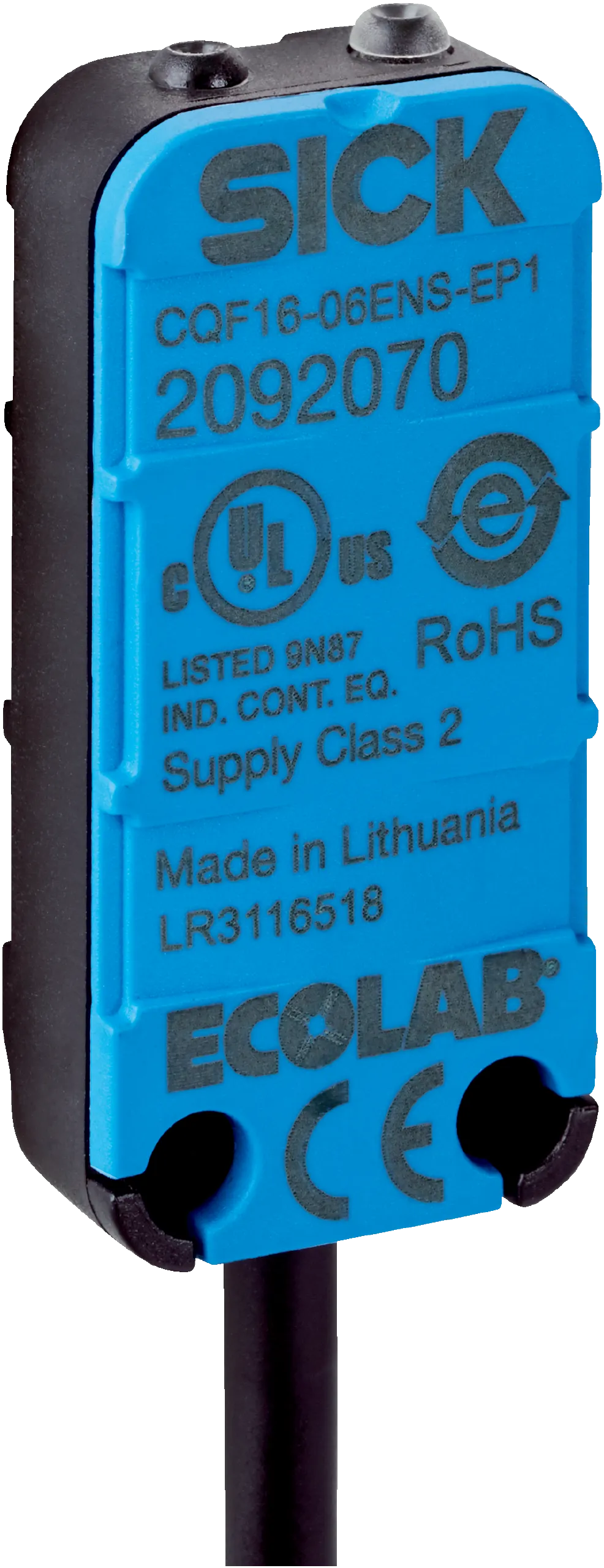

Sick CQF16-06EPSEP1
Capacitive proximity sensors | CQF | CQF16-06EPSEP1 | Sensing range Sn: 0.5 mm … 6 mm | Installation type: Flush, non-flush | Electrical wiring: DC 4-wire | Connection type: Cable with M8 male conne…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Capacitive proximity sensors | CQF | CQF16-06EPSEP1 | Sensing range Sn: 0.5 mm … 6 mm | Installation type: Flush, non-flush | Electrical wiring: DC 4-wire | Connection type: Cable with M8 male connector, 4-pin | Switching output: PNP | Output function: NO
Specification
Features
| Housing | Rectangular |
|---|---|
| Dimensions (W x H x D) | 16 mm x 34 mm x 8 mm |
| Sensing range Sn | 0.5 mm ... 6 mm |
| Installation type | FlushNon-flush |
| Switching frequency | 10Â Hz |
| Connection type | Cable with M8 male connector, 4-pin, 0.3 m 1) |
| Switching output | PNP |
| Switching output detail | PNP |
| Output function | NO |
| Electrical wiring | DC 4-wire |
| Wire/pin | Teach-in (full or empty) |
| Enclosure rating | IP67, IP68, IP69K |
| Special features | Detection of water-based liquids with conductivity up to 50 mS/cm; container diameter: min. 8 mm; container thickness: 0.5 mm ... 6 mm (plastic), 0.5 mm ... 4 mm (glass) |
| Items supplied | Mounting bracket (1x) |
Mechanics/electronics
| Supply voltage | 10Â VÂ ... 30Â V |
|---|---|
| Ripple | â¤Â 10 % |
| Voltage drop | â¤Â 1.5 V DC 1) |
| Current consumption | 13Â mAÂ 2) |
| Time delay before availability | â¤Â 300 ms |
| Temperature drift (of Sr) | ± 20 % |
| EMC | ENÂ 60947-5-2 |
| Continuous current Ia | â¤Â 100 mA |
| Cable material | PVC |
| Conductor size | 0.14 mm² |
| Short-circuit protection | â |
| Power-up pulse protection | â |
| Shock and vibration resistance | 30Â g, 11Â ms / 6Â pos., 6Â neg. per axis, 10Â ... 150Â Hz, 1.0Â mm / 15Â g |
| Ambient operating temperature | â25 °C ... +80 °C |
| Ambient temperature, storage | â40 °C ... +85 °C |
| Housing material | Plastic, PBT |
| Tightening torque, max. | 0.2Â Nm |
| Protection class | III |
| UL File No. | NRKH.E191603 |
Safety-related parameters
| MTTFD | 1,972Â years |
|---|---|
| DCavg | 0Â % |
| TM (mission time) | 20Â years |
Installation note
| Remark | Associated graphic see "Installation" |
|---|---|
| A | â¥Â 10 mm (at factory setting) |
| B | 16Â mm |
| F | â¥Â 25 mm (at factory setting) |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
Classifications
| ECLASS 5.0 | 27270102 |
|---|---|
| ECLASS 5.1.4 | 27270102 |
| ECLASS 6.0 | 27270102 |
| ECLASS 6.2 | 27270102 |
| ECLASS 7.0 | 27270102 |
| ECLASS 8.0 | 27270102 |
| ECLASS 8.1 | 27270102 |
| ECLASS 9.0 | 27270102 |
| ECLASS 10.0 | 27270102 |
| ECLASS 11.0 | 27270102 |
| ECLASS 12.0 | 27274201 |
| ETIM 5.0 | EC002715 |
| ETIM 6.0 | EC002715 |
| ETIM 7.0 | EC002715 |
| ETIM 8.0 | EC002715 |
| UNSPSC 16.0901 | 39122230 |
