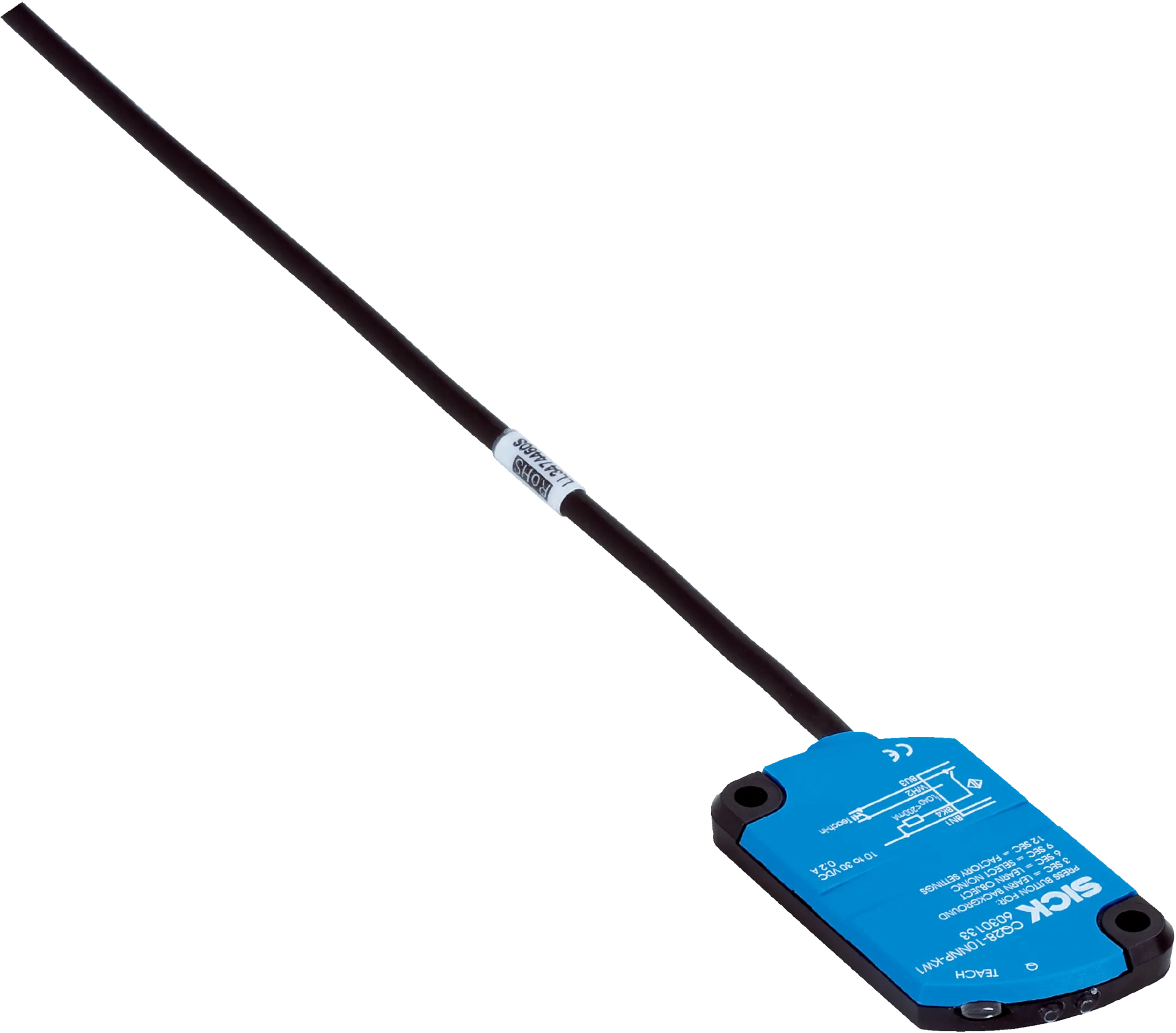

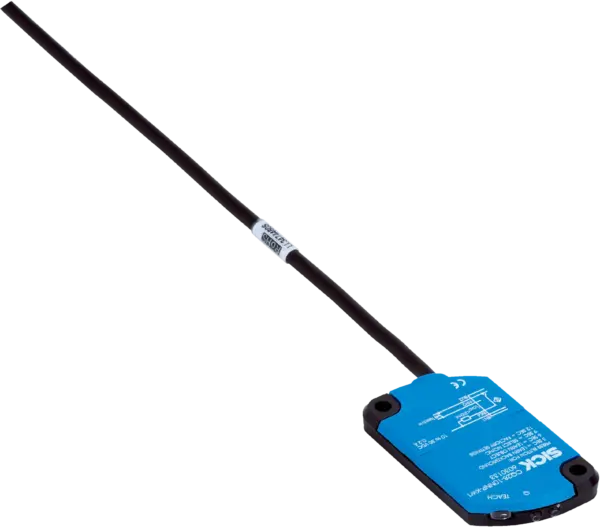

Sick CQ28-10NNP-KW1S01
Capacitive proximity sensors | CQ | CQ28-10NNP-KW1S01 | Sensing range Sn: 1 mm … 10 mm | Installation type: Non-flush | Electrical wiring: DC 3-wire | Connection type: Cable with connector M12, 3-pi…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Capacitive proximity sensors | CQ | CQ28-10NNP-KW1S01 | Sensing range Sn: 1 mm … 10 mm | Installation type: Non-flush | Electrical wiring: DC 3-wire | Connection type: Cable with connector M12, 3-pin | Switching output: NPN | Output function: NC or NO
Specification
Features
| Housing | Rectangular |
|---|---|
| Dimensions (W x H x D) | 28 mm x 46 mm x 5.5 mm |
| Sensing range Sn | 1 mm ... 10 mm |
| Safe sensing range Sa | 7.2Â mm |
| Installation type | Non-flush |
| Switching frequency | 10Â Hz |
| Connection type | Cable with connector M12, 3-pin, 2 m 1) |
| Switching output | NPN |
| Switching output detail | NPN |
| Output function | NCÂ or NO |
| Electrical wiring | DC 3-wire |
| Teach-in button | Sensitivity |
| Enclosure rating | IP68Â 2) |
Mechanics/electronics
| Supply voltage | 10Â VÂ DCÂ ... 30Â VÂ DC |
|---|---|
| Ripple | â¤Â 10 % |
| Voltage drop | â¤Â 2.5 V DC 1) |
| Current consumption | 12Â mAÂ 2) |
| Time delay before availability | â¤Â 300 ms |
| Reproducibility | â¤Â 5 % 3) 4) |
| Temperature drift (of Sr) | ± 10 % |
| EMC | According to ENÂ 60947-5-2Â 5) |
| Continuous current Ia | â¤Â 200 mA |
| Cable material | PUR |
| Conductor size | 0.14 mm² |
| Short-circuit protection | â |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| Ambient operating temperature | â20 °C ... +85 °C |
| Ambient temperature, storage | â40 °C ... +85 °C |
| Housing material | Plastic, PBT |
| Sensing face material | Plastic |
Reduction factors
| Note | The values are reference values which may vary |
|---|---|
| Metal | 1 |
| Water | 1 |
| PVC | Approx. 0.4 |
| Oil | Approx. 0.25 |
| Glass | 0.6 |
| Ceramics | 0.5 |
| Alcohol | 0.7 |
| Wood | 0.2Â ... 0.7 |
Installation note
| Remark | Associated graphic see "Installation" |
|---|---|
| A | 27.6Â mm |
| B | 27.6Â mm |
| F | 6Â x Sn (max. 60Â mm) |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
Classifications
| ECLASS 5.0 | 27270102 |
|---|---|
| ECLASS 5.1.4 | 27270102 |
| ECLASS 6.0 | 27270102 |
| ECLASS 6.2 | 27270102 |
| ECLASS 7.0 | 27270102 |
| ECLASS 8.0 | 27270102 |
| ECLASS 8.1 | 27270102 |
| ECLASS 9.0 | 27270102 |
| ECLASS 10.0 | 27270102 |
| ECLASS 11.0 | 27270102 |
| ECLASS 12.0 | 27274201 |
| ETIM 5.0 | EC002715 |
| ETIM 6.0 | EC002715 |
| ETIM 7.0 | EC002715 |
| ETIM 8.0 | EC002715 |
| UNSPSC 16.0901 | 39122230 |
