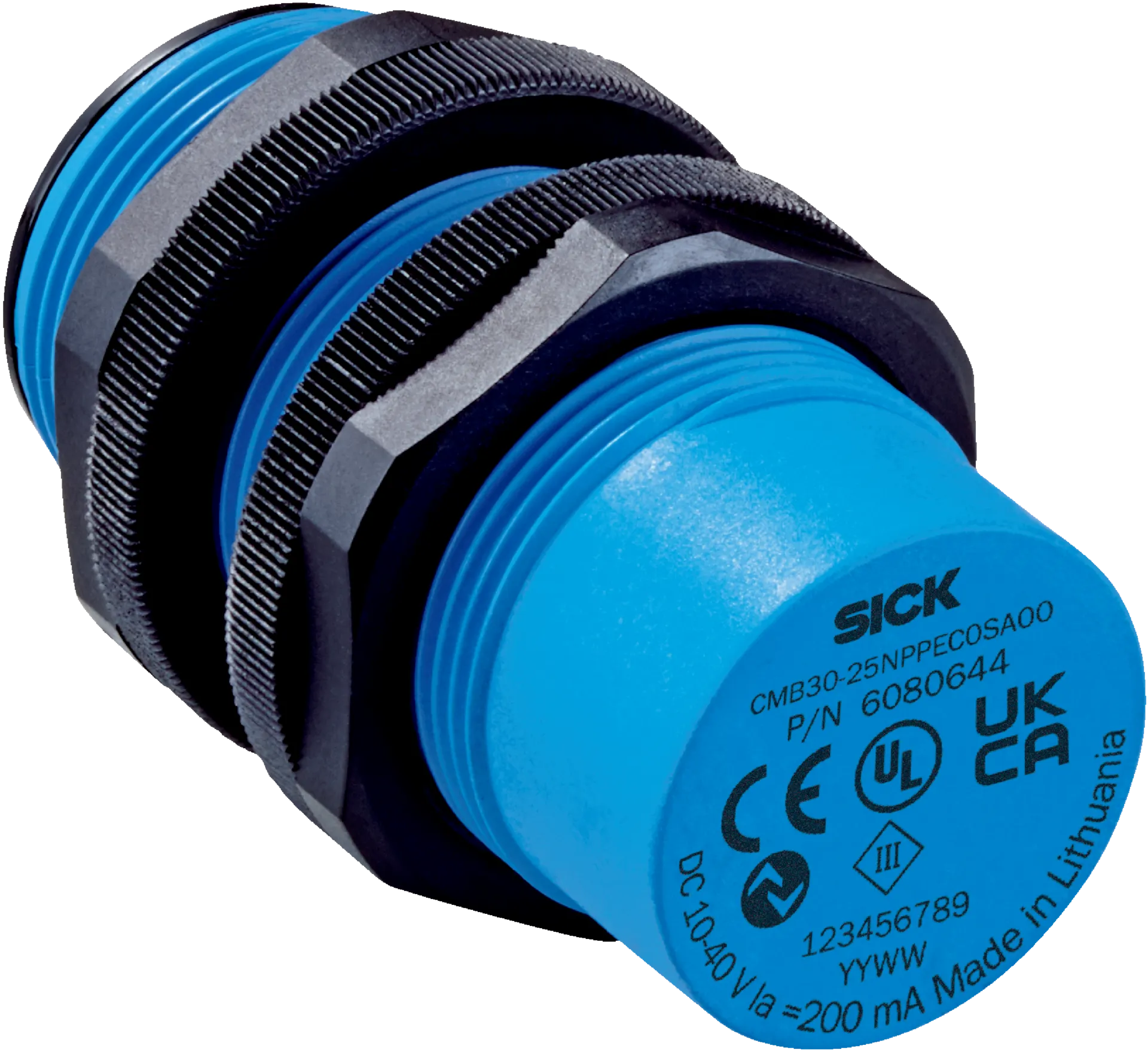

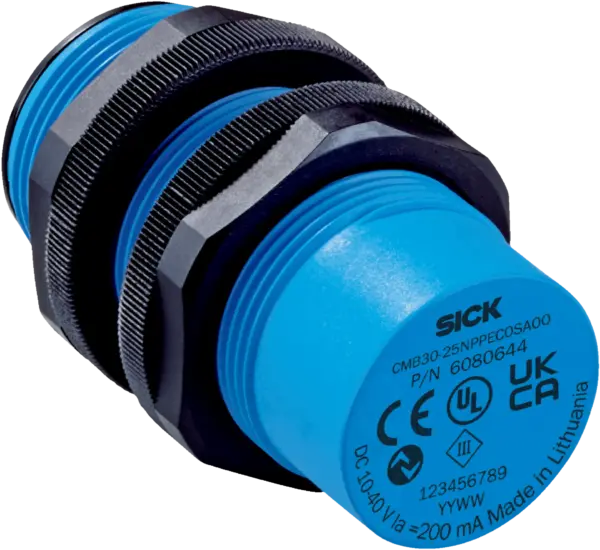

Sick CMB30-25NPPEC0SA00
Capacitive proximity sensors | CMB | CMB30-25NPPEC0SA00 | Sensing range Sn: 0 mm … 25 mm | Installation type: Non-flush | Electrical wiring: DC 4-wire | Connection type: Male connector M12, 4-pin |…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Capacitive proximity sensors | CMB | CMB30-25NPPEC0SA00 | Sensing range Sn: 0 mm … 25 mm | Installation type: Non-flush | Electrical wiring: DC 4-wire | Connection type: Male connector M12, 4-pin | Switching output: PNP | Output function: Complementary | Smart Sensor: Enhanced Sensing, efficient communication, diagnosis, Smart Task base logics
Specification
Features
| Housing | Metric |
|---|---|
| Thread size | M30Â x 1.5 |
| Diameter | ÃÂ 30Â mm |
| Sensing range Sn | 0 mm ... 25 mm |
| Safe sensing range Sa | 19.13 mm 1) |
| Installation type | Non-flush |
| Switching frequency | 50Â Hz |
| Connection type | Male connector M12, 4-pin |
| Switching output | PNP |
| Switching output detail | PNP |
| Output function | Complementary |
| Output characteristic | Wire configurable |
| Electrical wiring | DC 4-wire |
| Potentiometer | Sensitivity (11Â turns) |
| Wire/pin | Sensitivity |
| IO-Link | Sensitivity, sensor parameters and Smart Task functions |
| Enclosure rating | IP67IP68Â 2)IP69K |
| Special features | Visual adjustment indicator |
| Pin 2Â configuration | External input, Teach-in, switching signal |
| Items supplied | Mounting nut, PA12 plastic (2x)Screwdriver for potentiometer adjustment (1Â x) |
Mechanics/electronics
| Supply voltage | 10Â VÂ DCÂ ... 36Â VÂ DC |
|---|---|
| Ripple | â¤Â 10 % 1) |
| Voltage drop | â¤Â 2 V DC 2) |
| Current consumption | â¤Â 20 mA 3) |
| Time delay before availability | â¤Â 300 ms |
| Hysteresis | 3Â %Â ... 20Â % |
| Reproducibility | â¤Â 5 % 4) 5) |
| Temperature drift (of Sr) | ± 10 % |
| EMC | EN 61000-4-2 ESD: > 40 kV CD and ADEN 61000-4-3 Radiated RF: 20 V/mEN 61000-4-4 burst: +/- 4 kV / 5 kHzEN 61000-4-5 Surge: Voltage supply > 2 kV with 500 ohm; switching output > 2 kV with 500 ohmEN 61000-4-6 HF: > 20 VrmsEN 61000-4-8 mains frequency magnetic fields: Permanent > 60 A/m, 75,9 µ tesla; briefly > 600 A/m, 759 µ tesla |
| Continuous current Ia | â¤Â 200 mA |
| Short-circuit protection | â |
| Power-up pulse protection | â |
| Shock and vibration resistance | EN 60068-2-27 shock resistance Ea: 30 g 11 ms; 3 shocks in each direction of the 3 coordinate axesIEC 60068-2-31 drop test: 2 times from 1 m, 100 times from 0.5 mEN 60068-2-6 vibration resistance Fc: 10 Hz ... 150 Hz, 1 mm / 15 g |
| Ambient operating temperature | â30 °C ... +85 °C 6) |
| Ambient temperature, storage | â40 °C ... +85 °C |
| Housing material | Plastic, PBT |
| Housing length | 74Â mm |
| Thread length | 45.5Â mm |
| Tightening torque, max. | â¤Â 7.5 Nm |
| UL File No. | NRKH.E191603 |
Safety-related parameters
| MTTFD | 786Â years |
|---|---|
| DCavg | 0% |
| TM (mission time) | 20Â years |
Communication interface
| Communication interface | IO-Link V1.1 |
|---|---|
| Communication Interface detail | COM2 (38,4Â kBaud) |
| Cycle time | >Â 5Â ms |
| Process data length | 4Â Byte |
| Process data structure | Bit 0Â = switching signal QL1Bit 1Â = switching signal QL2Bit 2Â = Sensor switching channel Qint1Bit 3Â = Sensor switching channel Qint2Bit 4Â = Contamination alarm for switching channel Qint1Bit 5Â = Contamination channel for Qint2Bit 6Â = Temperature alarmBit 7Â = Short-circuitBit 16Â ... 31Â = Analog value (digit value, not linearized) |
Reduction factors
| Note | The values are reference values which may vary |
|---|---|
| Metal | 1 |
| Water | 1 |
| PVC | Approx. 0.4 |
| Oil | Approx. 0.25 |
| Glass | 0.6 |
| Ceramics | 0.5 |
| Alcohol | 0.7 |
| Wood | 0.2Â ... 0.7 |
Installation note
| Remark | Associated graphic see "Installation" |
|---|---|
| A | 30Â mm |
| B | 60Â mm |
| C | 30Â mm |
| D | 75Â mm |
| E | 14.5Â mmIn critical distances, the sensor should be tested in the application |
| F | 75Â mm |
Smart Task
| Smart Task name | Base logics |
|---|---|
| Logic function | DirectANDORWindowHysteresis |
| Timer function | DeactivatedSwitch-on delayOff delayON and OFF delayImpulse (one shot) |
| Inverter | Yes |
| Switching signal QL1 | Switching output |
| Switching signal QL2 | Switching output |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| China RoHS | â |
| ECOLAB certificate | â |
| cULus certificate | â |
| IO-Link certificate | â |
Classifications
| ECLASS 5.0 | 27270102 |
|---|---|
| ECLASS 5.1.4 | 27270102 |
| ECLASS 6.0 | 27270102 |
| ECLASS 6.2 | 27270102 |
| ECLASS 7.0 | 27270102 |
| ECLASS 8.0 | 27270102 |
| ECLASS 8.1 | 27270102 |
| ECLASS 9.0 | 27270102 |
| ECLASS 10.0 | 27270102 |
| ECLASS 11.0 | 27270102 |
| ECLASS 12.0 | 27274201 |
| ETIM 5.0 | EC002715 |
| ETIM 6.0 | EC002715 |
| ETIM 7.0 | EC002715 |
| ETIM 8.0 | EC002715 |
| UNSPSC 16.0901 | 39122230 |
