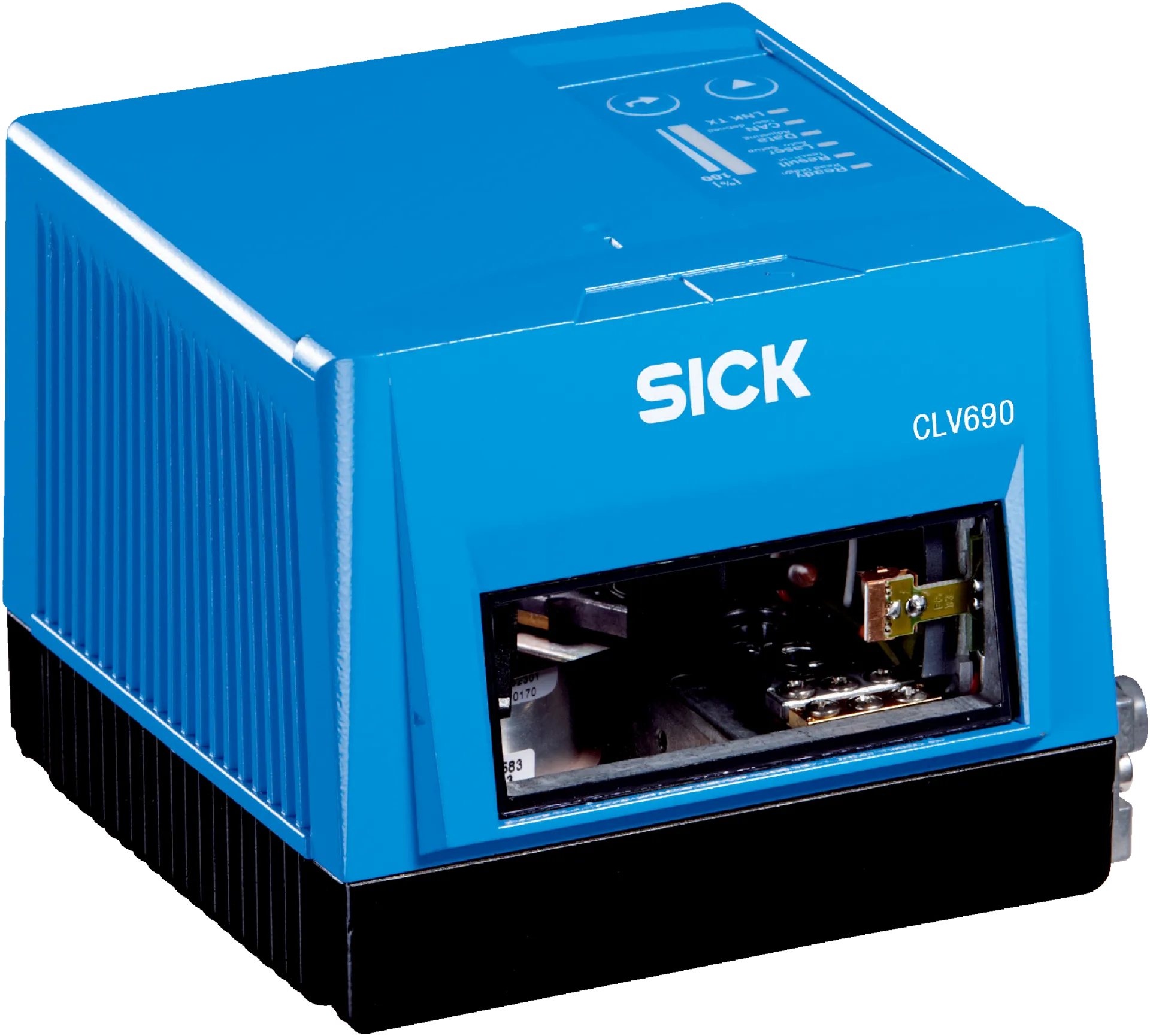

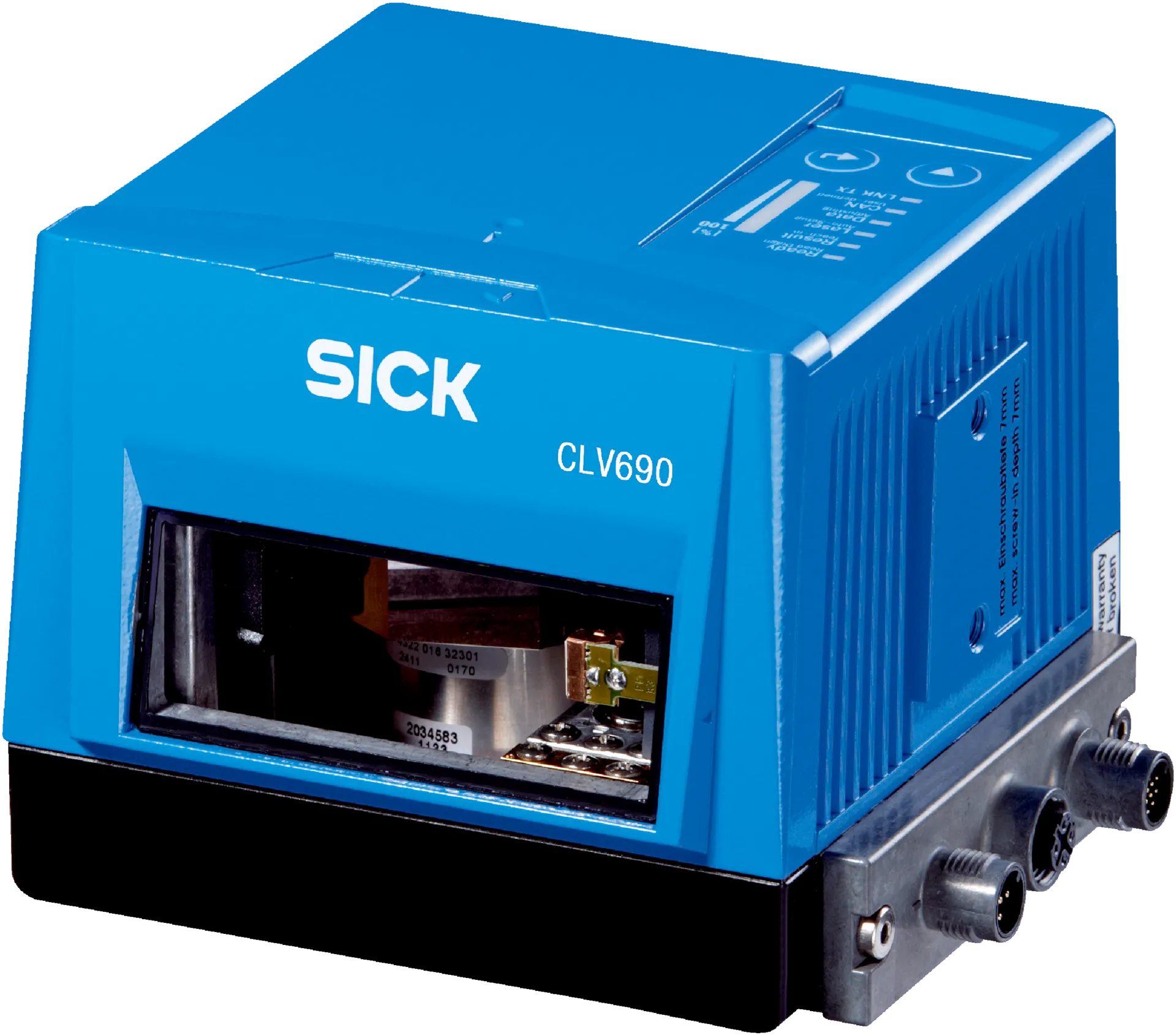

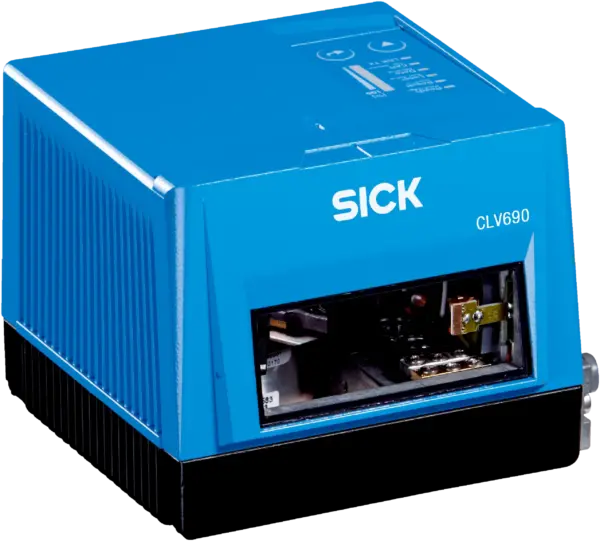

Sick CLV690-0001
Fixed mount barcode scanners | CLV69x | CLV690-0001 | Optical focus: Auto focus | Communication interface: Ethernet, PROFINET, EtherNet/IP™, Serial, CAN, PROFIBUS DP | Type: Cloning plug | Max. readin…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Fixed mount barcode scanners | CLV69x | CLV690-0001 | Optical focus: Auto focus | Communication interface: Ethernet, PROFINET, EtherNet/IP™, Serial, CAN, PROFIBUS DP | Type: Cloning plug | Max. reading distance: 2,100 mm | Code resolution: 0.3 mm … 1 mm | Code printing process: Label (printed codes) | Sensor type: Line scanner | Window material: Glass | Cold storage applications: yes | Enclosure rating: IP65
Specification
Features
| Version | Standard Density |
|---|---|
| Connection type | Depending on the cloning plug used |
| Reading field | Front |
| Sensor type | Line scanner |
| Optical focus | Auto focus (alternative: dynamic focus control) |
| No. of distance configurations | ≤ 8 |
| Focus adjustment time | ≤ 20 ms |
| Focus trigger source | Data interface / Digital inputs |
| Light source | Light spot, laser, Visible, Red, 660Ă‚ nm |
| Laser class | 2, complies with 21 CFR 1040.10 except for the conformance according to “Laser Notice No. 56” from May 8, 2019 (EN 60825-1:2014+A11:2021, IEC 60825-1:2014) |
| Aperture angle | ≤ 60° |
| Reading distance | 500 mm ... 2,100 mm 1) |
| Scanning frequency | 400 Hz ... 1,200 Hz |
| Code resolution | 0.3 mm ... 1 mm |
| Heating | ✔ |
| Front screen heating | ✔ |
| Cold storage applications | ✔ |
Mechanics/electronics
| Connection type | Depending on the cloning plug used |
|---|---|
| Supply voltage | 21.6Ă‚ VĂ‚ DCĂ‚ ... 28.8Ă‚ VĂ‚ DC |
| Power consumption | 78Ă‚ W |
| Housing material | Aluminum die cast |
| Housing color | Light blue (RAL 5012) |
| Window material | Glass |
| Enclosure rating | IP65 (ENĂ‚ 60529/A1 (2002-02)) |
| Weight | 1,500Ă‚ g |
| Dimensions (L x W x H) | 117 mm x 117 mm x 94 mm |
| MTBF | 100,000Ă‚ h |
| MTTF | 40,000Ă‚ h (Laser diode)Ă‚ 1) |
Performance
| Readable code structures | 1D codes |
|---|---|
| Bar code types | Interleaved 2 of 5, all current code types, Codabar, Code 128, Code 39, Code 93, GS1-128 / EAN 128, UPC / GTIN / EAN |
| Code printing process | Label (printed codes) |
| Print ratio | 2:1Ă‚ ... 3:1 |
| No. of codes per scan | 1Ă‚ ... 20Ă‚ (Standard decoder)1Ă‚ ... 6Ă‚ (SMART decoder) |
| No. of codes per reading interval | 1Ă‚ ... 50Ă‚ (auto-discriminating) |
| No. of characters per reading interval | 5,000 |
| No. of multiple readings | 1Ă‚ ... 100 |
Interfaces
| Ethernet | ✔ , TCP/IP |
|---|---|
| Remark | Only with cloning plug I/O, CAN IN/OUT or CAN Redundant |
| Function | Data interface (read result output), Service interface |
| Data transmission rate | 10/100Ă‚ MBit/s |
| PROFINET | ✔ |
| Type of fieldbus integration | Optional over external fieldbus module CDF600-2 |
| Remark | Only with cloning plug I/O, CAN IN/OUT or CAN Redundant |
| Function | PROFINET Single Port, PROFINET Dual Port |
| EtherNet/IP™ | ✔ |
| Remark | Only with cloning plug I/O, CAN IN/OUT or CAN Redundant |
| Data transmission rate | 10/100Ă‚ MBit/s |
| Serial | ✔ , RS-232, RS-422, RS-485 |
| Remark | Only with cloning plug D-Sub and Ethernet |
| Function | Data interface (read result output), AUX (only RS-232) |
| Data transmission rate | 0.3 kBaud ... 115.2 kBaud, AUX: 57.6 kBaud (RS-232) |
| CAN | ✔ |
| Function | SICK CAN sensor network CSN (CAN controller/CAN device, multiplexer/server) |
| Data transmission rate | 20 kbit/s ... 1 Mbit/s |
| PROFIBUS DP | ✔ |
| Type of fieldbus integration | Optional over external fieldbus module CDF600-2 |
| Digital inputs | 6 (“Sensor 1” ... “Sensor 6”) |
| Digital outputs | 4 (“Result 1” ... “Result 4”) |
| Reading pulse | Digital inputs, serial interface, auto pulse, CAN |
| Optical indicators | 6Ă‚ LEDs (Ready, Result, laser, Data, CAN, LNK TX, Bar graph for displaying the reading rate percentage (10Ă‚ LEDs)) |
| Control elements | 2Ă‚ buttons |
| Parameter storage | Integrated in cloning plug |
| Configuration software | SOPAS ET |
Ambient data
| Electromagnetic compatibility (EMC) | ENĂ‚ 61000-6-4 (2007-01) + A1 (2011) / ENĂ‚ 61000-6-2:2005-08 |
|---|---|
| Vibration resistance | ENĂ‚ 60068-2-6:2008-02 |
| Shock resistance | ENĂ‚ 60068-2-27:2009-05 |
| Ambient operating temperature | –35 °C ... +35 °C |
| Storage temperature | –20 °C ... +70 °C |
| Permissible relative humidity | 90Ă‚ %, Non-condensing |
| Ambient light immunity | 2,000Ă‚ lx, on barcode |
| Bar code print contrast (PCS) | ≥ 60 % |
Classifications
| ECLASS 5.0 | 27280102 |
|---|---|
| ECLASS 5.1.4 | 27280102 |
| ECLASS 6.0 | 27280102 |
| ECLASS 6.2 | 27280102 |
| ECLASS 7.0 | 27280102 |
| ECLASS 8.0 | 27280102 |
| ECLASS 8.1 | 27280102 |
| ECLASS 9.0 | 27280102 |
| ECLASS 10.0 | 27280102 |
| ECLASS 11.0 | 27280102 |
| ECLASS 12.0 | 27280102 |
| ETIM 5.0 | EC002550 |
| ETIM 6.0 | EC002550 |
| ETIM 7.0 | EC002550 |
| ETIM 8.0 | EC002550 |
| UNSPSC 16.0901 | 43211701 |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| Profinet certificate | ✔ |
| Laser safety (IEC 60825-1) declaration of manufacturer | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ |
| 4Dpro | ✔ |
